Wastewater/Activity/PacpInspection/1.0Jun 29, 2018, 05:32 AM
18 0502_18 0501 _28062018_224553.mp4
- Date
- 06/28/2018
- W/O
- 712433
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00705
- PipeID
- P14356
- Time
- 10:32 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5761
- Sewer Name
- 18 SOUTH PLANT OUTFALL TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_712433_TV18180_JUL2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 18 0502
- Downstream MH
- 18 0501
- Dir. of Survey
- Downstream
- Length Surveyed
- 407.6 ft.
- Total Length
- 407.6 ft.
- Structural Index
- 3
- Structural Quick
- 3B23
- Structural Rating
- 48
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 48
Observation photos (5)

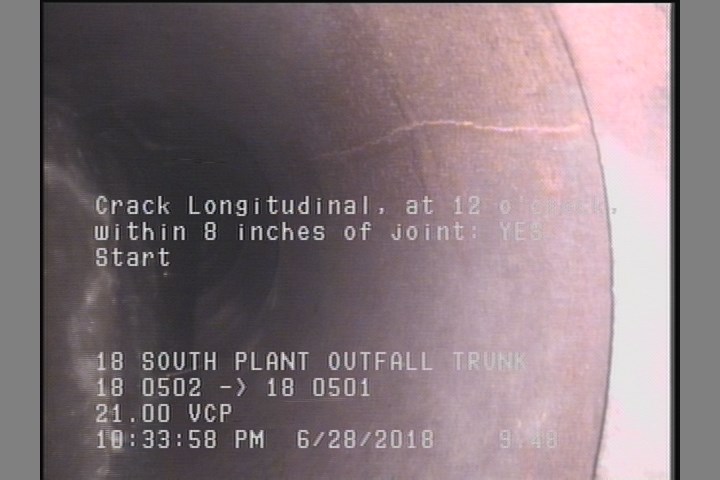

9.5 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

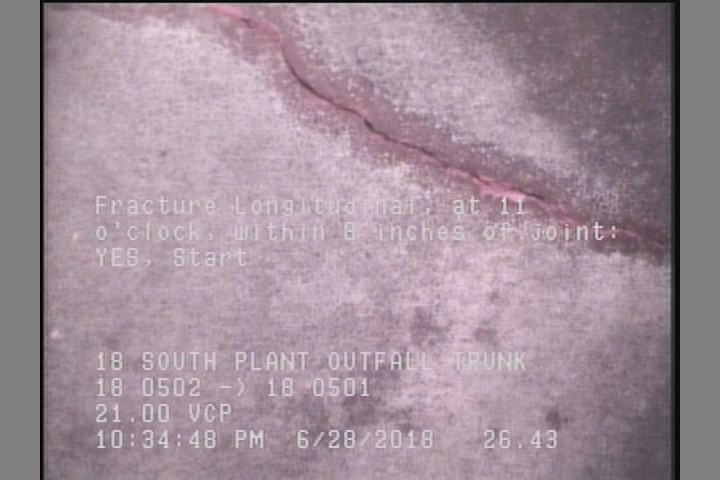

26.4 ft. - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES, Start

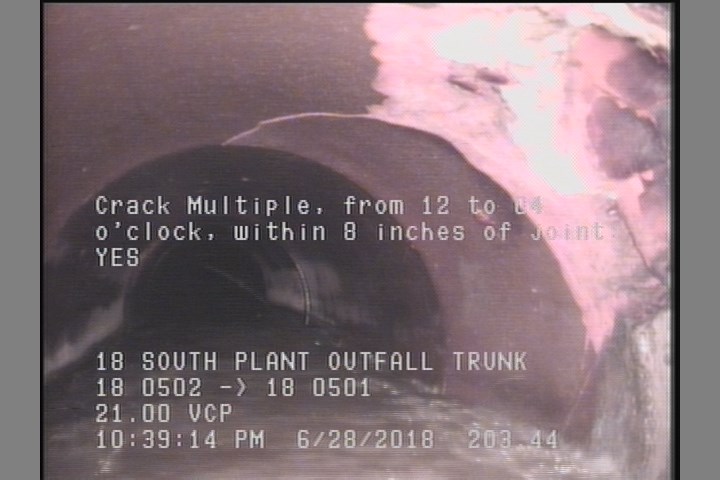

203.4 ft. - Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES

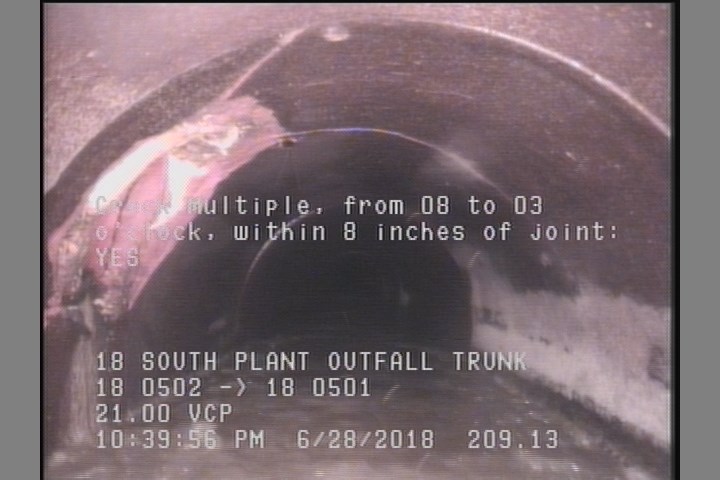

209.1 ft. - Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES

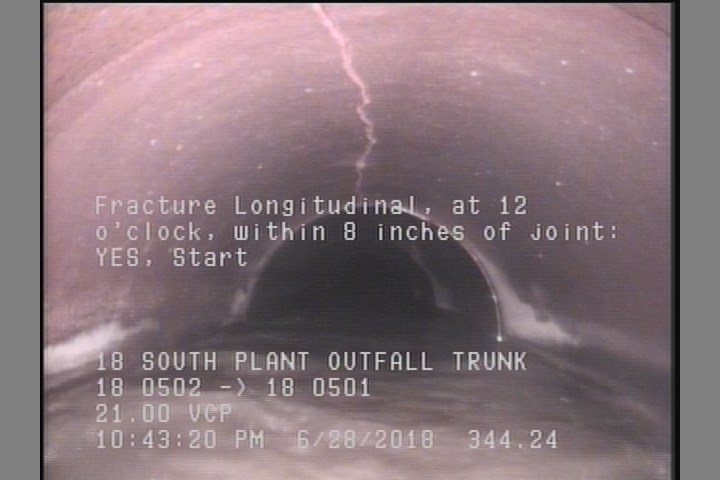

344.2 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 203.4 | CM | — |
| 0 | MWM | — |
| 26.4 | FL | — |
| 0 | AMH | 18 0502 |
| 407.6 | AMH | 18 0501 |
| 40.7 | FL | — |
| 204.5 | TB | — |
| 344.2 | FL | — |
| 9.5 | CL | — |
| 209.1 | CM | — |
| 0 | MGO | CAPPED LATERAL 9 O'CLOCK @ MH |
| 211.5 | TB | — |
| 26.4 | CL | — |
| 0 | MWL | — |
| 387.5 | FL | — |
| 407.6 | MGO | CONNECTION AT MH 9 O'CLOCK |
Properties (4)
- additional_info
- SC359670
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-06-28T22:32:14-07:00
