Wastewater/Activity/PacpInspection/1.0Jul 3, 2018, 07:06 AM
32 0019_32 0018 _03072018_001028.mp4
- Date
- 07/03/2018
- W/O
- 712174
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00886
- PipeID
- P22178
- Time
- 12:06 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5858
- Sewer Name
- 32 CASTAIC TRUNK
- City
- CASTAIC
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_712174_TV32055_JUL2018
- Sewer Type
- Siphon
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 32 0019
- Downstream MH
- 32 0018
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

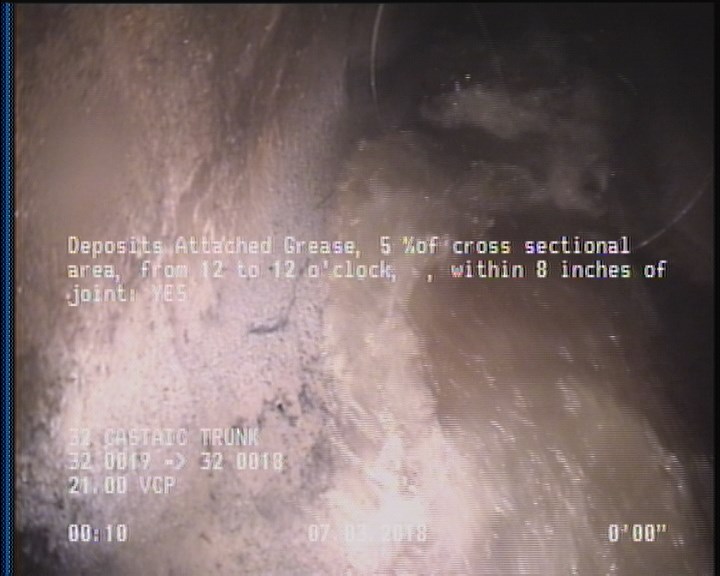

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 12 to 12 o'clock, , within 8 inches of joint: YES

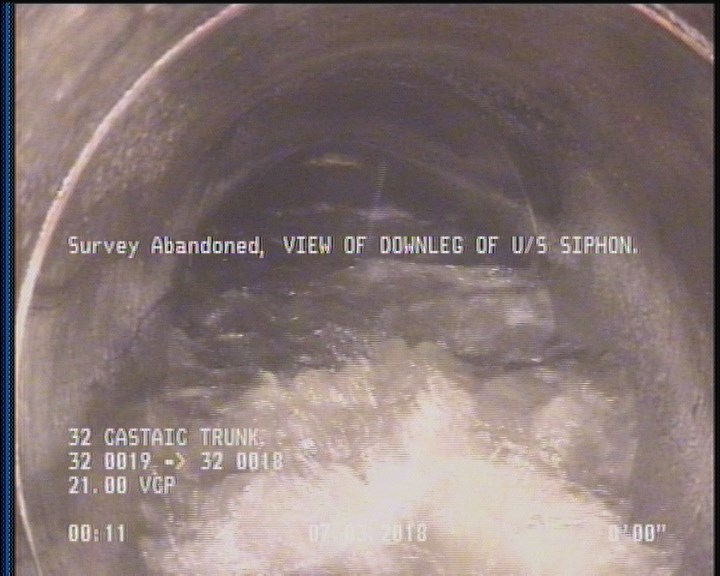

2 ft. - Survey Abandoned - VIEW OF DOWNLEG OF U/S SOUTHWEST SIPHON.
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 2 | MSA | VIEW OF DOWNLEG OF U/S SOUTHWEST SIPHON. |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | AMH | 32 0019, SOUTHWEST SIPHON |
Properties (4)
- additional_info
- SC359725
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-07-03T00:06:54-07:00
