Wastewater/Activity/PacpInspection/1.0Jun 27, 2018, 10:57 AM
02 1546_02 1545B_27062018_040356.mp4
- Date
- 06/27/2018
- W/O
- 712111
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00230
- PipeID
- P03977
- Time
- 3:57 AM
- Certificate
- U-715-0700770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5204
- Sewer Name
- 02 ARIZONA AVENUE TRUNK, SECTION 1
- City
- EAST LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_712111_TV02006_JUL2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 1546
- Downstream MH
- 02 1545B
- Dir. of Survey
- Downstream
- Length Surveyed
- 78.7 ft.
- Total Length
- 78.7 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 3
- O&M Quick
- 3121
- O&M Rating
- 5
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

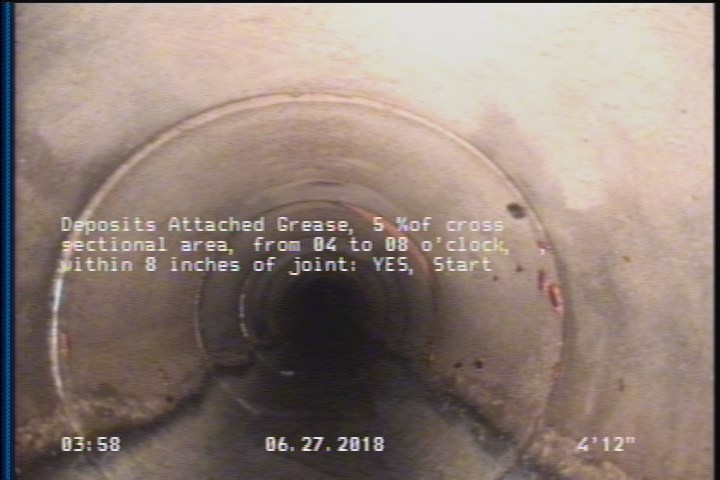

5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

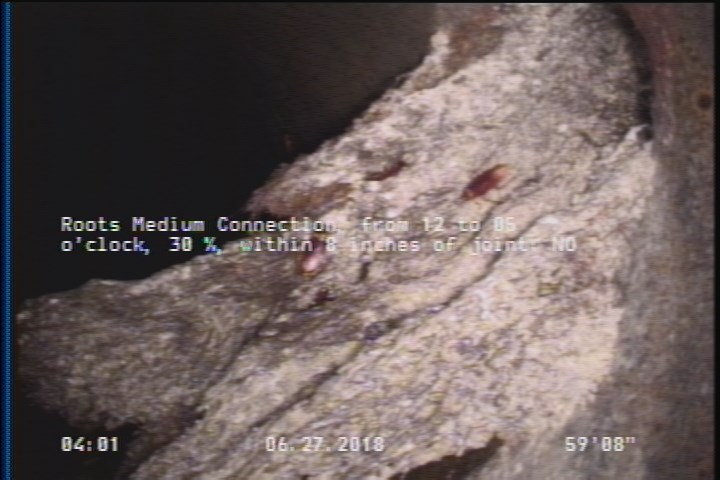

59.7 ft. - Roots Medium Connection, from 12 to 05 o'clock, 30 %, within 8 inches of joint: NO

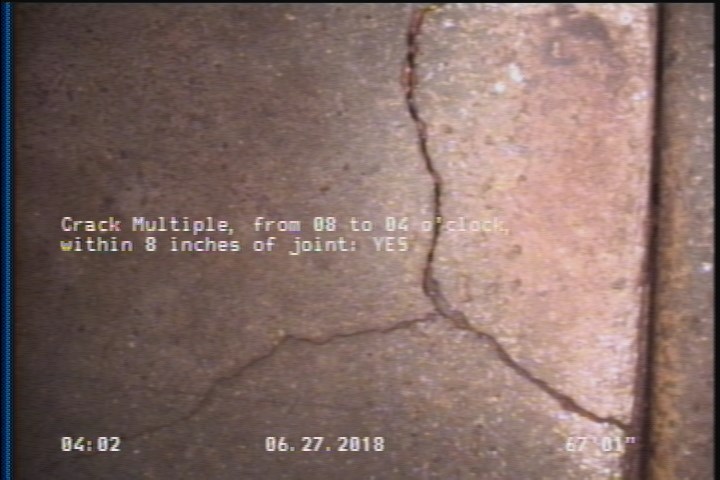

67.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 02 1546 |
| 10.5 | TB | — |
| 0 | MWM | — |
| 78.4 | MGO | SERVICE CONNECTION AT 9 O'CLOCK AT MH |
| 5 | DAGS | — |
| 67.1 | CM | — |
| 78.7 | AMH | 02 1545B |
| 59.7 | RMC | — |
| 0 | MWL | — |
| 75.9 | DAGS | — |
| 59.8 | TB | — |
Properties (4)
- additional_info
- SC359529
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-06-27T03:57:21-07:00
