Wastewater/Activity/PacpInspection/1.0Jun 8, 2018, 06:21 AM
18 0889_18 0888 _05072018_135037.mp4
- Date
- 06/07/2018
- W/O
- 707024
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00709
- PipeID
- P14740
- Time
- 11:21 PM
- Certificate
- U-0817-07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5644
- Sewer Name
- 18 SO WHITTIER OUTFALL RLF TR, SECTS 1,2A,2B,2C,&3
- City
- WHITTIER, CA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 26
- Purpose
- Routine Assessment
- Project
- WO_707024_TV18101_JUN2018
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 18 0889
- Downstream MH
- 18 0888
- Dir. of Survey
- Downstream
- Length Surveyed
- 19 ft.
- Total Length
- 19 ft.
- Structural Index
- 5
- Structural Quick
- 5241
- Structural Rating
- 14
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (4)

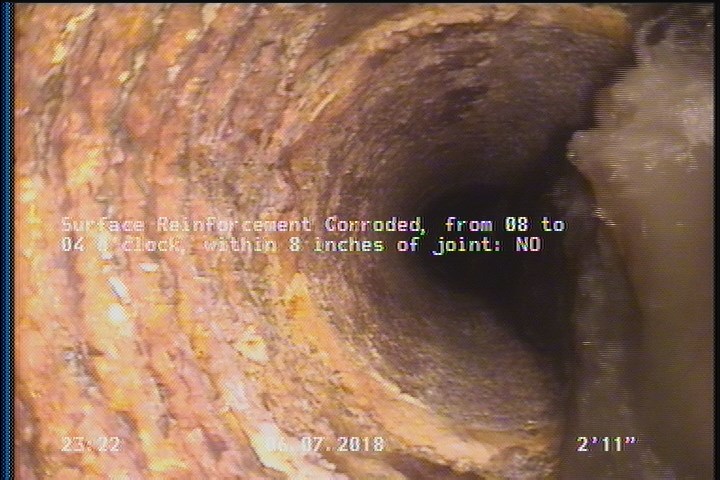

2.9 ft. - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: NO

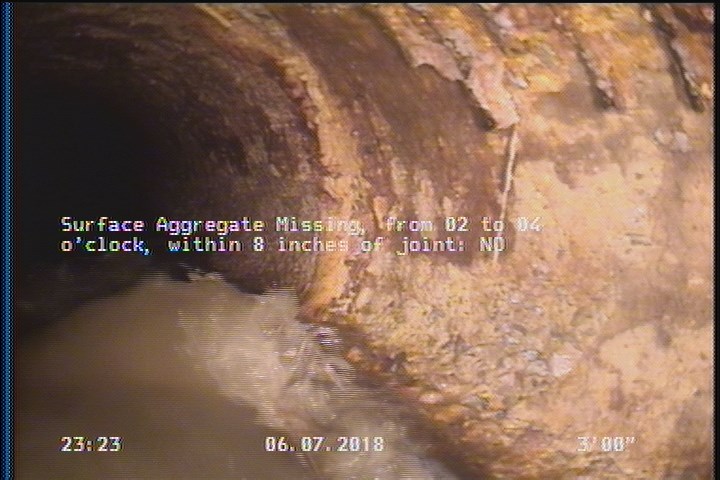

3 ft. - Surface Aggregate Missing, from 02 to 04 o'clock, within 8 inches of joint: NO
5.4 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

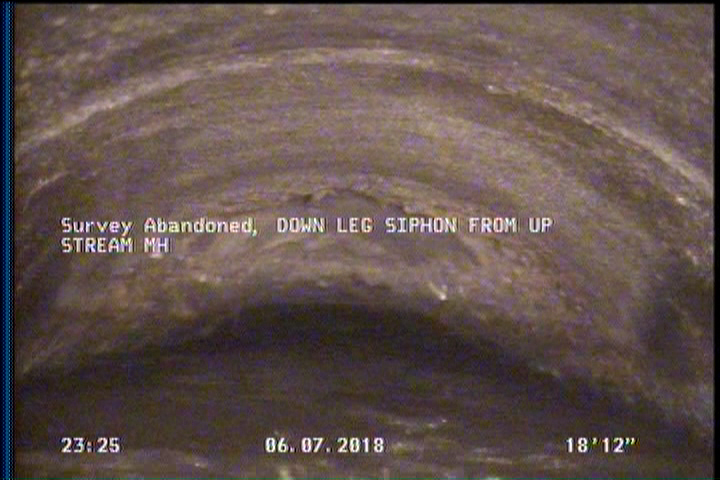

19 ft. - Survey Abandoned - DOWN LEG SIPHON FROM UP STREAM MH
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | AMH | 18 0889 |
| 19 | SRV | — |
| 0 | MWM | — |
| 3 | SAM | — |
| 19 | MSA | DOWN LEG SIPHON FROM UP STREAM MH |
| 2.9 | SRC | — |
| 5.4 | SRV | — |
Properties (4)
- additional_info
- SC359199
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-06-07T23:21:58-07:00
