Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 8, 2018, 06:53 AM

  • 18 0888_18 0887 _03072018_165352.mp4

Date
06/07/2018
W/O
707024
Weather
Dry
Operator/Surveyor
K. ADAME
Sewer ID
Z00709
PipeID
P14739
Time
11:53 PM
Certificate
U-0817-07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5644
Sewer Name
18 SO WHITTIER OUTFALL RLF TR, SECTS 1,2A,2B,2C,&3
City
WHITTIER, CA
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
26
Purpose
Routine Assessment
Project
WO_707024_TV18101_JUN2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
18 0888
Downstream MH
18 0887
Dir. of Survey
Downstream
Length Surveyed
765.8 ft.
Total Length
765.8 ft.
Structural Index
4
Structural Quick
5432
Structural Rating
26
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
26
Pipe schematic from manhole 18 0888 to 18 0887
MH: 18 0888MH: 18 0887downstream-0.1 ft. MWL - Water Level, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 08880 ft. MWM - Water Mark, 35 %of cross sectional area7.1 ft. MGO - General Observation - MAGNESIUM COATING START7.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start23.4 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish23.6 ft. SRC - Surface Reinforcement Corroded, from 08 to 09 o'clock, within 8 inches of joint: NO, Start23.7 ft. SRC - Surface Reinforcement Corroded, from 03 to 04 o'clock, within 8 inches of joint: NO, Start365.2 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 8"483.1 ft. SRC - Surface Reinforcement Corroded, from 08 to 09 o'clock, within 8 inches of joint: NO, Finish483.1 ft. SRC - Surface Reinforcement Corroded, from 03 to 04 o'clock, within 8 inches of joint: NO, Finish483.2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start499 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish499.1 ft. SRC - Surface Reinforcement Corroded, from 07 to 08 o'clock, within 8 inches of joint: NO, Start499.1 ft. SRC - Surface Reinforcement Corroded, from 04 to 05 o'clock, within 8 inches of joint: NO, Start527.3 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"763.4 ft. SRC - Surface Reinforcement Corroded, from 04 to 05 o'clock, within 8 inches of joint: NO, Finish763.5 ft. SRC - Surface Reinforcement Corroded, from 07 to 08 o'clock, within 8 inches of joint: NO, Finish763.6 ft. MGO - General Observation - MAGNESIUM COATING END765.7 ft. AMH - Downstream Manhole, Survey Ends - 18 0887

Observation photos (6)

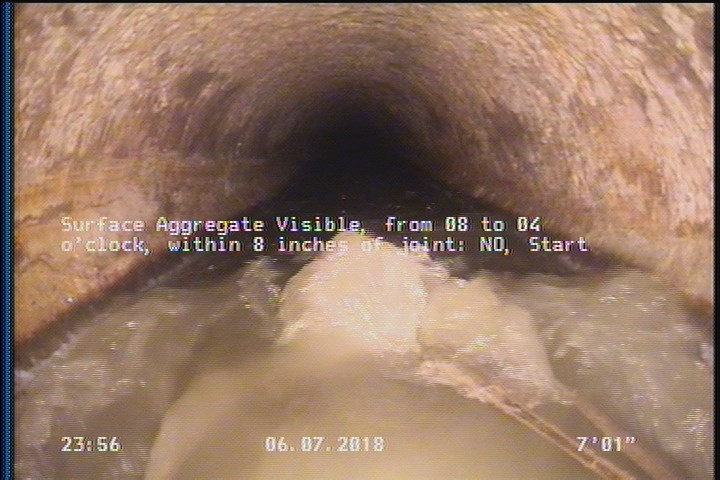

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    7.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

  • Surface Reinforcement Corroded, from 08 to 09 o'clock, within 8 inches of joint: NO, Start

    23.6 ft. - Surface Reinforcement Corroded, from 08 to 09 o'clock, within 8 inches of joint: NO, Start

  • Surface Reinforcement Corroded, from 03 to 04 o'clock, within 8 inches of joint: NO, Start

    23.7 ft. - Surface Reinforcement Corroded, from 03 to 04 o'clock, within 8 inches of joint: NO, Start

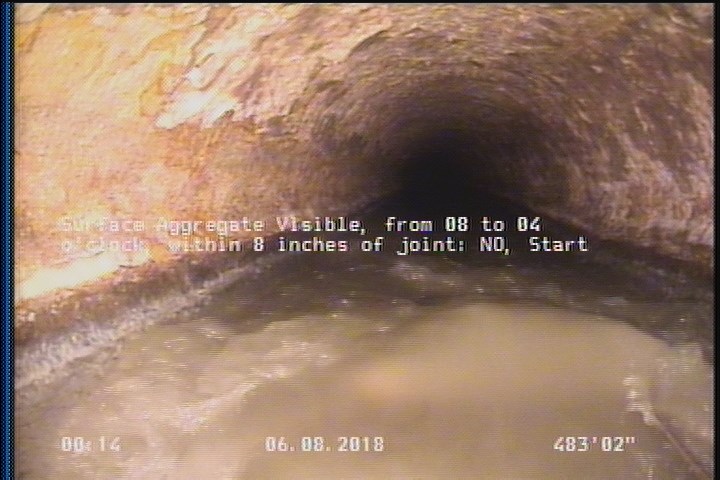

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    483.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

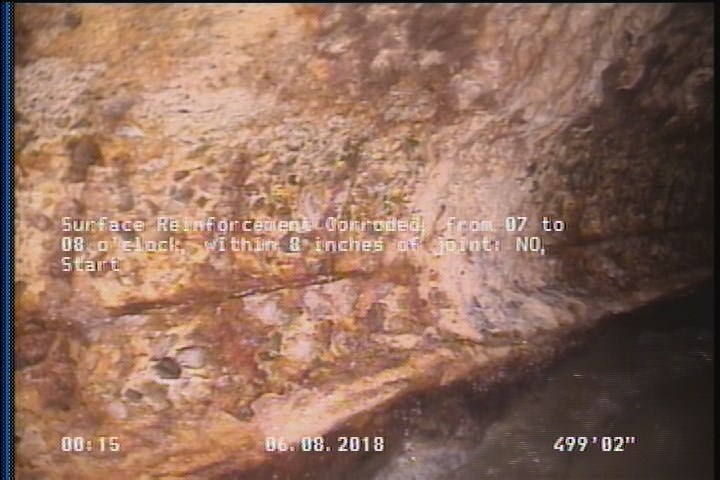

  • Surface Reinforcement Corroded, from 07 to 08 o'clock, within 8 inches of joint: NO, Start

    499.1 ft. - Surface Reinforcement Corroded, from 07 to 08 o'clock, within 8 inches of joint: NO, Start

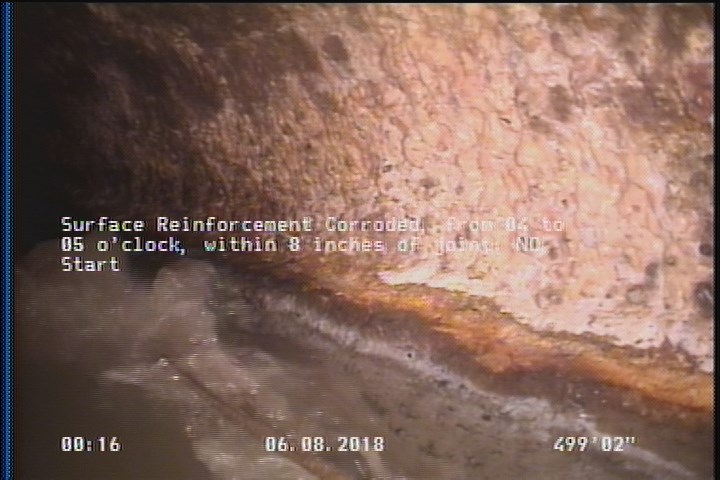

  • Surface Reinforcement Corroded, from 04 to 05 o'clock, within 8 inches of joint: NO, Start

    499.1 ft. - Surface Reinforcement Corroded, from 04 to 05 o'clock, within 8 inches of joint: NO, Start

All inspections of P14739Work order 707024

Observations (20)

DistanceCodeObservation
483.2SAV—
-0.1MWL—
763.4SRC—
763.5SRC—
0AMH18 0888
483.1SRC—
0MWM—
499.1SRC—
499.1SRC—
499SAV—
763.6MGOMAGNESIUM COATING END
483.1SRC—
527.3TB—
23.6SRC—
7.1MGOMAGNESIUM COATING START
365.2TB—
23.4SAV—
765.7AMH18 0887
7.1SAV—
23.7SRC—
