  • 22 0774_22 0773 _11062018310_012457.mp4

Date
11/06/2018
W/O
735155
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00822
PipeID
P17135
Time
1:25 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6197
Sewer Name
22 PUDDINGSTONE TRUNK, SECTION 3
City
SAN DIMAS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
23
Purpose
Routine Assessment
Project
WO_735155_TV22096_NOV2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
22 0773
Downstream MH
22 0774
Dir. of Survey
Upstream
Length Surveyed
298.7 ft.
Total Length
298.7 ft.
Structural Index
3
Structural Quick
3K00
Structural Rating
177
O&M Index
2
O&M Quick
2K00
O&M Rating
118
Overall Index
3
Overall Quick
—
Overall Rating
295
Pipe schematic from manhole 22 0773 to 22 0774
MH: 22 0773MH: 22 0774upstream0 ft. AMH - Upstream Manhole, Survey Ends - 22 07740 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK1.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish1.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish75.7 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"99.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"263 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"296.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start296.7 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start298.7 ft. AMH - Downstream Manhole, Survey Begins - 22 0773298.7 ft. MWL - Water Level, 10 %of cross sectional area298.7 ft. MGO - General Observation - COCKROACHES IN MANHOLE298.7 ft. MWM - Water Mark, 20 %of cross sectional area

Observation photos (3)

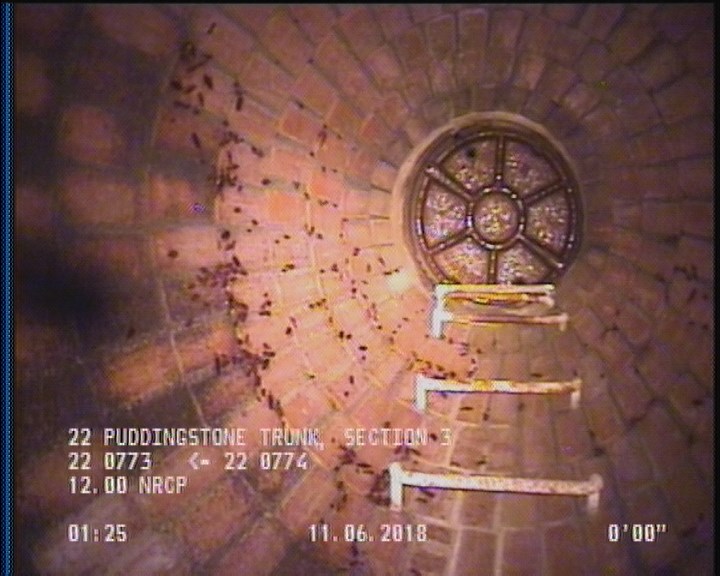

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

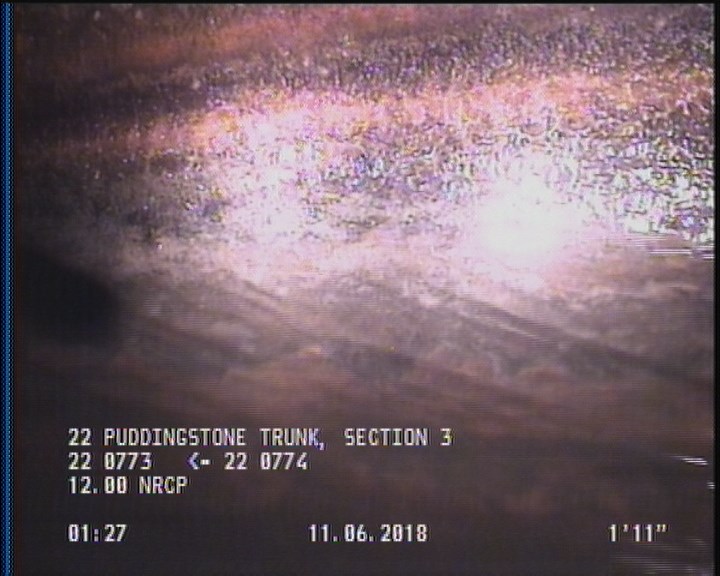

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

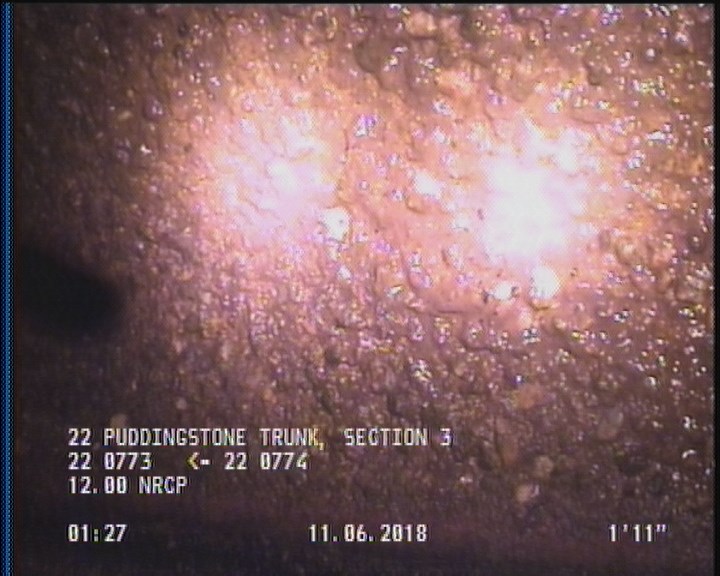

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P17135Work order 735155

Observations (13)

DistanceCodeObservation
298.7AMH22 0774
297.5DAGS—
0AMH22 0773
0MWL—
223TBA—
0MGOCOCKROACHES IN MANHOLE
199.2TFC—
0MWM—
298.7MGOACTIVE CONNECTION AT MH 9 O'CLOCK
297.5SAP—
35.7TBA—
2DAGS—
2SAP—

Properties (4)

additional_info
SC365363
custom_field_two
2
customer
LACSD
datetime
2018-11-06T01:25:20-08:00
