Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 6, 2018, 08:11 AM

  • 22 0769_22 0747 _11062018310_000236.mp4

Date
11/06/2018
W/O
735155
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00822
PipeID
P17128
Time
12:11 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6197
Sewer Name
22 PUDDINGSTONE TRUNK, SECTION 3
City
SAN DIMAS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
23
Purpose
Routine Assessment
Project
WO_735155_TV22096_NOV2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0769
Downstream MH
22 0747
Dir. of Survey
Downstream
Length Surveyed
300.2 ft.
Total Length
300.2 ft.
Structural Index
3
Structural Quick
413K
Structural Rating
181
O&M Index
2
O&M Quick
2K00
O&M Rating
118
Overall Index
3
Overall Quick
—
Overall Rating
299
Pipe schematic from manhole 22 0769 to 22 0747
MH: 22 0769MH: 22 0747downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 22 07690 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWM - Water Mark, 15 %of cross sectional area2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start23.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"28 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"71.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"75.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"120.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"123.8 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"171.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"175.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"223 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"226.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"271.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"275.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"277.7 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES299 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish299 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish300.2 ft. MGO - General Observation - COCKROACHES IN MANHOLE300.2 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 AND 12 O'CLOCK300.2 ft. AMH - Downstream Manhole, Survey Ends - 22 0747

Observation photos (5)

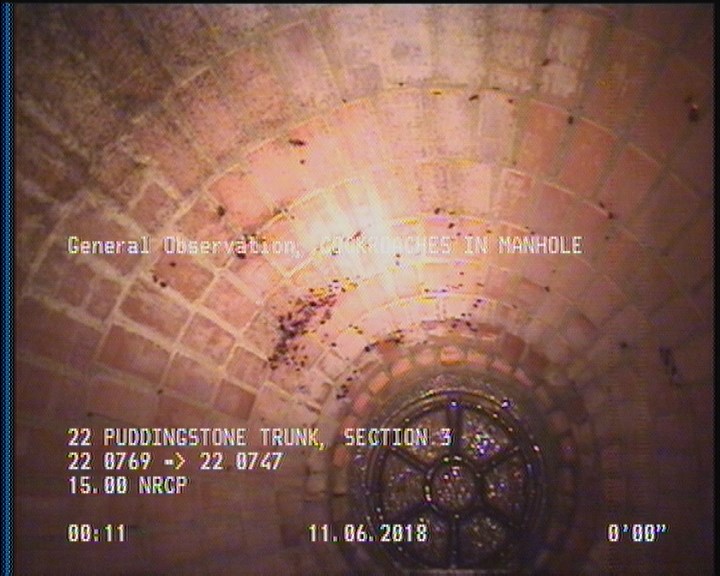

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

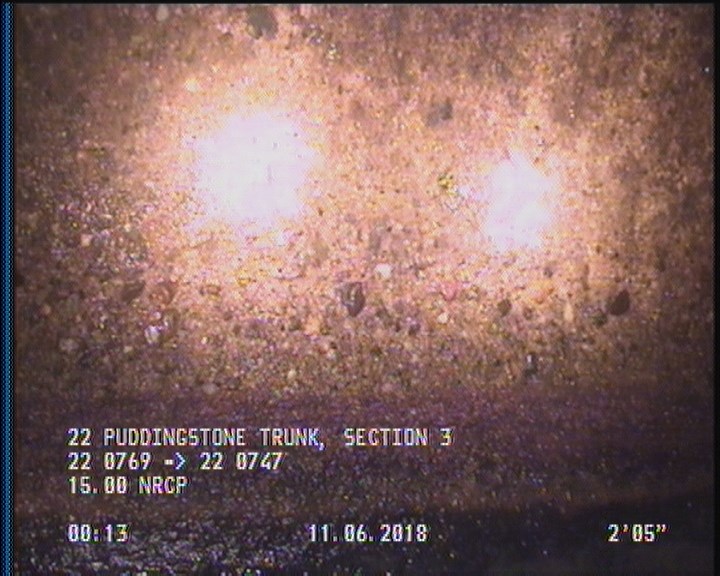

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

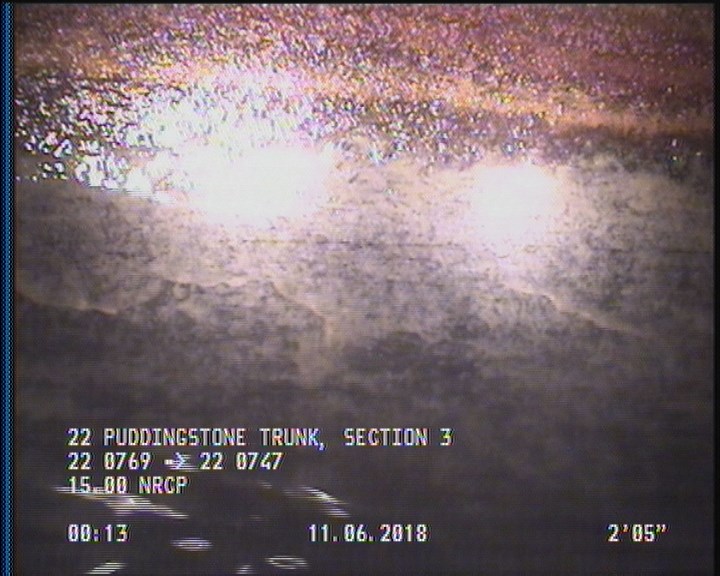

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

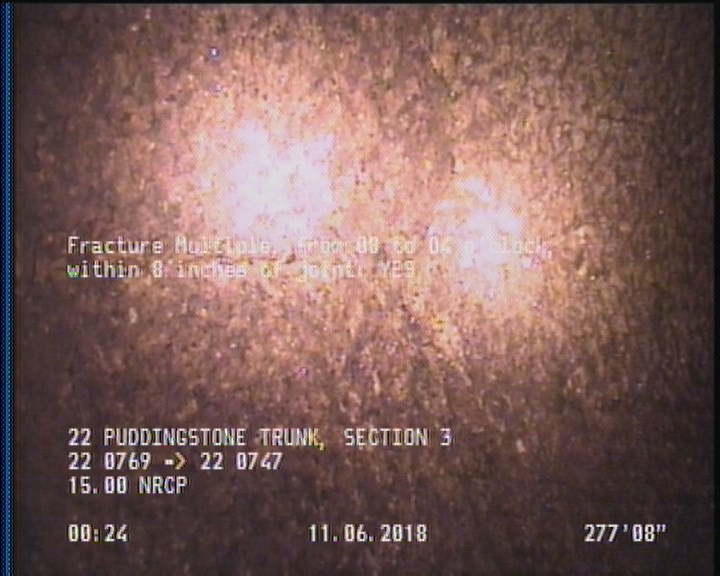

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    277.7 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

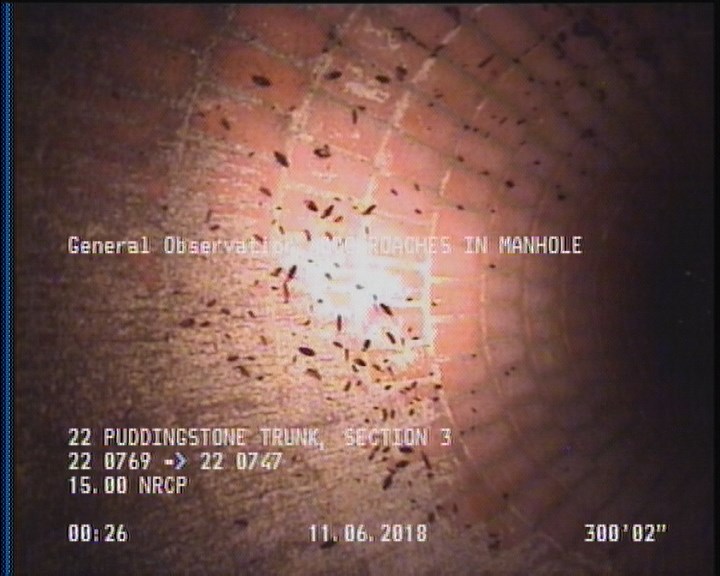

  • General Observation - COCKROACHES IN MANHOLE

    300.2 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P17128Work order 735155

Observations (24)

DistanceCodeObservation
175.4TFC—
0MWL—
299SAP—
223TFC—
271.3TFC—
0AMH22 0769
123.8TFC—
300.2MGOCOCKROACHES IN MANHOLE
2SAP—
226.8TFC—
120.1TFC—
300.2MGOACTIVE CONNECTION AT MH 9 AND 12 O'CLOCK
275.1TFC—
171.1TFC—
299DAGS—
23.4TFC—
0MGOCOCKROACHES IN MANHOLE
277.7FM—
71.6TFC—
300.2AMH22 0747
28TFC—
0MWM—
75.5TFC—
2DAGS—

Properties (4)

additional_info
SC365363
custom_field_two
2
customer
LACSD
datetime
2018-11-06T00:11:31-08:00
