Wastewater/Activity/PacpInspection/1.0Nov 6, 2018, 09:03 AM
22 0772A_22 0772 _11062018310_010359.mp4
- Date
- 11/06/2018
- W/O
- 735155
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00822
- PipeID
- P17133
- Time
- 1:03 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6197
- Sewer Name
- 22 PUDDINGSTONE TRUNK, SECTION 3
- City
- SAN DIMAS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_735155_TV22096_NOV2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 22 0772
- Downstream MH
- 22 0772A
- Dir. of Survey
- Upstream
- Length Surveyed
- 69.7 ft.
- Total Length
- 69.7 ft.
- Structural Index
- 3
- Structural Quick
- 3B00
- Structural Rating
- 39
- O&M Index
- 2
- O&M Quick
- 2B00
- O&M Rating
- 26
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 65
Observation photos (4)

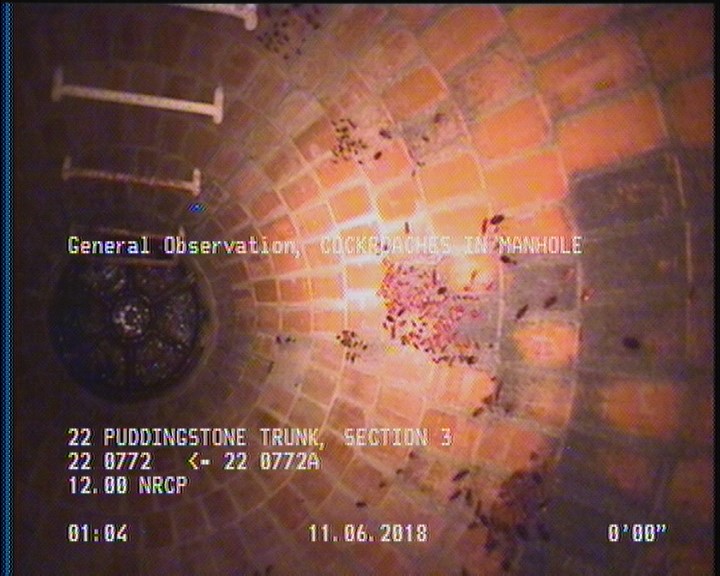

0 ft. - General Observation - COCKROACHES IN MANHOLE

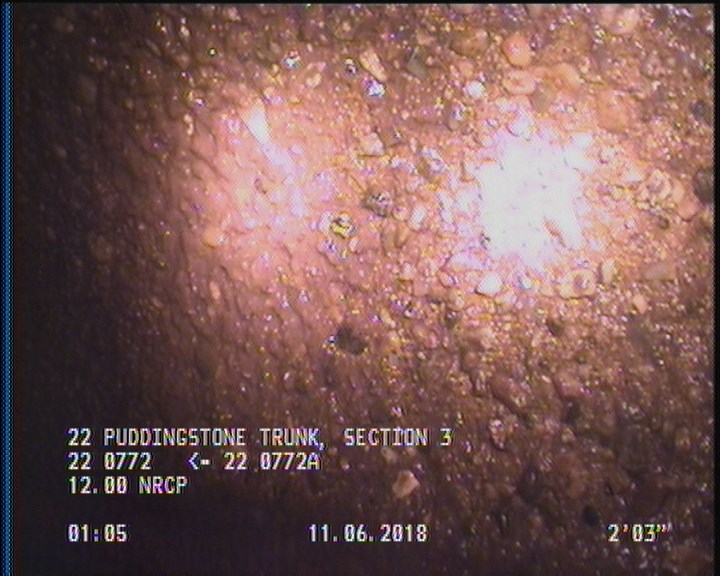

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

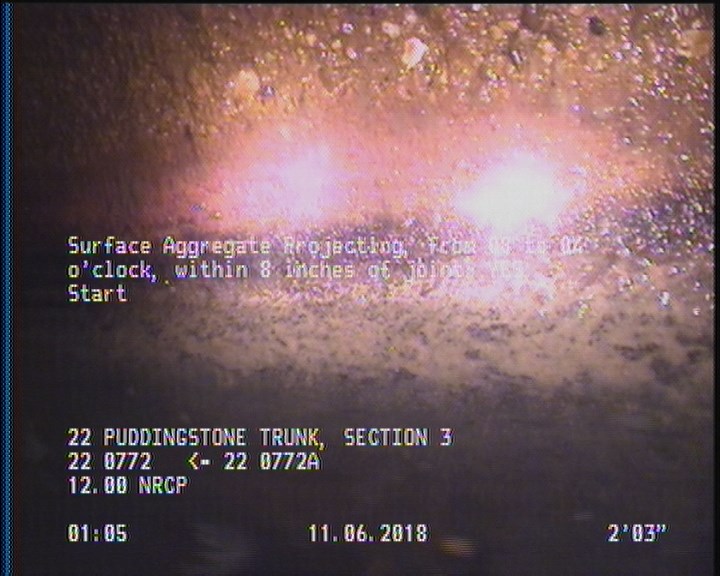

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

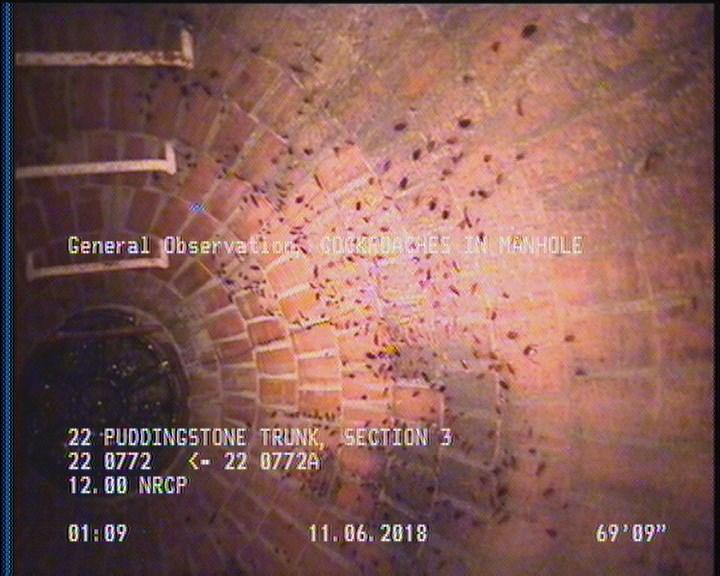

69.7 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | COCKROACHES IN MANHOLE |
| 2 | SAP | — |
| 69.7 | AMH | 22 0772A |
| 0 | AMH | 22 0772 |
| 67.7 | DAGS | — |
| 69.7 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | MWM | — |
| 0 | MWL | — |
| 67.7 | SAP | — |
| 69.7 | MGO | COCKROACHES IN MANHOLE |
| 2 | DAGS | — |
Properties (4)
- additional_info
- SC365363
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-11-06T01:03:43-08:00
