Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 6, 2018, 07:44 AM

  • 22 0770_22 0769 _11052018309_233744.mp4

Date
11/05/2018
W/O
735155
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00822
PipeID
P17129
Time
11:44 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6197
Sewer Name
22 PUDDINGSTONE TRUNK, SECTION 3
City
SAN DIMAS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
23
Purpose
Routine Assessment
Project
WO_735155_TV22096_NOV2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0770
Downstream MH
22 0769
Dir. of Survey
Downstream
Length Surveyed
320 ft.
Total Length
320 ft.
Structural Index
3
Structural Quick
413L
Structural Rating
196
O&M Index
2
O&M Quick
2L00
O&M Rating
126
Overall Index
3
Overall Quick
—
Overall Rating
322
Pipe schematic from manhole 22 0770 to 22 0769
MH: 22 0770MH: 22 0769downstream0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - CAPPED CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 22 07702 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start3.9 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start43.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"48.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"91.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"95.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"142.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"147.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"190.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"193.5 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES195.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"242.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"247 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"291.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"295.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"296.9 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES312.5 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"318.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish318.4 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish320 ft. AMH - Downstream Manhole, Survey Ends - 22 0769320 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (6)

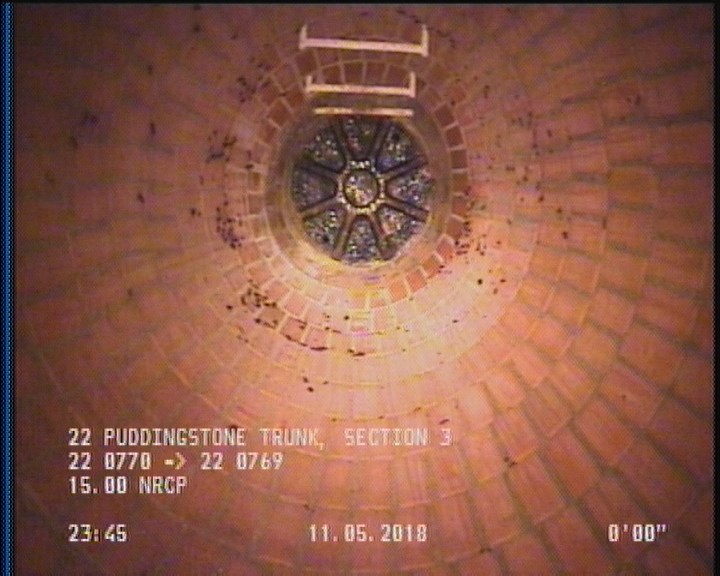

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

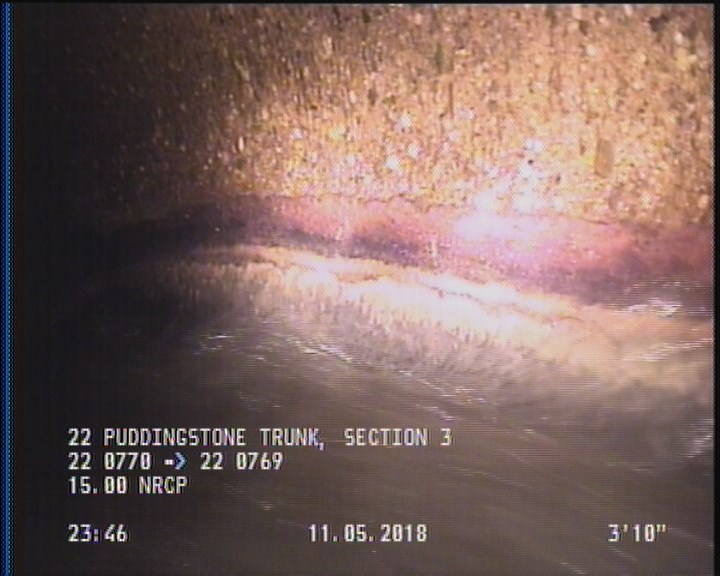

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

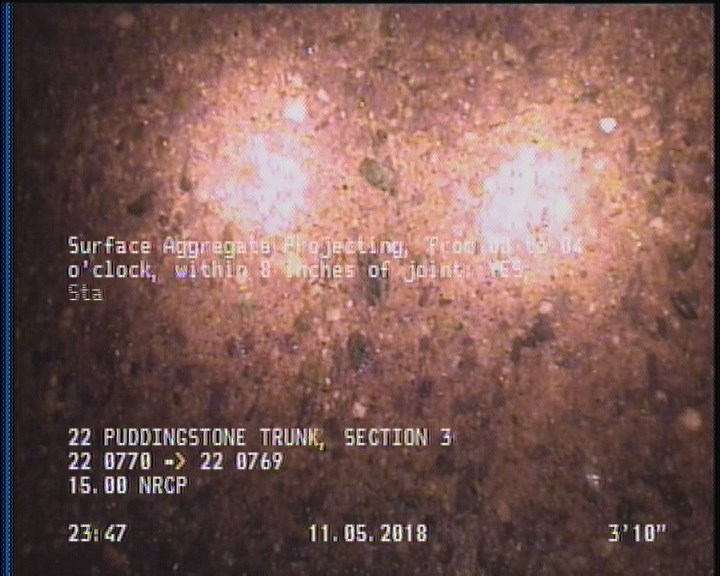

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.9 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

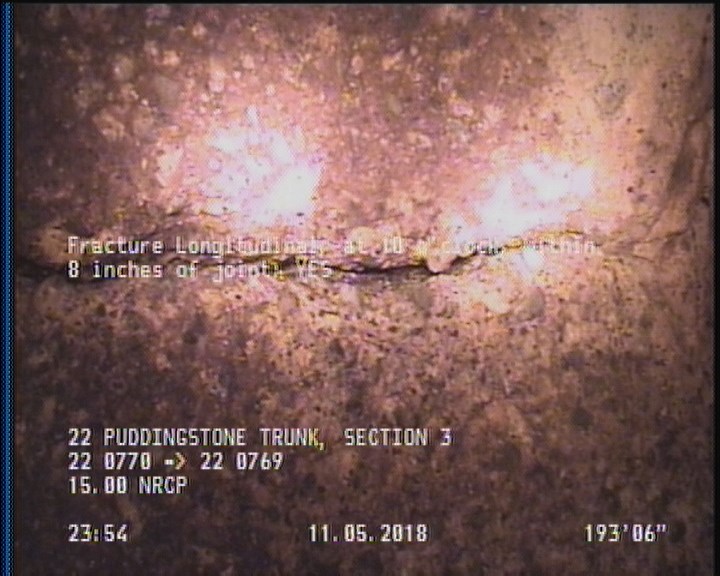

  • Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    193.5 ft. - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES

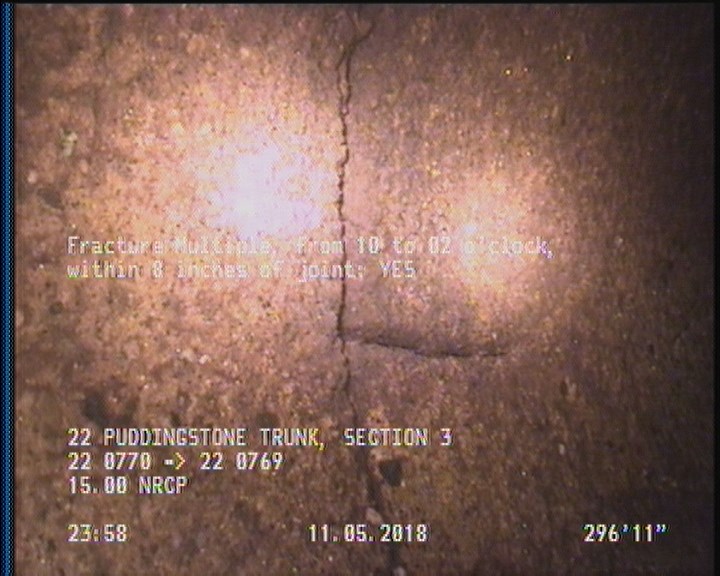

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    296.9 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

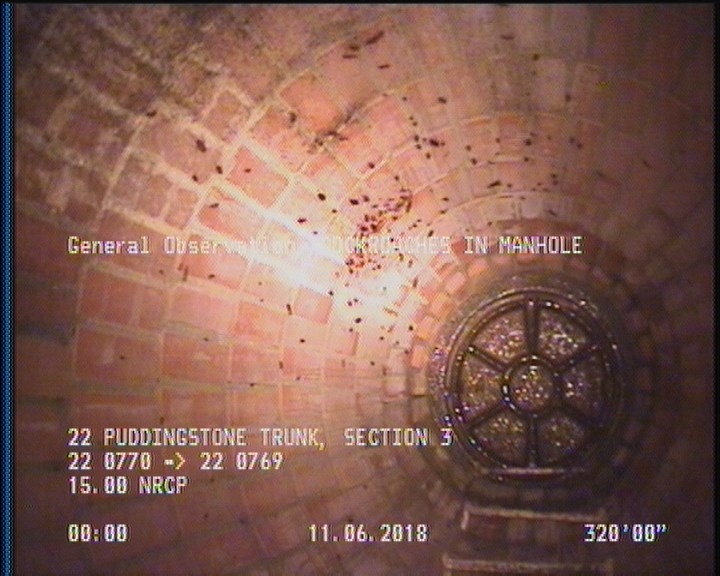

  • General Observation - COCKROACHES IN MANHOLE

    320 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P17129Work order 735155

Observations (26)

DistanceCodeObservation
318.4DAGS—
296.9FM—
291.4TFC—
95.7TFC—
195.6TFC—
3.9SAP—
318.4SAP—
147.5TFC—
312.5TBA—
193.5FL—
2DAGS—
242.4TFC—
0MWM—
295.8TFC—
0MGOCOCKROACHES IN MANHOLE
0MWL—
0MGOCAPPED CONNECTION AT MH 9 O'CLOCK
142.7TFC—
320AMH22 0769
190.6TFC—
91.2TFC—
320MGOCOCKROACHES IN MANHOLE
48.7TFC—
43.6TFC—
247TFC—
0AMH22 0770

Properties (4)

additional_info
SC365363
custom_field_two
2
customer
LACSD
datetime
2018-11-05T23:44:32-08:00
