Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 7, 2018, 08:45 AM

  • H 1266_H 1265 _11072018311_004600.mp4

Date
11/07/2018
W/O
735498
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z01181
PipeID
P17191
Time
12:45 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6199
Sewer Name
H JOINT OUTFALL H - UNIT 8K
City
AZUSA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
19
Purpose
Routine Assessment
Project
RFIR_WO_735498_TV22173_NOV2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
H 1266
Downstream MH
H 1265
Dir. of Survey
Downstream
Length Surveyed
244.4 ft.
Total Length
244.4 ft.
Structural Index
3
Structural Quick
3I2I
Structural Rating
240
O&M Index
2
O&M Quick
2I00
O&M Rating
96
Overall Index
2
Overall Quick
—
Overall Rating
336
Pipe schematic from manhole H 1266 to H 1265
MH: H 1266MH: H 1265downstream0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - H 12662 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start29.3 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"41.7 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"45.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"125.4 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"192.6 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"205.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"241.4 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish241.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish241.4 ft. MGO - General Observation - COCKROACHES IN MANHOLE241.4 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish244.4 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK244.4 ft. AMH - Downstream Manhole, Survey Ends - H 1265. RUN LIST STATES MH AT 268'

Observation photos (5)

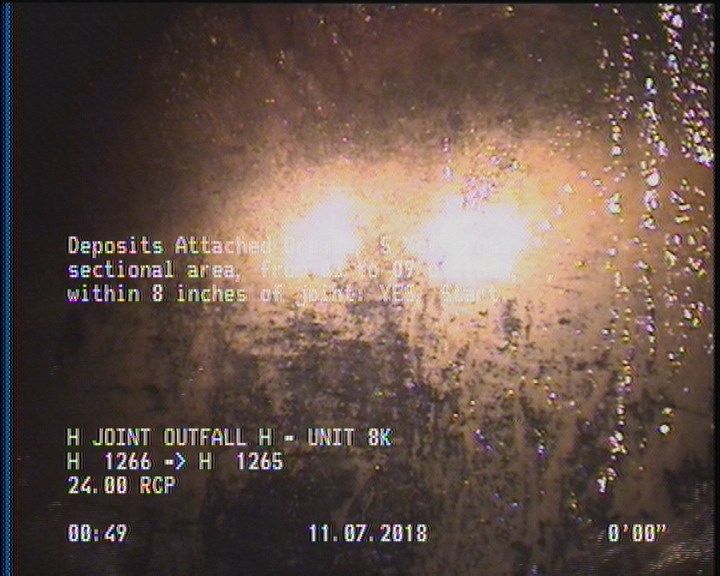

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

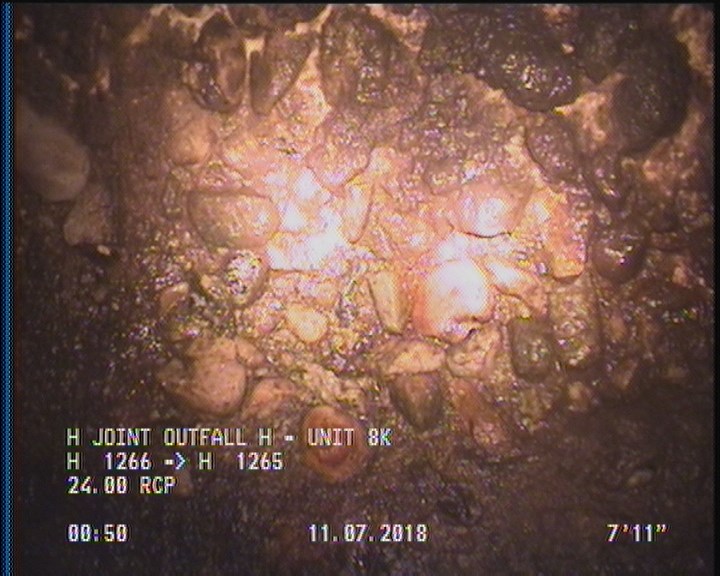

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

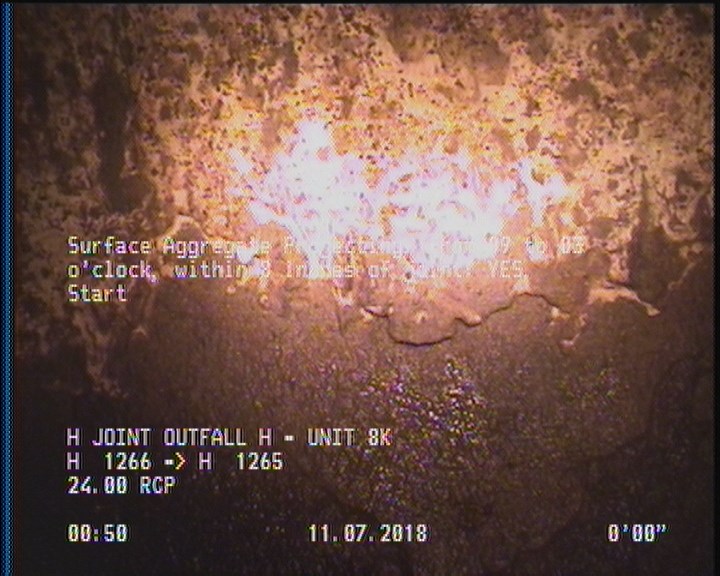

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

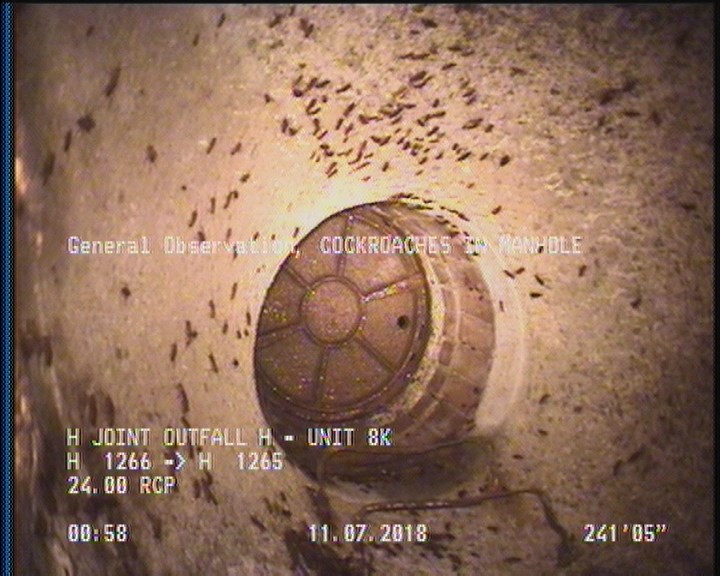

  • General Observation - COCKROACHES IN MANHOLE

    241.4 ft. - General Observation - COCKROACHES IN MANHOLE

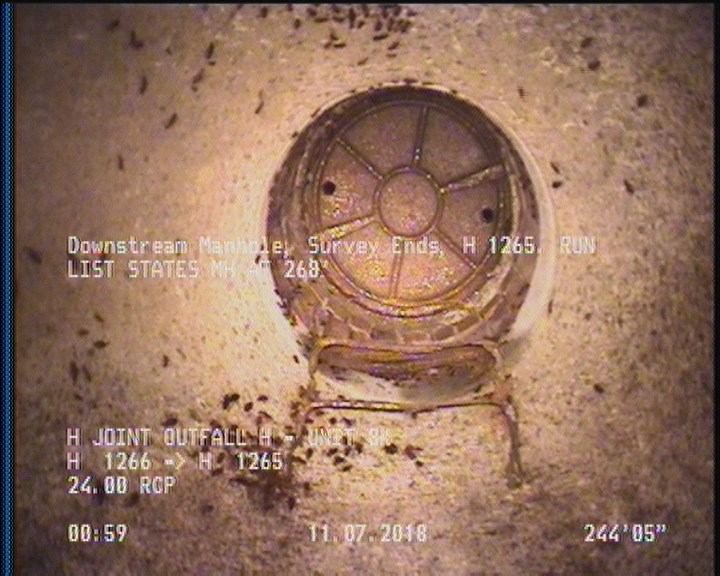

  • Downstream Manhole, Survey Ends - H 1265. RUN LIST STATES MH AT 268'

    244.4 ft. - Downstream Manhole, Survey Ends - H 1265. RUN LIST STATES MH AT 268'

All inspections of P17191Work order 735498

Observations (19)

DistanceCodeObservation
241.4SSS—
0MWM—
241.4DAGS—
45.8TFA—
244.4MGOACTIVE CONNECTION AT MH 9 O'CLOCK
41.7TBA—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
244.4AMHH 1265. RUN LIST STATES MH AT 268'
29.3TBA—
2DAGS—
2SAP—
192.6TBA—
241.4MGOCOCKROACHES IN MANHOLE
205.9TFA—
0MWL—
0AMHH 1266
2SSS—
241.4SAP—
125.4TBA—

Properties (4)

additional_info
SC365365
custom_field_two
2
customer
LACSD
datetime
2018-11-07T00:45:35-08:00
