Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 7, 2018, 08:13 AM

  • H 1272_H 1271 _11072018311_001414.mp4

Date
11/07/2018
W/O
735498
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z01181
PipeID
P17197
Time
12:13 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6199
Sewer Name
H JOINT OUTFALL H - UNIT 8K
City
AZUSA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
19
Purpose
Routine Assessment
Project
RFIR_WO_735498_TV22173_NOV2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
H 1272
Downstream MH
H 1271
Dir. of Survey
Downstream
Length Surveyed
366.8 ft.
Total Length
366.8 ft.
Structural Index
3
Structural Quick
3M2M
Structural Rating
360
O&M Index
2
O&M Quick
2M00
O&M Rating
144
Overall Index
2
Overall Quick
—
Overall Rating
504
Pipe schematic from manhole H 1272 to H 1271
MH: H 1272MH: H 1271downstream0 ft. AMH - Upstream Manhole, Survey Begins - H 12720 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MGO - General Observation - MAG COATING 50% THROUGHOUT0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 8 O'CLOCK2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start227 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"286.6 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"311.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"327.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"364.1 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish364.1 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish364.1 ft. MGO - General Observation - COCKROACHES IN MANHOLE364.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish366.8 ft. AMH - Downstream Manhole, Survey Ends - H 1271

Observation photos (5)

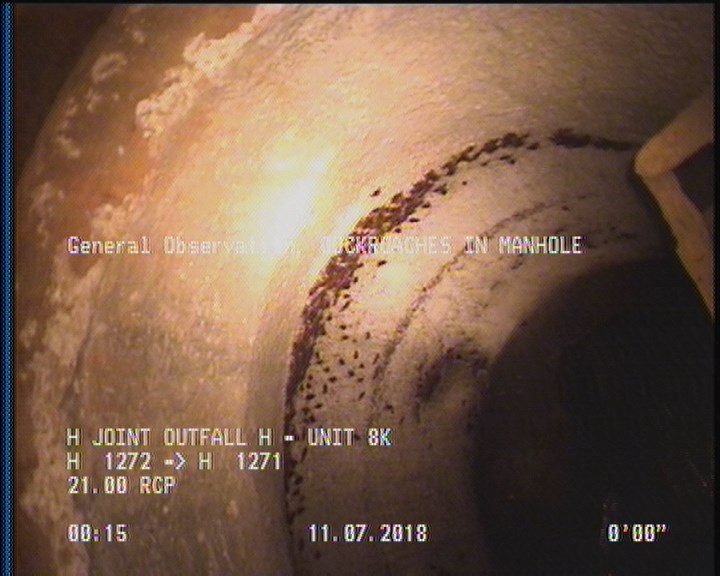

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

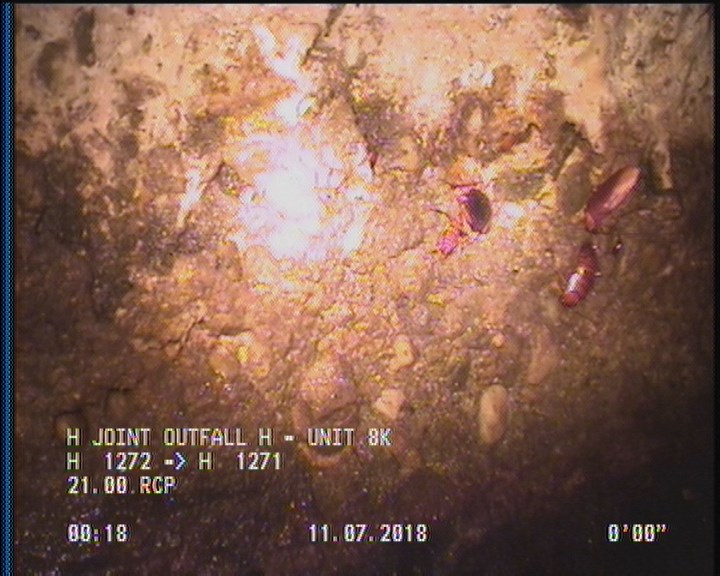

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

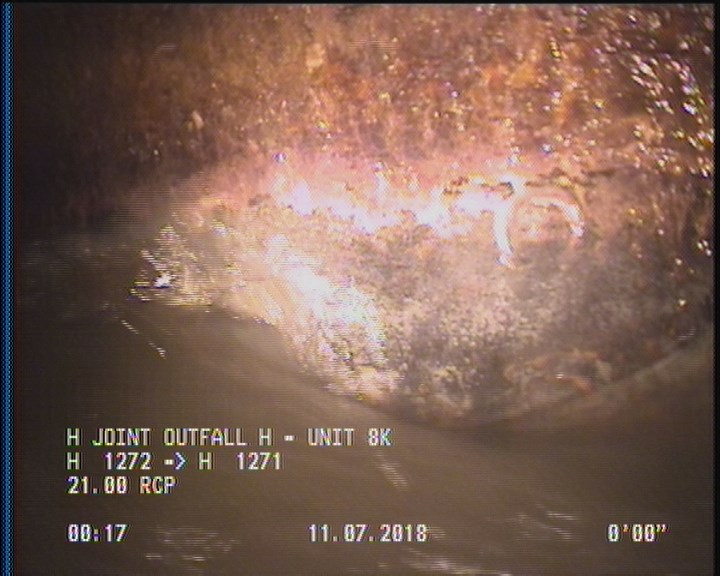

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

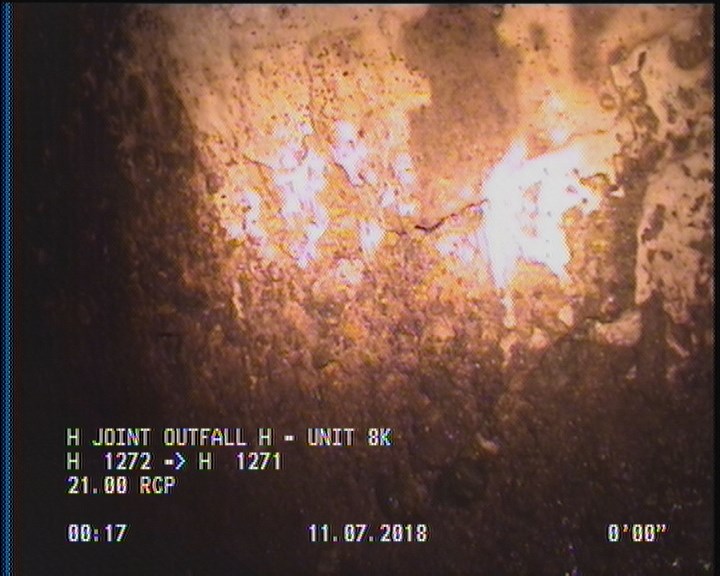

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

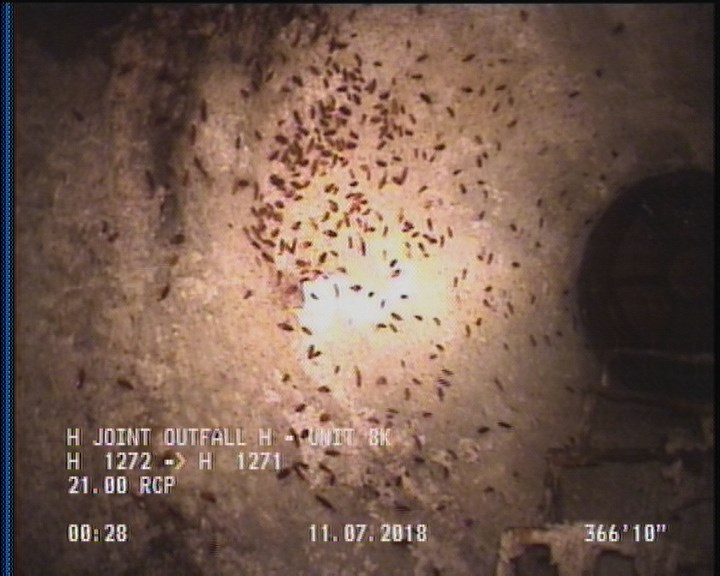

  • General Observation - COCKROACHES IN MANHOLE

    364.1 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P17197Work order 735498

Observations (18)

DistanceCodeObservation
2SAP—
364.1SSS—
364.1SAP—
311.8TFA—
364.1MGOCOCKROACHES IN MANHOLE
366.8AMHH 1271
2DAGS—
327.2TFA—
227TFA—
286.6TBA—
0AMHH 1272
0MWL—
0MGOMAG COATING 50% THROUGHOUT
364.1DAGS—
0MGOCOCKROACHES IN MANHOLE
0MWM—
2SSS—
0MGOACTIVE CONNECTION AT MH 8 O'CLOCK

Properties (4)

additional_info
SC365365
custom_field_two
2
customer
LACSD
datetime
2018-11-07T00:13:52-08:00
