Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 7, 2018, 07:10 AM

  • H 1275_H 1274 _11062018310_231504.mp4

Date
11/06/2018
W/O
735498
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z01181
PipeID
P17200
Time
11:10 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6199
Sewer Name
H JOINT OUTFALL H - UNIT 8K
City
AZUSA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
19
Purpose
Routine Assessment
Project
RFIR_WO_735498_TV22173_NOV2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
H 1275
Downstream MH
H 1274
Dir. of Survey
Downstream
Length Surveyed
392 ft.
Total Length
392 ft.
Structural Index
3
Structural Quick
3O2O
Structural Rating
390
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
390
Pipe schematic from manhole H 1275 to H 1274
MH: H 1275MH: H 1274downstream0 ft. AMH - Upstream Manhole, Survey Begins - H 12750 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MGO - General Observation - MAG COATING 75% THROUGHOUT0 ft. MWL - Water Level, 25 %of cross sectional area2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start19.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"43.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"83.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"124 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"155.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"219.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"292.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"330.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"353.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"386.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"390.9 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish390.9 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish390.9 ft. MGO - General Observation - COCKROACHES IN MANHOLE392 ft. AMH - Downstream Manhole, Survey Ends - H 1274

Observation photos (4)

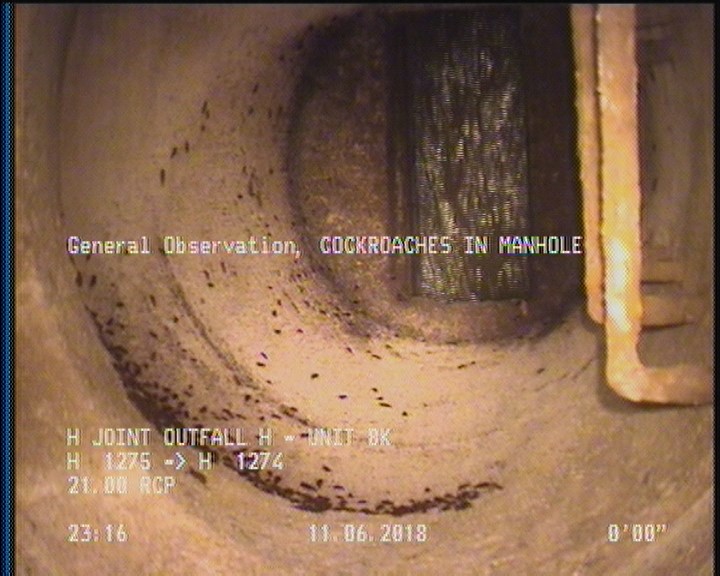

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

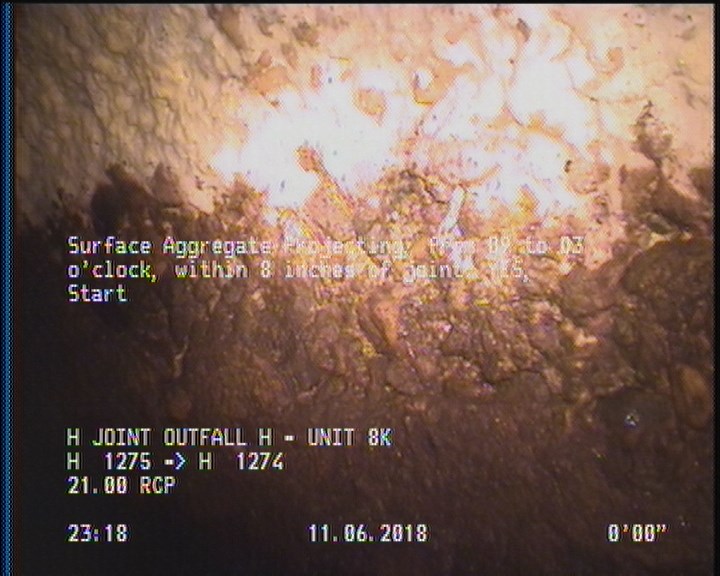

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

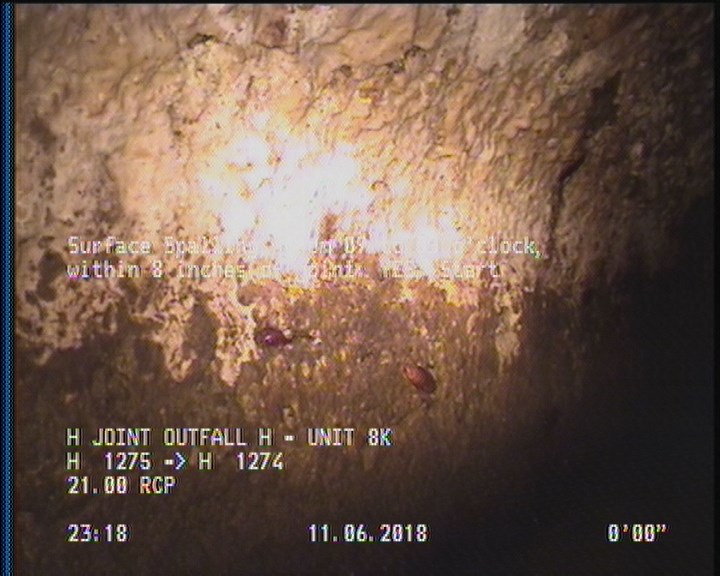

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

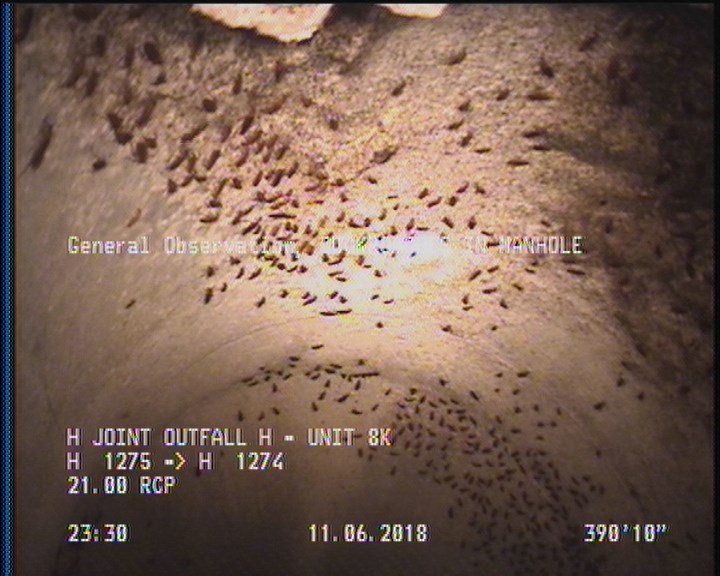

  • General Observation - COCKROACHES IN MANHOLE

    390.9 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P17200Work order 735498

Observations (21)

DistanceCodeObservation
390.9SAP—
0AMHH 1275
390.9SSS—
0MGOCOCKROACHES IN MANHOLE
124TFA—
19.8TFA—
392AMHH 1274
2SAP—
43.9TFA—
155.9TFA—
386.8TFA—
0MWM—
292.2TFA—
0MGOMAG COATING 75% THROUGHOUT
390.9MGOCOCKROACHES IN MANHOLE
83.9TFA—
0MWL—
2SSS—
219.5TFA—
330.6TFA—
353.6TFA—

Properties (4)

additional_info
SC365365
custom_field_two
2
customer
LACSD
datetime
2018-11-06T23:10:24-08:00
