Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 7, 2018, 07:31 AM

  • H 1274_H 1273 _11062018310_233137.mp4

Date
11/06/2018
W/O
735498
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z01181
PipeID
P17199
Time
11:31 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6199
Sewer Name
H JOINT OUTFALL H - UNIT 8K
City
AZUSA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
19
Purpose
Routine Assessment
Project
RFIR_WO_735498_TV22173_NOV2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
H 1274
Downstream MH
H 1273
Dir. of Survey
Downstream
Length Surveyed
402.9 ft.
Total Length
402.9 ft.
Structural Index
3
Structural Quick
3O2O
Structural Rating
400
O&M Index
2
O&M Quick
2O00
O&M Rating
160
Overall Index
2
Overall Quick
—
Overall Rating
560
Pipe schematic from manhole H 1274 to H 1273
MH: H 1274MH: H 1273downstream0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MGO - General Observation - MAG COATING 50% THROUGHOUT0 ft. AMH - Upstream Manhole, Survey Begins - H 12742 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. MGO - General Observation - COCKROACHES IN MANHOLE2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start20.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"61 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"93.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"116.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"155.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"205.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"219.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"276.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"291.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"355.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"400.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish400.5 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish400.5 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish402.9 ft. AMH - Downstream Manhole, Survey Ends - H 1273402.9 ft. MGO - General Observation - COCKROACHES IN MANHOLE402.9 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK

Observation photos (5)

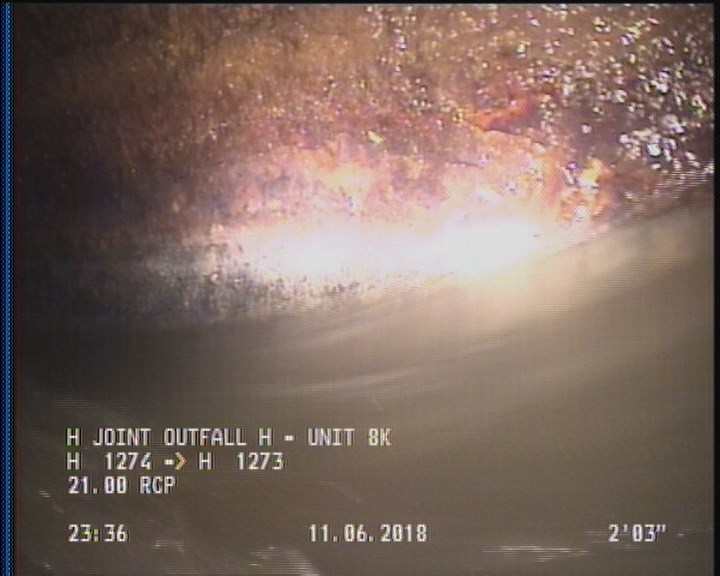

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

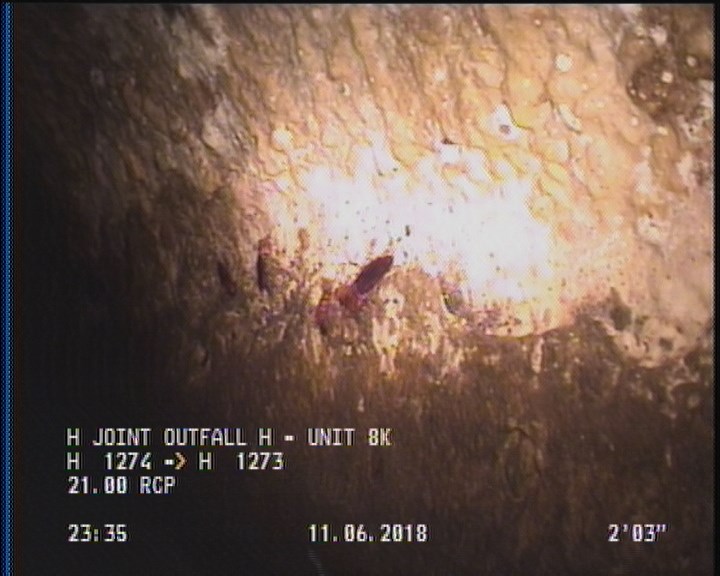

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

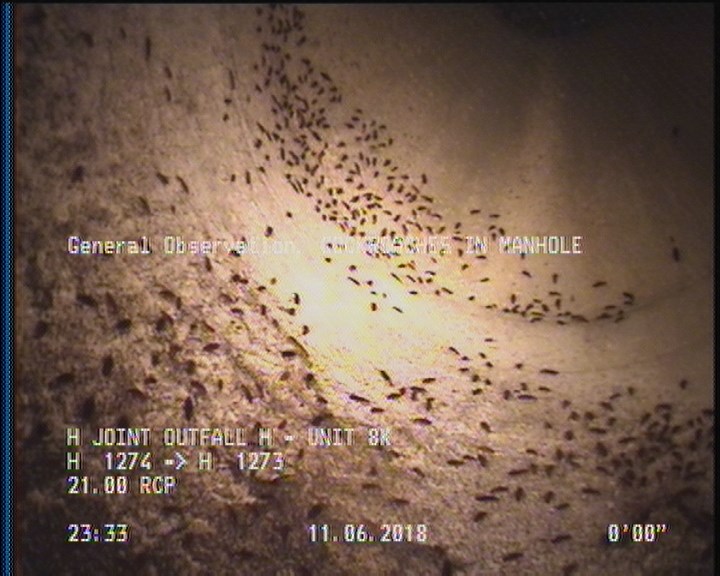

  • General Observation - COCKROACHES IN MANHOLE

    2 ft. - General Observation - COCKROACHES IN MANHOLE

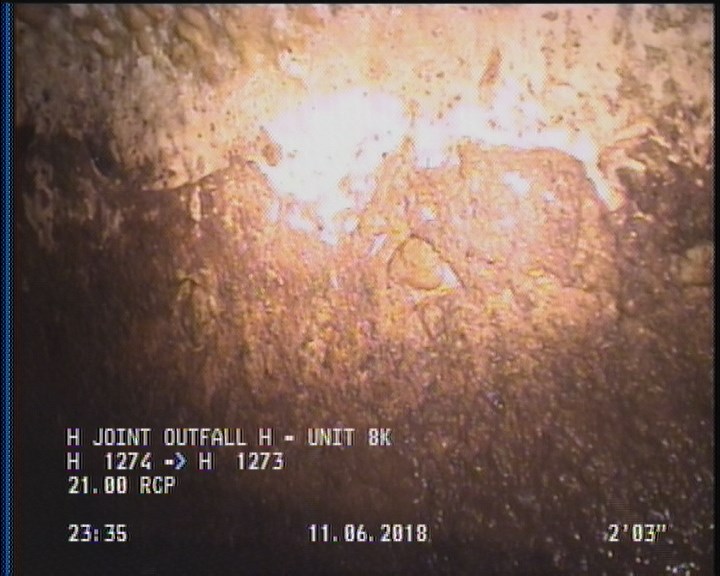

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

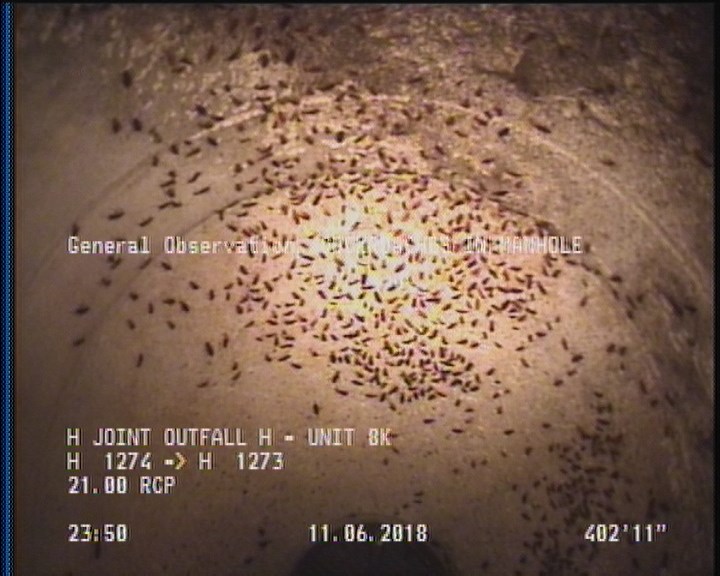

  • General Observation - COCKROACHES IN MANHOLE

    402.9 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P17199Work order 735498

Observations (24)

DistanceCodeObservation
400.5DAGS—
0MWL—
402.9AMHH 1273
2DAGS—
61TBA—
400.5SAP—
0MWM—
155.7TFA—
400.5SSS—
355.8TFC—
402.9MGOCOCKROACHES IN MANHOLE
2SSS—
291.6TFA—
20.7TFA—
219.8TFA—
276.5TFA—
93.5TFA—
0MGOMAG COATING 50% THROUGHOUT
2MGOCOCKROACHES IN MANHOLE
0AMHH 1274
2SAP—
205.2TFA—
402.9MGOACTIVE CONNECTION AT MH 9 O'CLOCK
116.8TFA—

Properties (4)

additional_info
SC365365
custom_field_two
2
customer
LACSD
datetime
2018-11-06T23:31:21-08:00
