Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 7, 2018, 09:18 AM

  • H 1254_H 1253 _11072018311_011842.mp4

Date
11/07/2018
W/O
735498
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z01181
PipeID
P17179
Time
1:18 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6199
Sewer Name
H JOINT OUTFALL H - UNIT 8K
City
COVINA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
25
Purpose
Routine Assessment
Project
RFIR_WO_735498_TV22173_NOV2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
H 1254
Downstream MH
H 1253
Dir. of Survey
Downstream
Length Surveyed
254.9 ft.
Total Length
254.9 ft.
Structural Index
3
Structural Quick
3I2I
Structural Rating
250
O&M Index
2
O&M Quick
2I00
O&M Rating
100
Overall Index
2
Overall Quick
—
Overall Rating
350
Pipe schematic from manhole H 1254 to H 1253
MH: H 1254MH: H 1253downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - H 12542 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start254.4 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish254.4 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish254.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish254.9 ft. MGO - General Observation - COCKROACHES IN MANHOLE254.9 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK254.9 ft. AMH - Downstream Manhole, Survey Ends - H 1253

Observation photos (5)

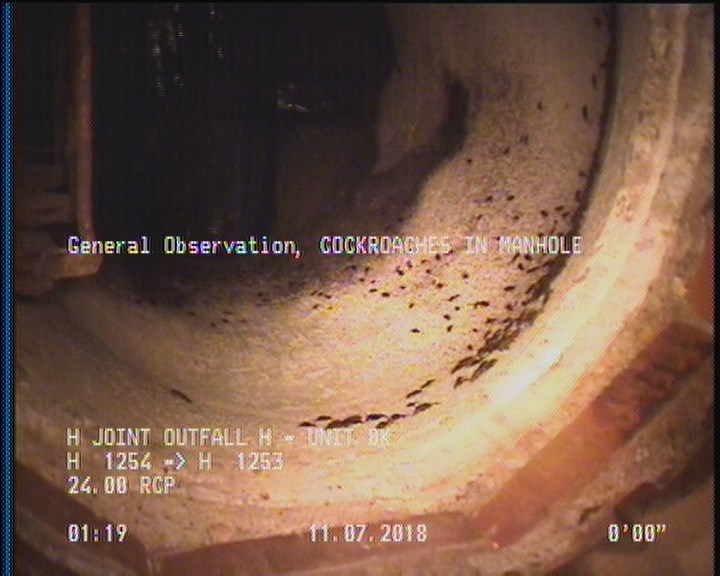

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

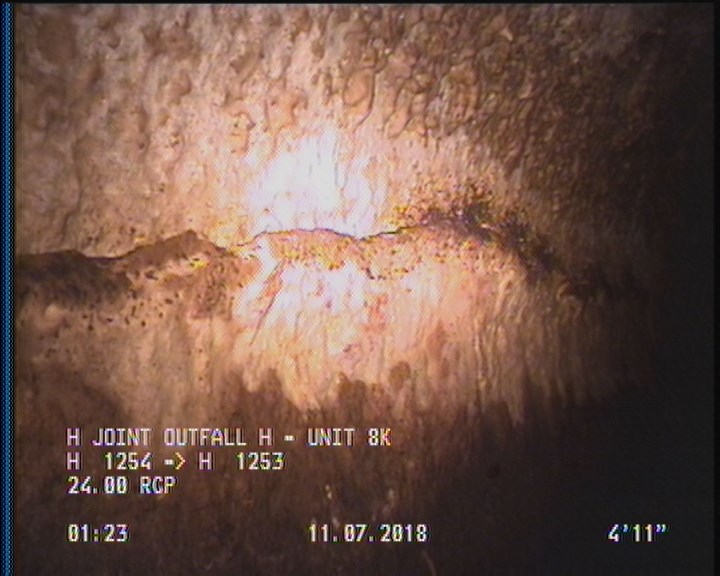

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

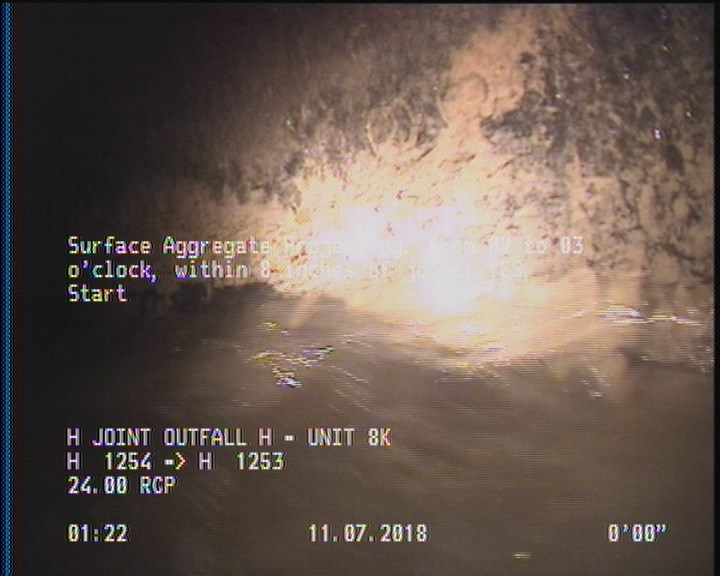

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

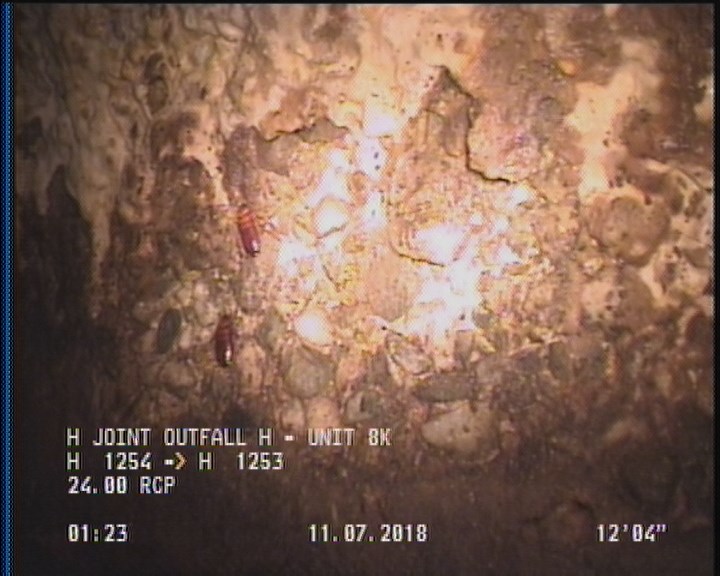

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

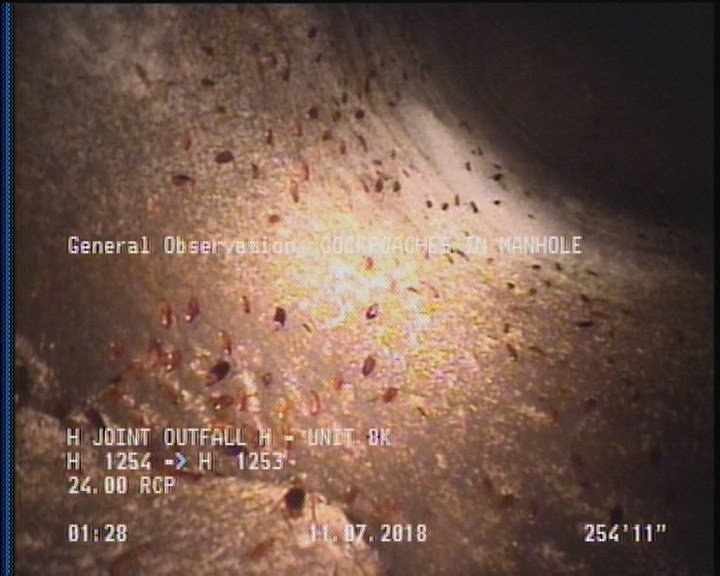

  • General Observation - COCKROACHES IN MANHOLE

    254.9 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P17179Work order 735498

Observations (14)

DistanceCodeObservation
0MGOCOCKROACHES IN MANHOLE
254.4SAP—
0MWM—
2SSS—
254.9MGOCOCKROACHES IN MANHOLE
254.4SSS—
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
2DAGS—
254.9MGOACTIVE CONNECTION AT MH 9 O'CLOCK
0MWL—
254.9AMHH 1253
254.4DAGS—
2SAP—
0AMHH 1254

Properties (4)

additional_info
SC365365
custom_field_two
2
customer
LACSD
datetime
2018-11-07T01:18:19-08:00
