Wastewater/Activity/PacpInspection/1.0Nov 6, 2018, 05:58 AM
22 0708_22 0707 _11052018309_214543.mp4
- Date
- 11/05/2018
- W/O
- 735127
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00826
- PipeID
- P17061
- Time
- 9:58 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6196
- Sewer Name
- 22 SAN DIMAS CONNECTION EXTENSION TRUNK
- City
- SAN DIMAS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 22
- Purpose
- Routine Assessment
- Project
- RFIR_WO_735127_TV22167_NOV2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 22 0708
- Downstream MH
- 22 0707
- Dir. of Survey
- Downstream
- Length Surveyed
- 353.3 ft.
- Total Length
- 353.3 ft.
- Structural Index
- 3
- Structural Quick
- 413M
- Structural Rating
- 354
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 140
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 494
Observation photos (5)

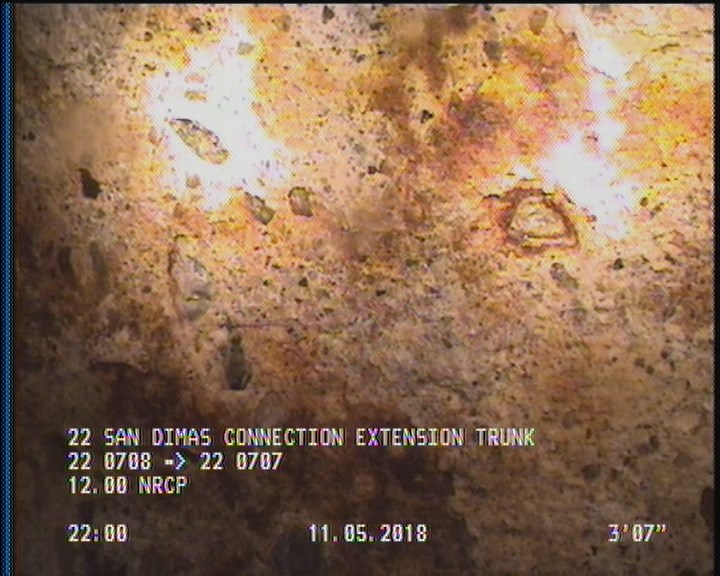

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

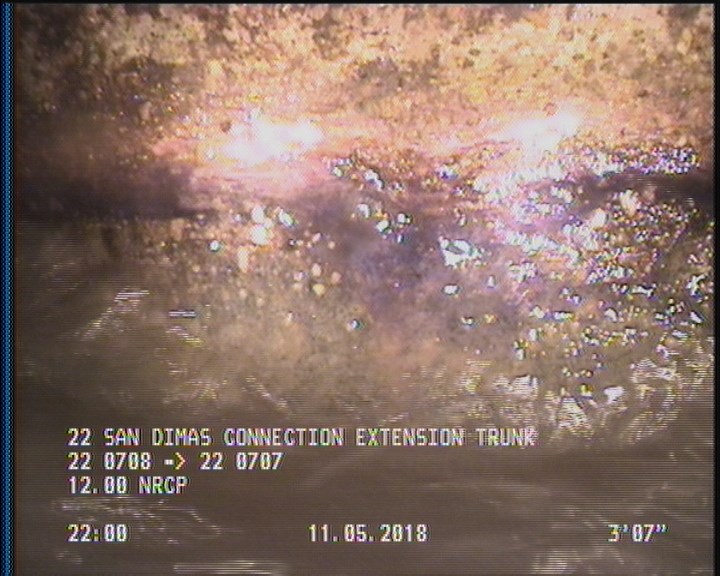

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

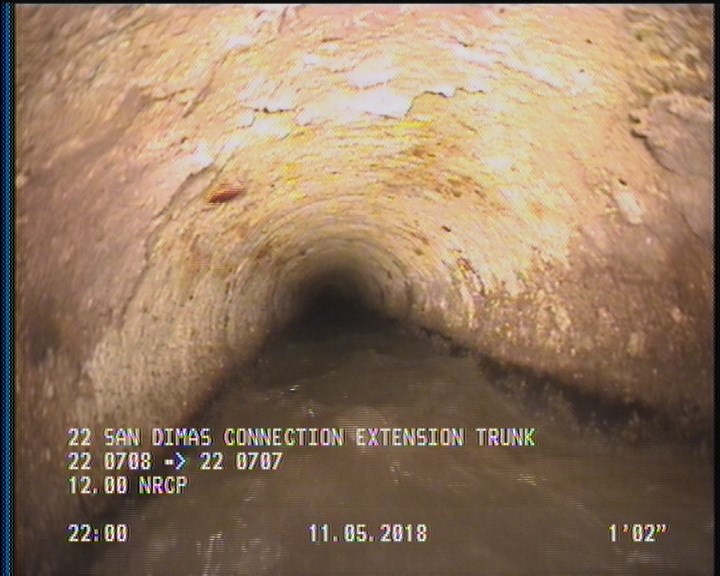

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

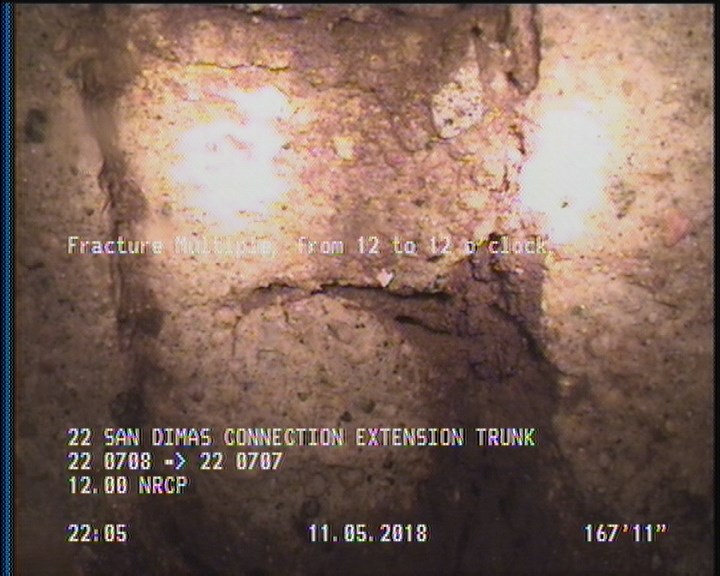

167.9 ft. - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

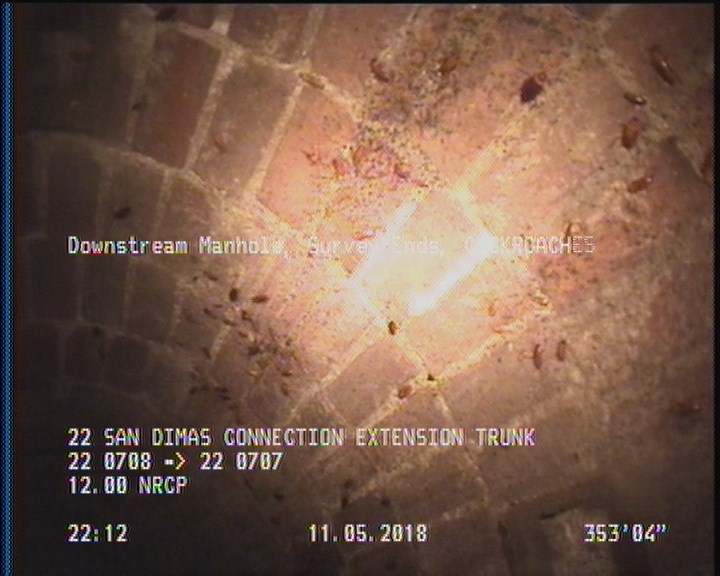

353.3 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 183.8 | TFC | — |
| 235.1 | TFC | — |
| 84.1 | TFC | — |
| 0 | MWL | — |
| 353.3 | MGO | COCKROACHES IN MANHOLE |
| 0 | AMH | 22 0708 |
| 353.3 | AMH | 22 0707 |
| 351.8 | DAGS | — |
| 351.8 | SSS | — |
| 2 | SAP | — |
| 167.9 | FM | — |
| 2 | DAGS | — |
| 351.8 | SAP | — |
| 0 | MWM | — |
| 2 | SSS | — |
Properties (4)
- additional_info
- SC365362
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-11-05T21:58:36-08:00
