Wastewater/Activity/PacpInspection/1.0Nov 5, 2018, 11:15 AM
22 0706_22 0705 _11052018309_031758.mp4
- Date
- 11/05/2018
- W/O
- 735127
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00826
- PipeID
- P17059
- Time
- 3:15 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6195
- Sewer Name
- 22 SAN DIMAS CONNECTION EXTENSION TRUNK
- City
- SAN DIMAS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 22
- Purpose
- Routine Assessment
- Project
- RFIR_WO_735127_TV22167_NOV2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 22 0706
- Downstream MH
- 22 0705
- Dir. of Survey
- Downstream
- Length Surveyed
- 329.1 ft.
- Total Length
- 329.1 ft.
- Structural Index
- 3
- Structural Quick
- 3L2L
- Structural Rating
- 325
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 130
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 455
Observation photos (4)

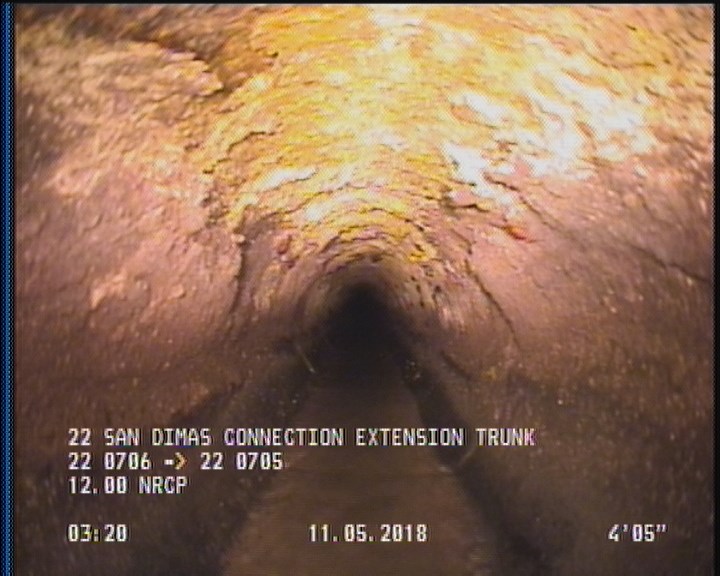

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

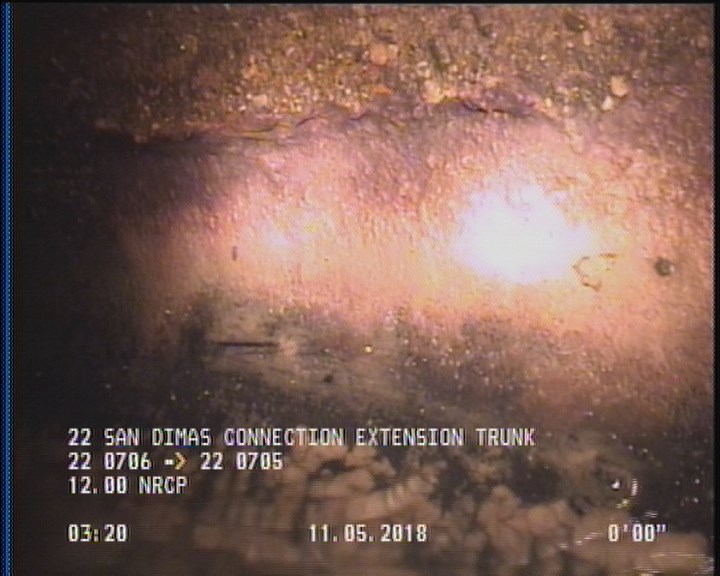

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

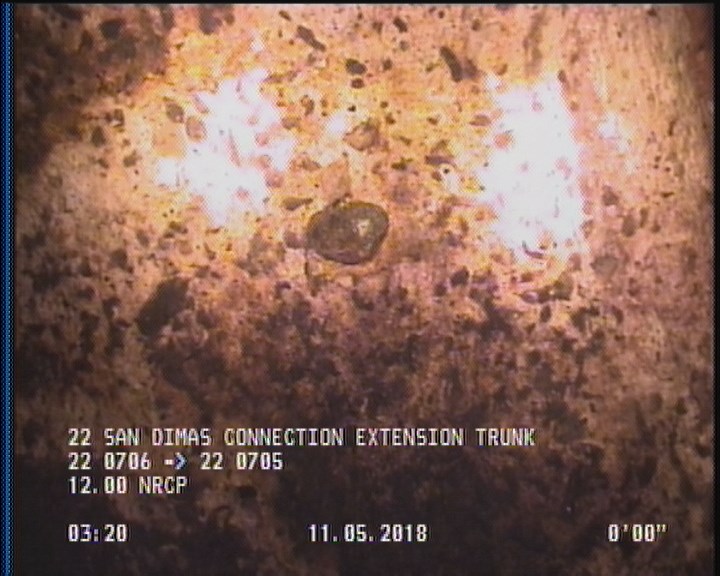

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

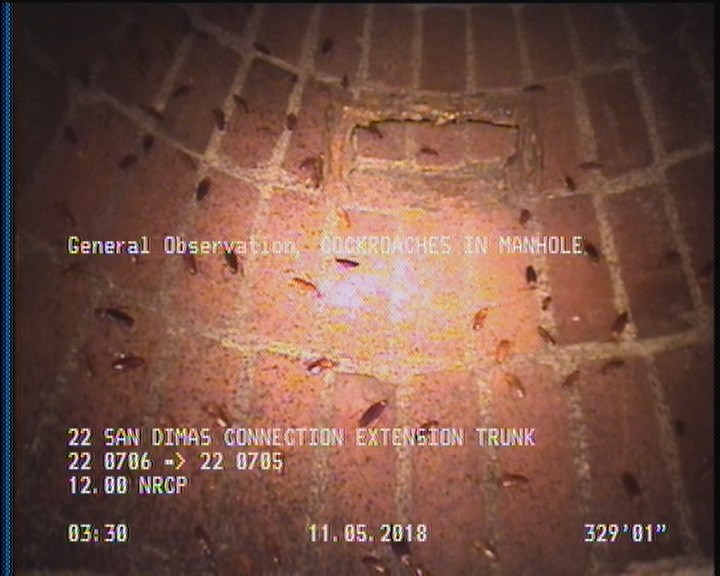

329.1 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 2 | SSS | — |
| 90.4 | TFC | — |
| 0 | MWL | — |
| 329.1 | MGO | COCKROACHES IN MANHOLE |
| 225.9 | TBA | — |
| 0 | MWM | — |
| 329.1 | AMH | 22 0705 |
| 20.3 | TFC | — |
| 2 | DAGS | — |
| 327 | SAP | — |
| 171.7 | TFC | — |
| 0 | AMH | 22 0706 |
| 249.5 | TFC | — |
| 327 | DAGS | — |
| 327 | SSS | — |
| 2 | SAP | — |
Properties (4)
- additional_info
- SC365361
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-11-05T03:15:54-08:00
