  • 22 0704_22 0703A _11052018309_034617.mp4

Date
11/05/2018
W/O
735127
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00826
PipeID
P17057
Time
3:46 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6195
Sewer Name
22 SAN DIMAS CONNECTION EXTENSION TRUNK
City
SAN DIMAS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
22
Purpose
Routine Assessment
Project
RFIR_WO_735127_TV22167_NOV2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
22 0704
Downstream MH
22 0703A
Dir. of Survey
Downstream
Length Surveyed
389.7 ft.
Total Length
389.7 ft.
Structural Index
3
Structural Quick
3N2N
Structural Rating
385
O&M Index
2
O&M Quick
2N00
O&M Rating
154
Overall Index
2
Overall Quick
—
Overall Rating
539
Pipe schematic from manhole 22 0704 to 22 0703A
MH: 22 0704MH: 22 0703Adownstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 22 07042 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start5.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"33.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"117.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"217.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"260.9 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"263.6 ft. TBA - Tap Break-In Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"266.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"341.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"388.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish388.7 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish388.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish389.7 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK389.7 ft. AMH - Downstream Manhole, Survey Ends - 22 0703A389.7 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (4)

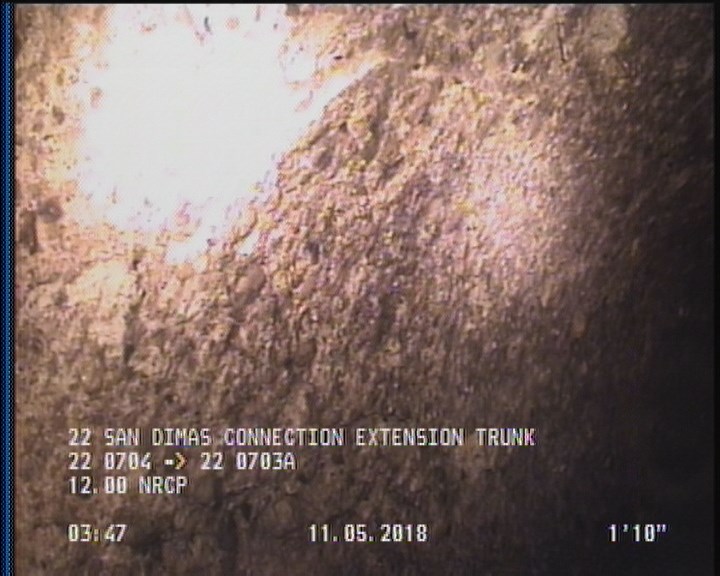

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

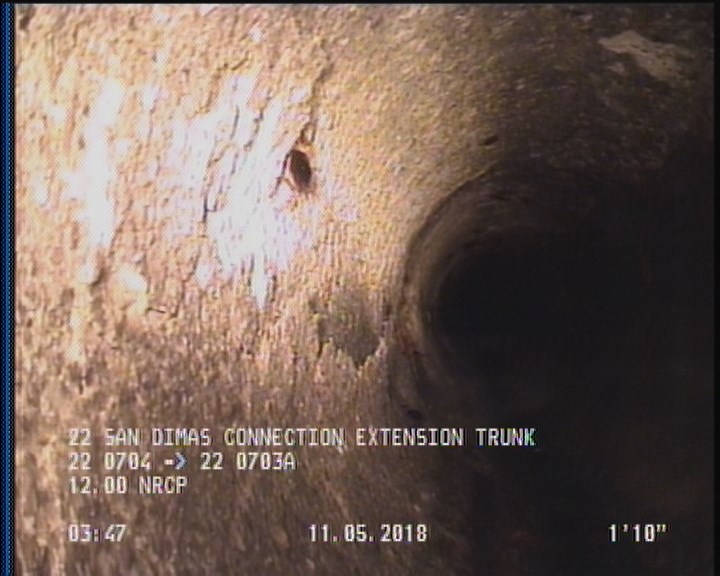

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

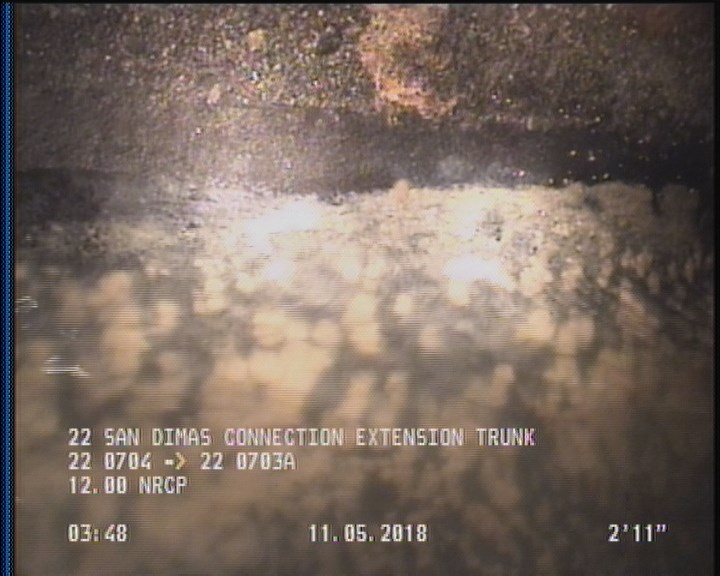

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

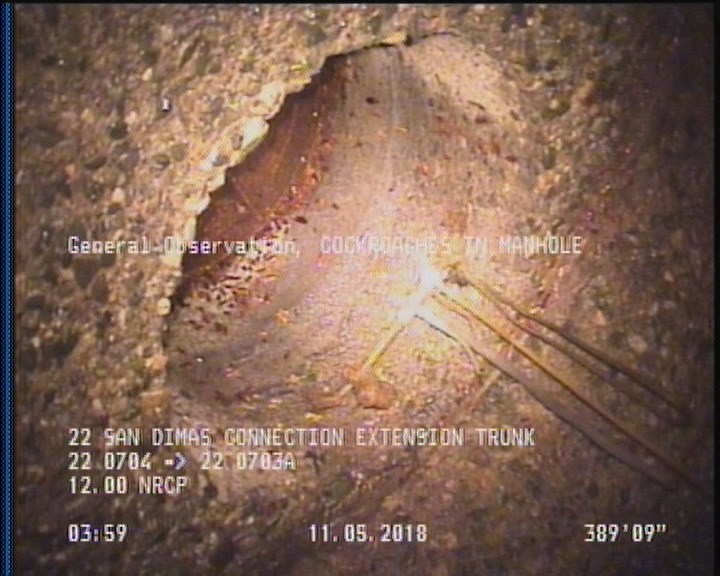

  • General Observation - COCKROACHES IN MANHOLE

    389.7 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P17057Work order 735127

Observations (20)

DistanceCodeObservation
266.3TFC—
5.7TFC—
0MWM—
217.5TFC—
2SAP—
33.1TF—
0MWL—
388.7SSS—
389.7MGOACTIVE CONNECTION AT MH 3 O'CLOCK
388.7SAP—
341.8TFA—
388.7DAGS—
260.9TB—
2SSS—
2DAGS—
263.6TBA—
117.3TFC—
389.7AMH22 0703A
389.7MGOCOCKROACHES IN MANHOLE
0AMH22 0704

Properties (4)

additional_info
SC365361
custom_field_two
2
customer
LACSD
datetime
2018-11-05T03:46:03-08:00
