Wastewater/Activity/PacpInspection/1.0Nov 5, 2018, 09:25 AM
22 0393_22 0392 _11052018309_012504.mp4
- Date
- 11/05/2018
- W/O
- 735036
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00831
- PipeID
- P16727
- Time
- 1:25 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6194
- Sewer Name
- 22 WALNUT CREEK TRUNK, SECTION 3
- City
- COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 33
- Purpose
- Routine Assessment
- Project
- RFIR_WO_735036_TV22065_NOV2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0393
- Downstream MH
- 22 0392
- Dir. of Survey
- Downstream
- Length Surveyed
- 303 ft.
- Total Length
- 303 ft.
- Structural Index
- 3
- Structural Quick
- 3K2I
- Structural Rating
- 276
- O&M Index
- 2
- O&M Quick
- 2K12
- O&M Rating
- 122
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 398
Observation photos (5)

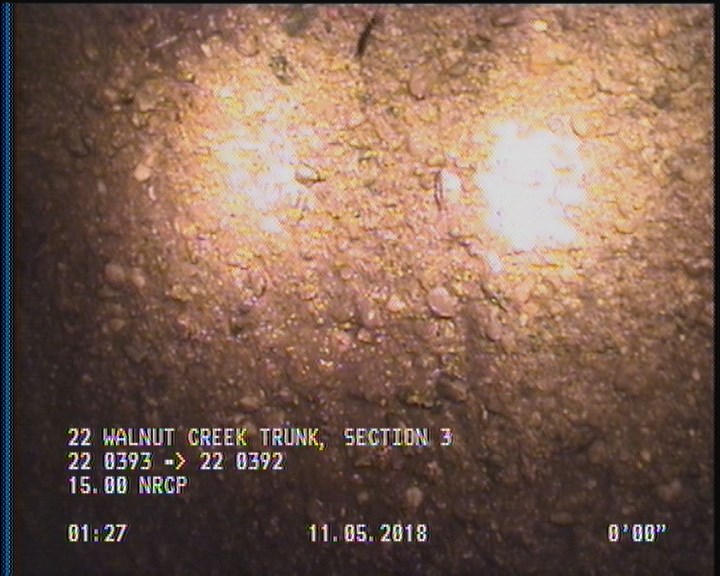

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

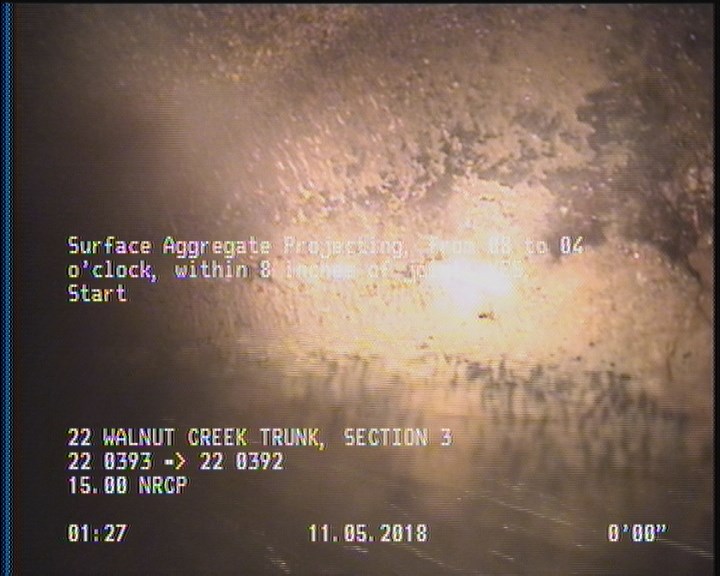

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

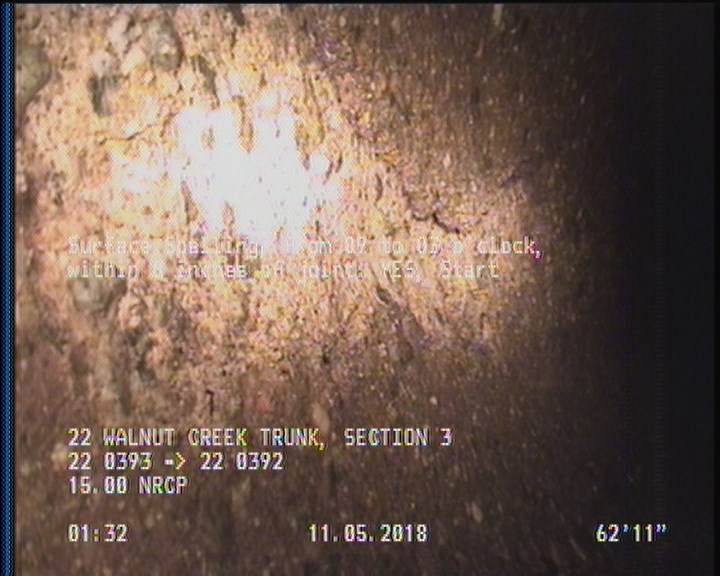

63 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

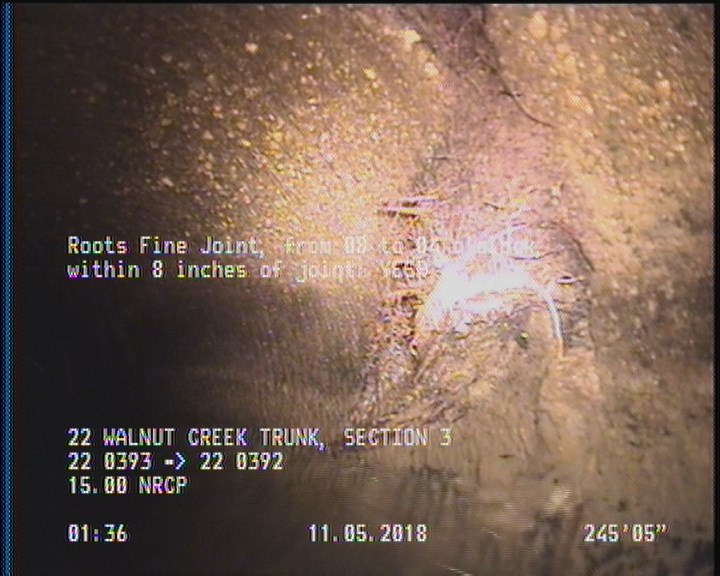

245.5 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR

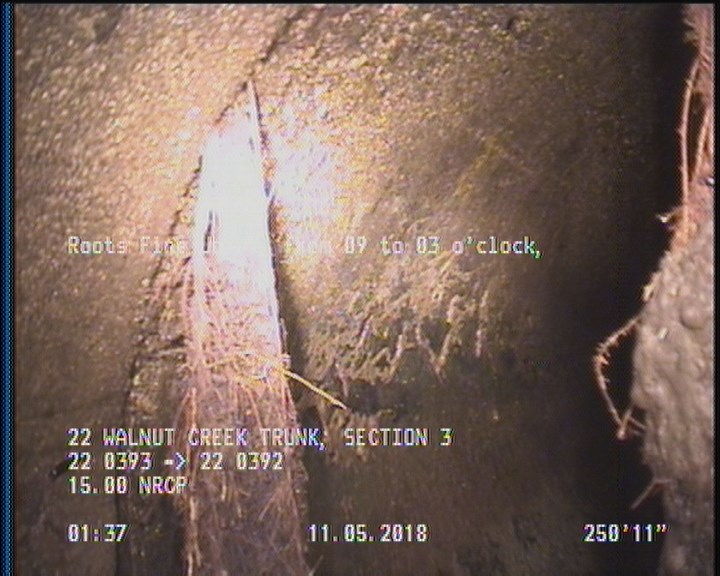

251 ft. - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 2 | SAP | — |
| 301.6 | SAP | — |
| 0 | MWM | — |
| 303 | AMH | 22 0392 |
| 301.6 | SSS | — |
| 0 | AMH | 22 0393 |
| 301.6 | DAGS | — |
| 251 | RFJ | — |
| 0 | MWL | — |
| 2 | DAGS | — |
| 63 | SSS | — |
| 245.5 | RFJ | — |
Properties (4)
- additional_info
- SC365360
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-11-05T01:25:02-08:00
