Wastewater/Activity/PacpInspection/1.0Nov 20, 2018, 07:02 PM
22 0736_22 0713_11202018_110508.mp4
- Date
- 11/20/2018
- W/O
- 0735394
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00821
- PipeID
- P17092
- Time
- 11:02 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7859
- Sewer Name
- 22 PUDDINGSTONE TRUNK, SECTS 1&2
- City
- SAN DIMAS
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 22
- Purpose
- Capital Improvement Program Assesment
- Project
- 20181120SHO_PUDDINGSTONE_TRUNK_SECTION_1_2
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 22 0736
- Downstream MH
- 22 0713
- Dir. of Survey
- Downstream
- Length Surveyed
- 326.3 ft.
- Total Length
- 326.3 ft.
- Structural Index
- 4
- Structural Quick
- 4131
- Structural Rating
- 7
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (3)

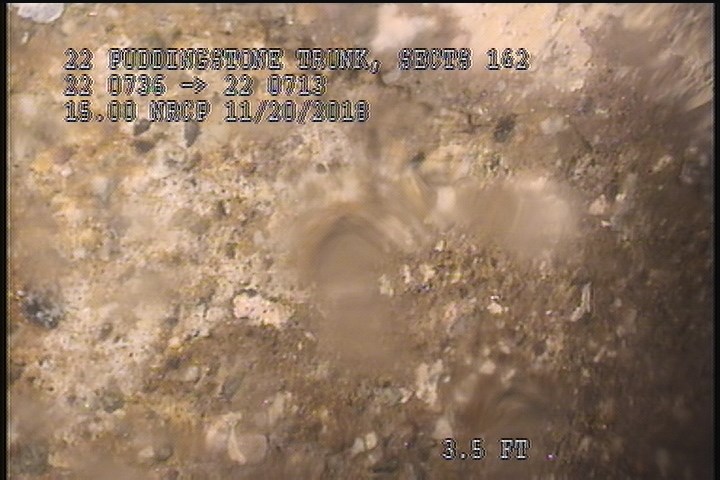

3.5 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

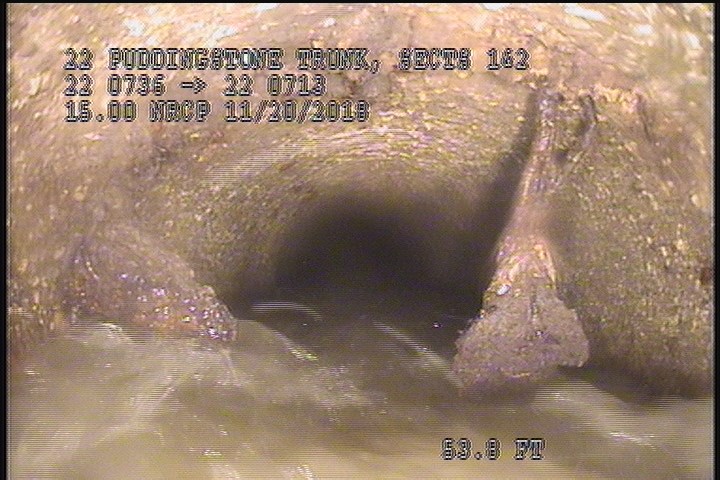

53.8 ft. - Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR

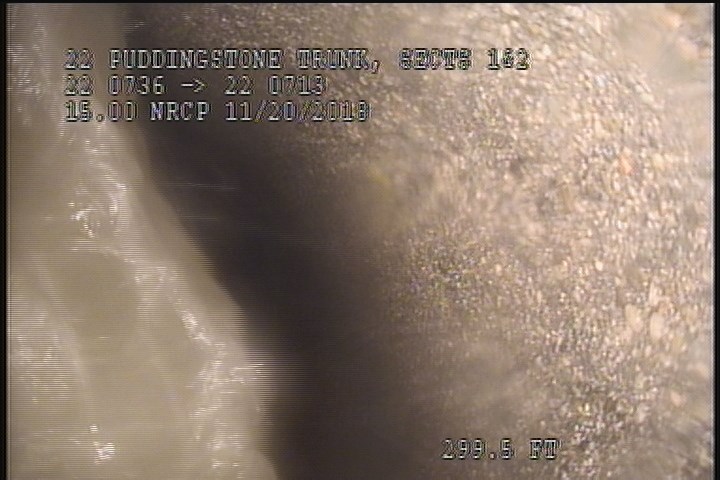

299.5 ft. - Water Level, Sag in pipe, 80 %of cross sectional area, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 53.8 | RMJ | — |
| 3.5 | SAV | — |
| 326.3 | AMH | MH 0713 |
| 299.5 | MWLS | — |
| 0 | MWL | — |
| 326.3 | SAV | — |
| 277.4 | TFA | — |
| 76.6 | TFA | — |
| 176.6 | TFA | — |
| 325.3 | MWLS | — |
| 0 | MWM | — |
| 3.5 | MGO | 50% MAG COAT INTACT |
| 0 | AMH | MH 0736 |
Properties (6)
- custom_field_three
- VISIBLE AGGREGATE
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-11-20T11:02:57-08:00
- documentation
- OBREGON, RUVALCABA, CASTILLO
- is_lateral_inspection
- false
