Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 16, 2018, 12:46 PM

  • 02 1758_02 1757A_11162018_045149.mp4

Date
11/16/2018
W/O
0739479
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00254
PipeID
P04103
Time
4:46 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1055R
Sewer Name
02 DOWNEY-BELLFLOWER EXTENSION TRUNK
City
MONTEBELLO
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
15
Purpose
Maintenance Related
Project
20181116MDM_DOWNEY_BELLFLOWER_EXTENSION_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
02 1758
Downstream MH
02 1757A
Dir. of Survey
Downstream
Length Surveyed
161.8 ft.
Total Length
161.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
4133
O&M Rating
21
Overall Index
2
Overall Quick
—
Overall Rating
21
Pipe schematic from manhole 02 1758 to 02 1757A
MH: 02 1758MH: 02 1757Adownstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:55AM0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Capped0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start51.6 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active59.9 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES74.6 ft. RMJ - Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR77.1 ft. RFJ - Roots Fine Joint, from 10 to 02 o'clock, within 8 inches of joint: YESR - 1%79.7 ft. RMJ - Roots Medium Joint, from 03 to 09 o'clock, 10 %, within 8 inches of joint: YESR, Start79.8 ft. MWM - Water Mark, 60 %of cross sectional area100 ft. TFD - Tap Factory Made Defective, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active-40% ROOTS100 ft. RML - Roots Medium Lateral, from 12 to 04 o'clock, 15 %, within 8 inches of joint: YES111.9 ft. RMJ - Roots Medium Joint, from 03 to 09 o'clock, 10 %, within 8 inches of joint: YESR, Finish113.7 ft. RFJ - Roots Fine Joint, from 03 to 05 o'clock, within 8 inches of joint: YESR - 3%161.1 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active161.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish161.8 ft. AMH - Downstream Manhole, Survey Ends - 5:10AM

Observation photos (2)

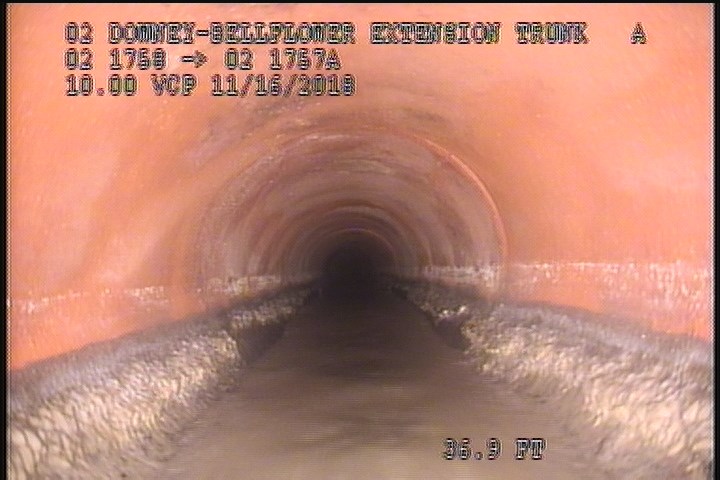

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

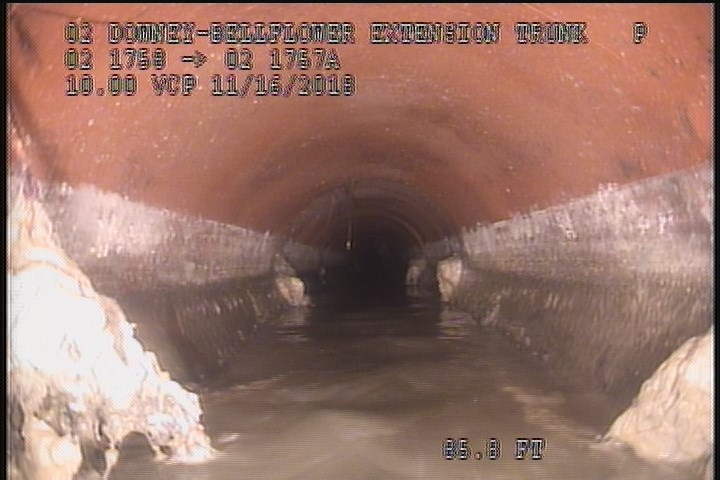

  • Roots Medium Joint, from 03 to 09 o'clock, 10 %, within 8 inches of joint: YESR, Start

    79.7 ft. - Roots Medium Joint, from 03 to 09 o'clock, 10 %, within 8 inches of joint: YESR, Start

All inspections of P04103Work order 0739479

Observations (18)

DistanceCodeObservation
74.6RMJ—
0AMH4:55AM
2DAGS—
59.9DAGS—
0MGOConn. @ Mh, 3 O' Clock. Capped
113.7RFJ3%
161.1MGOConn. @ Mh, 3 O' Clock. Active
161.8AMH5:10AM
0MWM—
100TFDActive-40% ROOTS
79.8MWM—
100RML—
0MWL—
161.1DAGS—
77.1RFJ1%
111.9RMJ—
51.6TFActive
79.7RMJ—

Properties (4)

customer
LACSD
datetime
2018-11-16T04:46:18-08:00
documentation
MARTIN,REVELES,OLIVER 111,BRAR
is_lateral_inspection
false
