Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 16, 2018, 12:03 PM

  • 02 1159_02 1158A_11162018_040608.mp4

Date
11/16/2018
W/O
0739479
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00254
PipeID
P04105
Time
4:03 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1055R
Sewer Name
02 DOWNEY-BELLFLOWER EXTENSION TRUNK
City
MONTEBELLO
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
15
Purpose
Maintenance Related
Project
20181116MDM_DOWNEY_BELLFLOWER_EXTENSION_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
02 1159
Downstream MH
02 1158A
Dir. of Survey
Downstream
Length Surveyed
283.7 ft.
Total Length
283.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2211
O&M Rating
5
Overall Index
2
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 02 1159 to 02 1158A
MH: 02 1159MH: 02 1158Adownstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:05AM0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Capped0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start11.8 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open34.9 ft. RFJ - Roots Fine Joint, from 10 to 02 o'clock, within 8 inches of joint: YESR - 4%93 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open142.9 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish142.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start221 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active283.2 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active283.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish283.7 ft. AMH - Downstream Manhole, Survey Ends - 4:25AM

Observation photos (1)

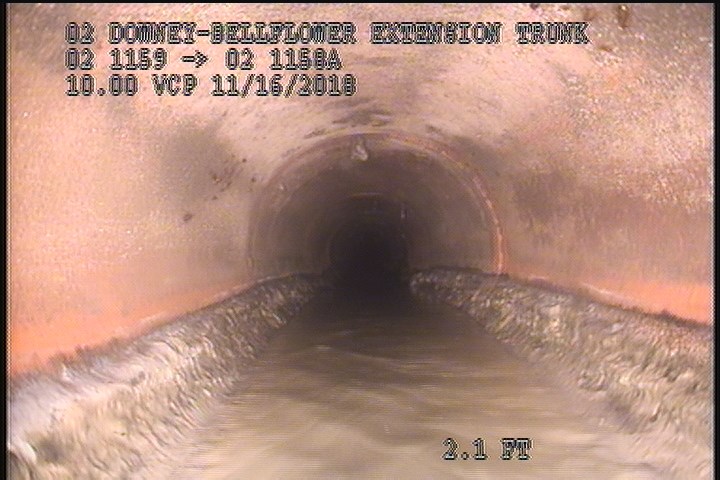

  • Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P04105Work order 0739479

Observations (15)

DistanceCodeObservation
142.9DAGS—
0MWM—
0AMH4:05AM
11.8TFOpen
0MGOConn. @ Mh, 9 O' Clock. Active
34.9RFJ4%
2DAGS—
93TFOpen
283.2MGOConn. @ Mh, 9 O' Clock. Active
283.2DAGS—
221TFActive
142.9DAGS—
0MGOConn. @ Mh, 3 O' Clock. Capped
283.7AMH4:25AM
0MWL—

Properties (4)

customer
LACSD
datetime
2018-11-16T04:03:29-08:00
documentation
MARTIN,REVELEVES,OLIVER 111,BRAR
is_lateral_inspection
false
