Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 16, 2018, 08:04 PM

  • 22 0752_22 0751_11162018_120647.mp4

Date
11/16/2018
W/O
0735393
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00821
PipeID
P17109
Time
12:04 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7855
Sewer Name
22 PUDDINGSTONE TRUNK, SECTS 1&2
City
SAN DIMAS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
22
Purpose
Capital Improvement Program Assesment
Project
20181116DF_PUDDINGSTONE_TRUNK_SECTS_1_2
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
22 0752
Downstream MH
22 0751
Dir. of Survey
Downstream
Length Surveyed
353.3 ft.
Total Length
353.3 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 22 0752 to 22 0751
MH: 22 0752MH: 22 0751downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:05 PM0 ft. MWM - Water Mark, 25 %of cross sectional area2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG8.7 ft. TBA - Tap Break-In Active, at 01 o'clock, -, within 8 inches of joint: YES, 4"51.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"90.1 ft. MGP - General Photograph104 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"152.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"204.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"256.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"304.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"335 ft. MGP - General Photograph349.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"350.5 ft. MGP - General Photograph - POSSIBLE HOLE351.4 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 65% MAG351.4 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish353 ft. IR - Infiltration Runner, at 10 o'clock, within 8 inches of joint: YES - @ MH353.3 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach353.3 ft. AMH - Downstream Manhole, Survey Ends - 12:34 PM353.3 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)

Observation photos (7)

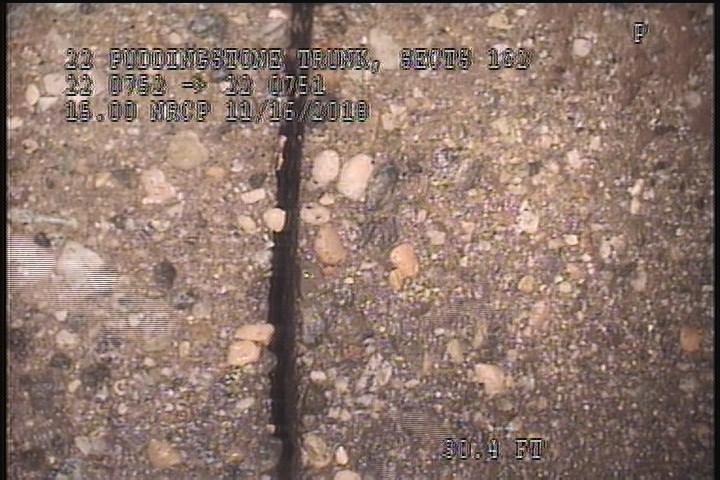

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

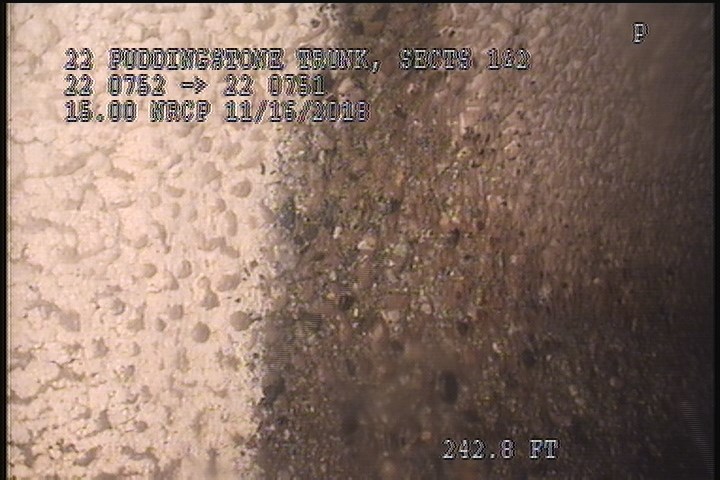

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG

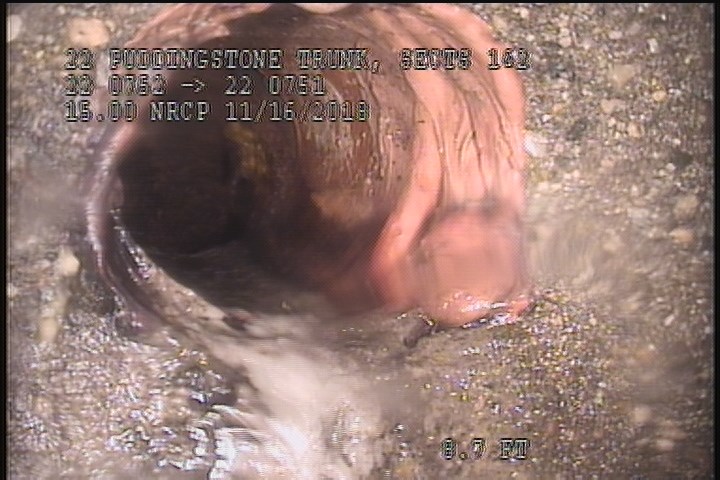

  • Tap Break-In Active, at 01 o'clock, -, within 8 inches of joint: YES, 4"

    8.7 ft. - Tap Break-In Active, at 01 o'clock, -, within 8 inches of joint: YES, 4"

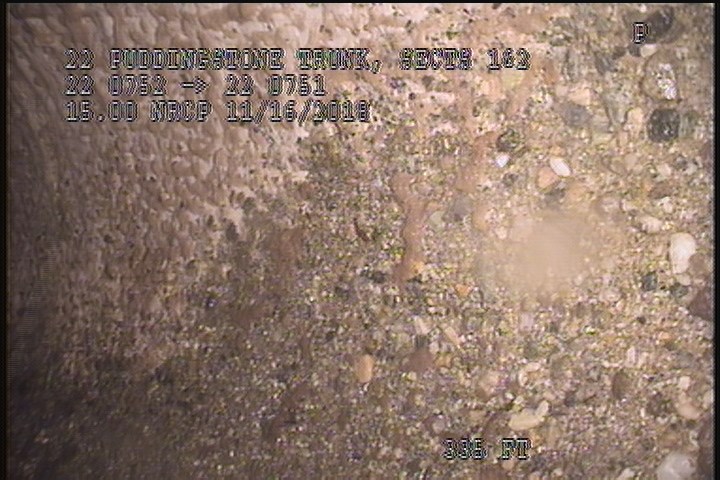

  • General Photograph

    90.1 ft. - General Photograph

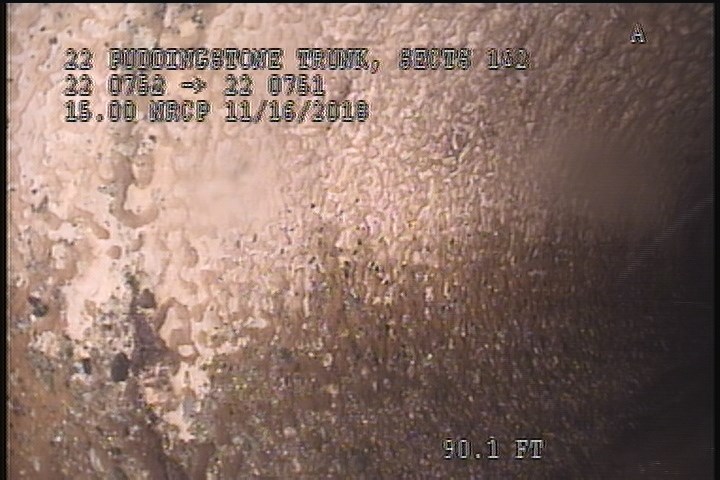

  • General Photograph

    335 ft. - General Photograph

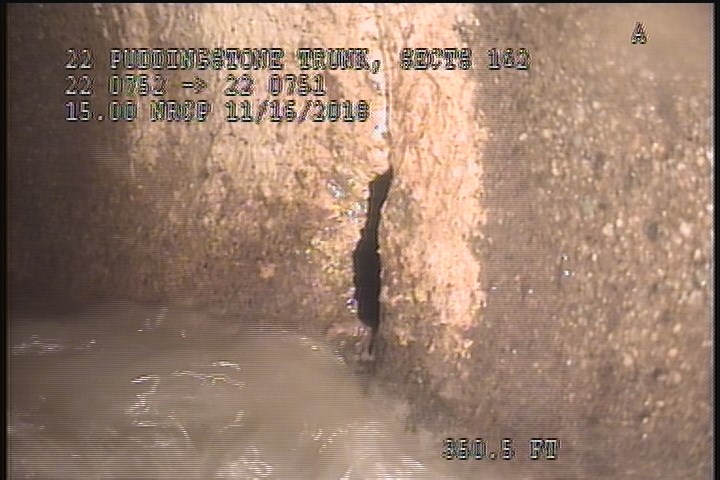

  • General Photograph - POSSIBLE HOLE

    350.5 ft. - General Photograph - POSSIBLE HOLE

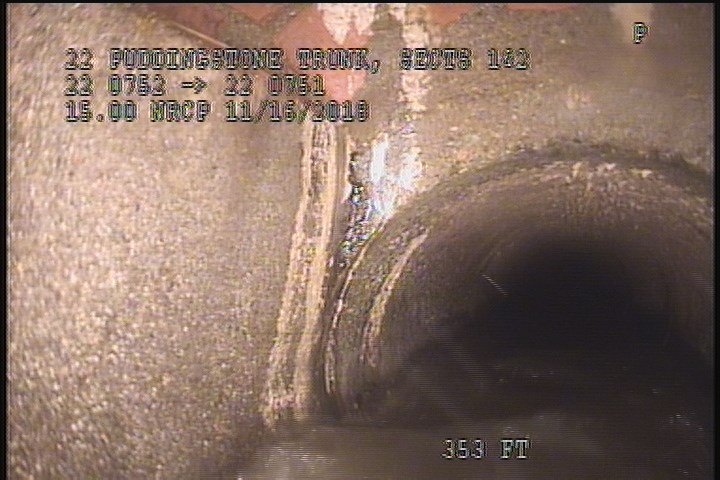

  • Infiltration Runner, at 10 o'clock, within 8 inches of joint: YES - @ MH

    353 ft. - Infiltration Runner, at 10 o'clock, within 8 inches of joint: YES - @ MH

All inspections of P17109Work order 0735393

Observations (22)

DistanceCodeObservation
2SAV—
353.3MGOPeeling & Flaking Throughout The Reach
51.9TFC—
2SZ65% MAG
351.4SZ65% MAG
350.5MGPPOSSIBLE HOLE
90.1MGP—
304.9TFC—
204.5TFC—
256.3TFC—
152.3TFC—
0MWL—
104TFC—
0AMH12:05 PM
353.3AMH12:34 PM
351.4SAV—
349.2TFA—
353.3MGOGREASE THROUGHOUT THE REACH (5%)
335MGP—
0MWM—
353IR@ MH
8.7TBA—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2018-11-16T12:04:40-08:00
documentation
FRANKLIN, CASTILLO, RUVALCABA
is_lateral_inspection
false
