Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 16, 2018, 07:37 PM

  • 22 0753_22 0752_11162018_114115.mp4

Date
11/16/2018
W/O
0735393
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00821
PipeID
P17110
Time
11:37 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7855
Sewer Name
22 PUDDINGSTONE TRUNK, SECTS 1&2
City
SAN DIMAS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
22
Purpose
Capital Improvement Program Assesment
Project
20181116DF_PUDDINGSTONE_TRUNK_SECTS_1_2
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
22 0753
Downstream MH
22 0752
Dir. of Survey
Downstream
Length Surveyed
351.9 ft.
Total Length
351.9 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 22 0753 to 22 0752
MH: 22 0753MH: 22 0752downstream0 ft. AMH - Upstream Manhole, Survey Begins - 11:38 AM0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start48.4 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"101.5 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"148.9 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"156.1 ft. MGP - General Photograph156.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, at 08 o'clock, , within 8 inches of joint: YES201.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Open210.4 ft. MGP - General Photograph227.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES249.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"301 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"346.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"350.3 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 65% MAG350.3 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)350.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish350.3 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach351.9 ft. AMH - Downstream Manhole, Survey Ends - 12:04 PM

Observation photos (5)

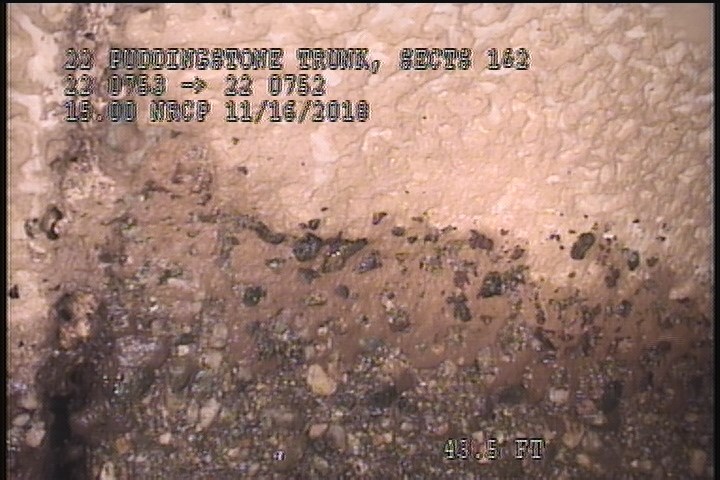

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

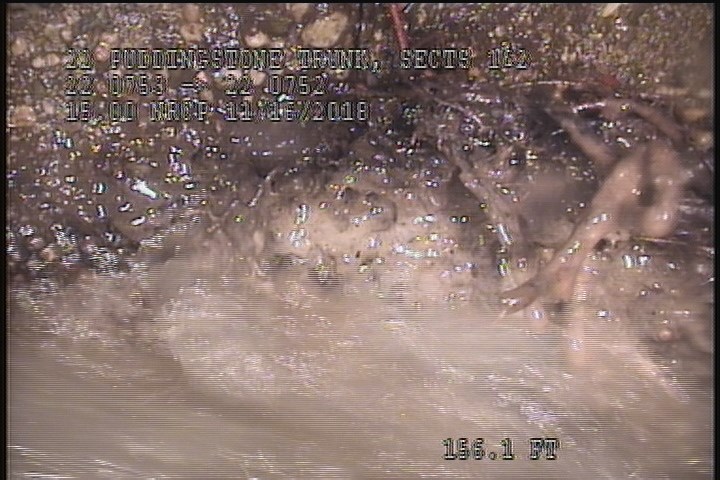

  • General Photograph

    156.1 ft. - General Photograph

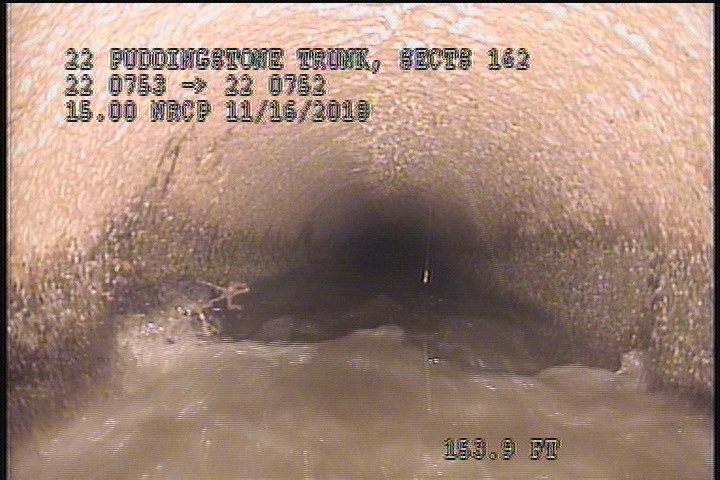

  • Deposits Attached Grease, 5 %of cross sectional area, at 08 o'clock, , within 8 inches of joint: YES

    156.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, at 08 o'clock, , within 8 inches of joint: YES

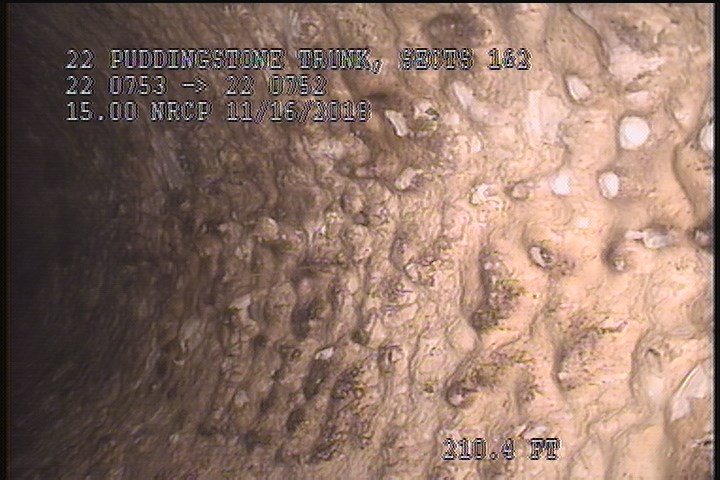

  • General Photograph

    210.4 ft. - General Photograph

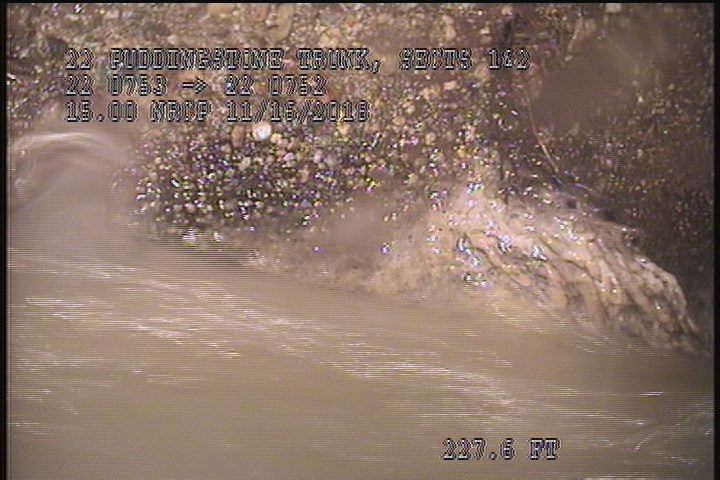

  • Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

    227.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

All inspections of P17110Work order 0735393

Observations (21)

DistanceCodeObservation
156.1MGP—
249.3TFC—
350.3SZ65% MAG
2SZ65% MAG
2SAV—
48.4TFC—
0AMH11:38 AM
301TFC—
346.2TFC—
350.3MGOGREASE THROUGHOUT THE REACH (5%)
350.3SAV—
201.6TFOpen
227.6DAGS—
148.9TFC—
0MWL—
0MWM—
351.9AMH12:04 PM
156.1DAGS—
210.4MGP—
350.3MGOPeeling & Flaking Throughout The Reach
101.5TFC—

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2018-11-16T11:37:48-08:00
documentation
FRANKLIN, CASTILLO, RUVALCABA
is_lateral_inspection
false
