Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 16, 2018, 07:08 PM

  • 22 0754_22 0753_11162018_111048.mp4

Date
11/16/2018
W/O
0735393
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00821
PipeID
P17111
Time
11:08 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7855
Sewer Name
22 PUDDINGSTONE TRUNK, SECTS 1&2
City
SAN DIMAS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
22
Purpose
Capital Improvement Program Assesment
Project
20181116DF_PUDDINGSTONE_TRUNK_SECTS_1_2
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
22 0754
Downstream MH
22 0753
Dir. of Survey
Downstream
Length Surveyed
270.7 ft.
Total Length
270.7 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 22 0754 to 22 0753
MH: 22 0754MH: 22 0753downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 11:09 AM2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 30% MAG2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start14.8 ft. MGP - General Photograph18.6 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"59.1 ft. MGP - General Photograph70.9 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open119.2 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"161.9 ft. MGP - General Photograph171.4 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: YES, 4"197.8 ft. MGP - General Photograph197.8 ft. RFJ - Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YESR - 5%219.2 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"237.8 ft. MGP - General Photograph263.3 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"268.3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish268.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish268.3 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 60% MAG270.7 ft. AMH - Downstream Manhole, Survey Ends - 11:37 AM270.7 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach270.7 ft. MGO - General Observation - Mag Coat xx% 9 to 3 o' Clock Throughout

Observation photos (8)

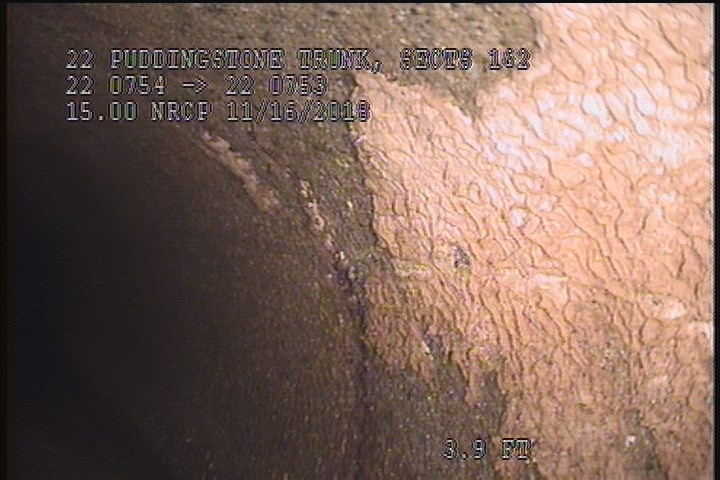

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 30% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 30% MAG

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

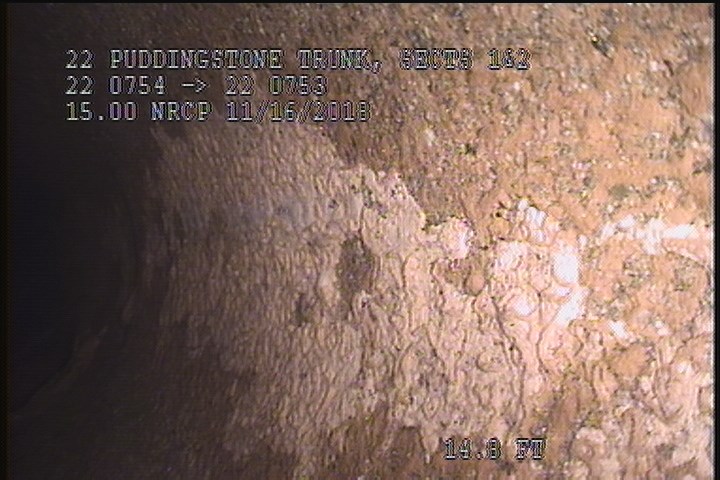

  • General Photograph

    14.8 ft. - General Photograph

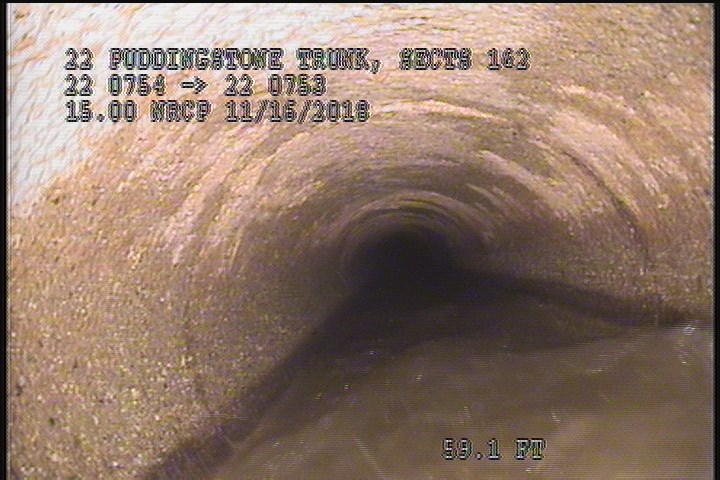

  • General Photograph

    59.1 ft. - General Photograph

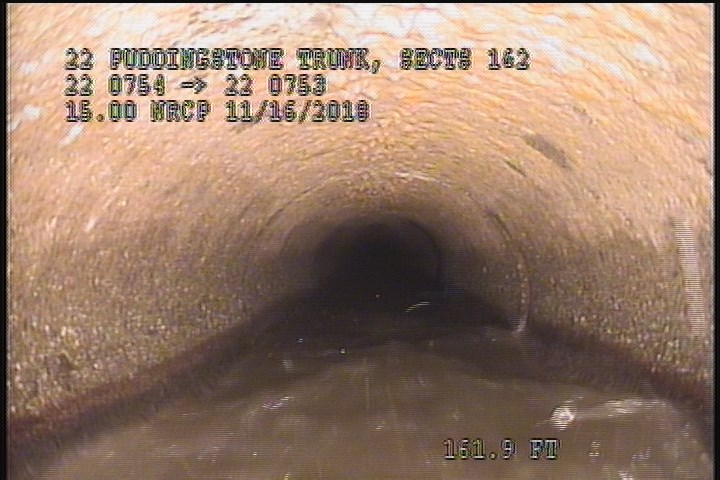

  • General Photograph

    161.9 ft. - General Photograph

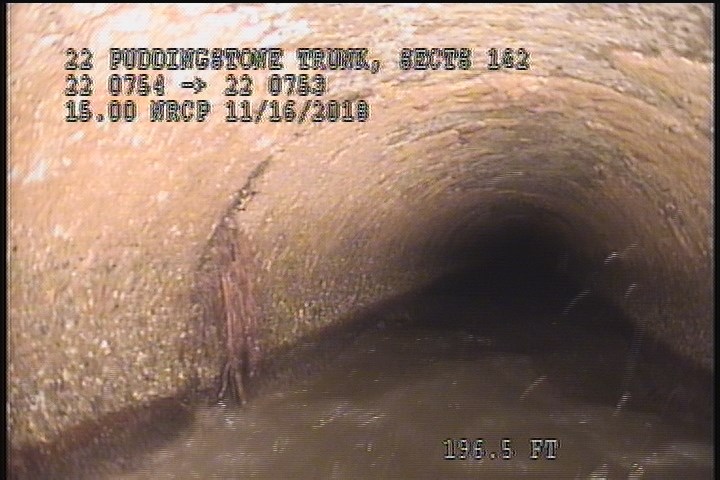

  • General Photograph

    197.8 ft. - General Photograph

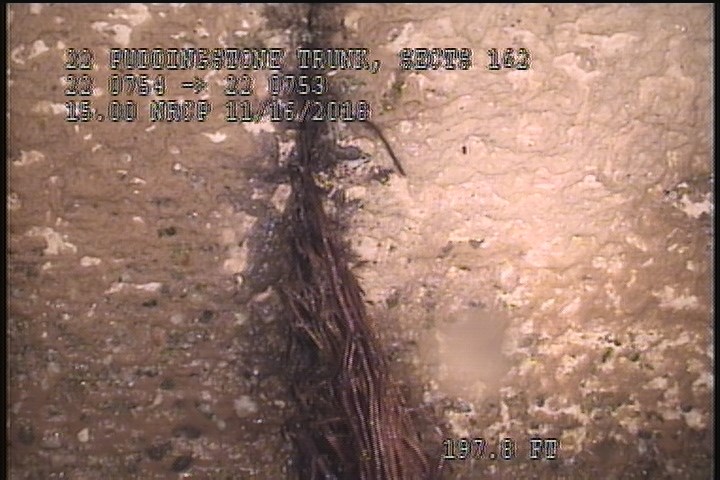

  • Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YESR - 5%

    197.8 ft. - Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YESR - 5%

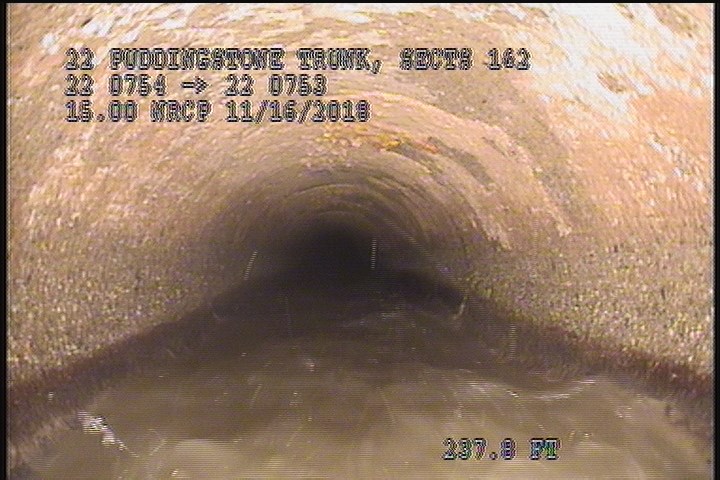

  • General Photograph

    237.8 ft. - General Photograph

All inspections of P17111Work order 0735393

Observations (24)

DistanceCodeObservation
219.2TFC—
197.8MGP—
268.3SSS—
263.3TFC—
14.8MGP—
270.7AMH11:37 AM
237.8MGP—
197.8RFJ5%
70.9TFOpen
270.7MGOPeeling & Flaking Throughout The Reach
0MWM—
270.7MGOMag Coat xx% 9 to 3 o' Clock Throughout
161.9MGP—
0MWL—
0AMH11:09 AM
119.2TFC—
2SZ30% MAG
2SAV—
268.3SAV—
59.1MGP—
18.6TFC—
2SSS—
171.4TFA—
268.3SZ60% MAG

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2018-11-16T11:08:58-08:00
documentation
FRANKLIN, CASTILLO, RUVALCABA
is_lateral_inspection
false
