Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 16, 2018, 08:59 AM

  • 02 1147_02 1146_11162018_015401.mp4

Date
11/16/2018
W/O
0738919
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00351
PipeID
P02931
Time
12:59 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1054R
Sewer Name
02 GARFIELD AVENUE EXTENSION TRUNK
City
MONTEBELLO
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
13
Purpose
Maintenance Related
Project
20181115MDM_GARFIELD_AVENUE_EXTENSION_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
02 1147
Downstream MH
02 1146
Dir. of Survey
Downstream
Length Surveyed
290.5 ft.
Total Length
290.5 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
4
O&M Quick
5131
O&M Rating
8
Overall Index
4
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole 02 1147 to 02 1146
MH: 02 1147MH: 02 1146downstream0 ft. MWM - Water Mark, 90 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:50AM0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MWL - Water Level, 50 %of cross sectional area3 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: NO8 ft. MWLS - Water Level, Sag in pipe, 40 %of cross sectional area47.9 ft. MGO - General Observation - 10" VCP+CIPP47.9 ft. MWL - Water Level, 10 %of cross sectional area47.9 ft. MWM - Water Mark, 40 %of cross sectional area125.8 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: YES, 6", 6" - Open290 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active290.5 ft. AMH - Downstream Manhole, Survey Ends - 2:20AM

Observation photos (2)

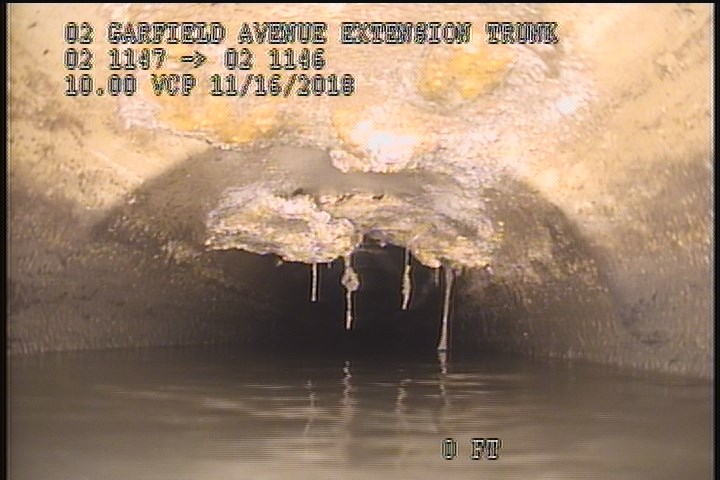

  • Deposits Attached Grease, 15 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: NO

    3 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: NO

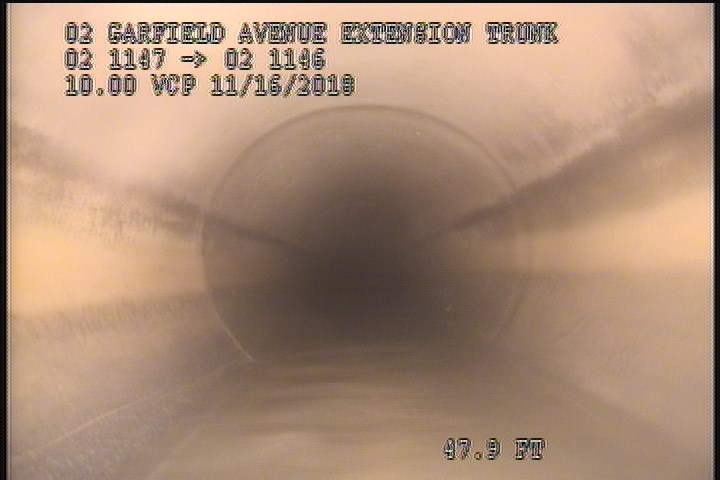

  • General Observation - 10" VCP+CIPP

    47.9 ft. - General Observation - 10" VCP+CIPP

All inspections of P02931Work order 0738919

Observations (13)

DistanceCodeObservation
47.9MGO10" VCP+CIPP
0MWM—
290MGOConn. @ Mh, 3 O' Clock. Active
0AMH1:50AM
0MGOConn. @ Mh, 3 O' Clock. Active
0MGOConn. @ Mh, 9 O' Clock. Active
290.5AMH2:20AM
3DAGS—
8MWLS—
47.9MWL—
47.9MWM—
0MWL—
125.8TBOpen

Properties (6)

additional_info
POST GREASE CCTV
customer
LACSD
datetime
2018-11-16T00:59:37-08:00
documentation
MARTIN,REVELES,OLIVER 111,BRAR
is_lateral_inspection
false
lining
CIPP
