Wastewater/Activity/PacpInspection/1.0Nov 13, 2018, 08:24 AM
05 1686_05 1685_11132018_011249.mp4
- Date
- 11/13/2018
- W/O
- O734333
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00471
- PipeID
- P06915
- Time
- 12:24 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H1049
- Sewer Name
- 05 LOMITA TRUNK
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 16
- Purpose
- Capital Improvement Program Assesment
- Project
- 20181113MDM_LOMITA_TRUNK
- Material
- CIP
- Shape
- Circular
- Height
- 16 in.
- Upstream MH
- 05 1686
- Downstream MH
- 05 1685
- Dir. of Survey
- Downstream
- Length Surveyed
- 7.5 ft.
- Total Length
- 7.5 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 5
- O&M Quick
- 5200
- O&M Rating
- 10
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 16
Observation photos (4)

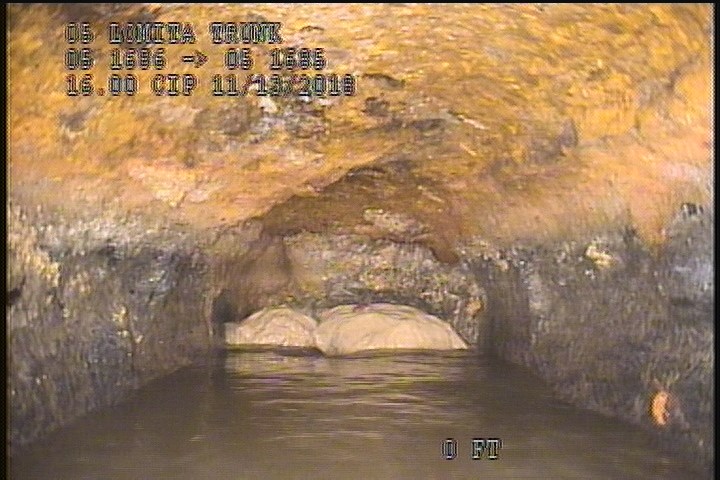

2 ft. - Surface Corrosion Metal Pipe, from 10 to 02 o'clock, within 8 inches of joint: YES, Change - 10% MISSING PIPE

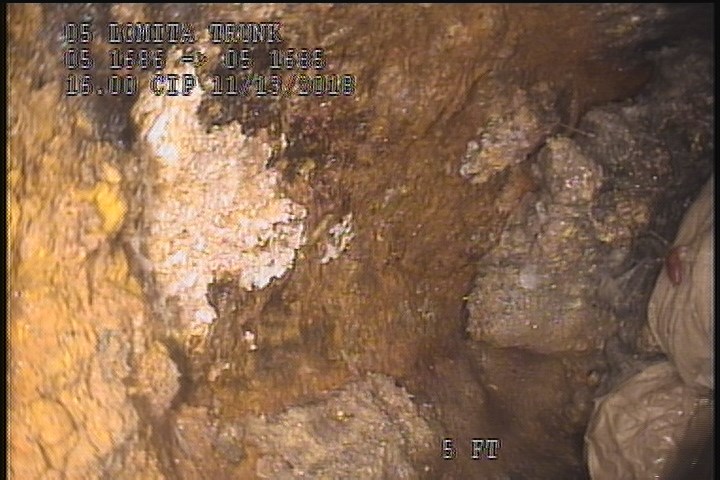

5 ft. - Surface Corrosion Metal Pipe, from 10 to 02 o'clock, within 8 inches of joint: NO - 30% MISSING PIPE

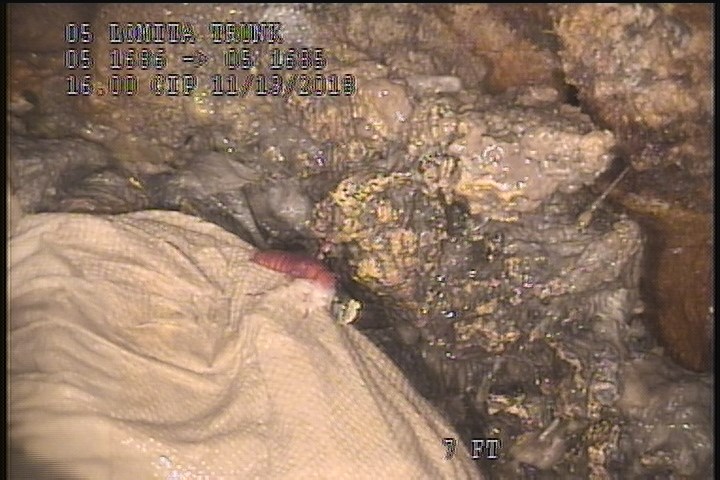

7 ft. - General Photograph

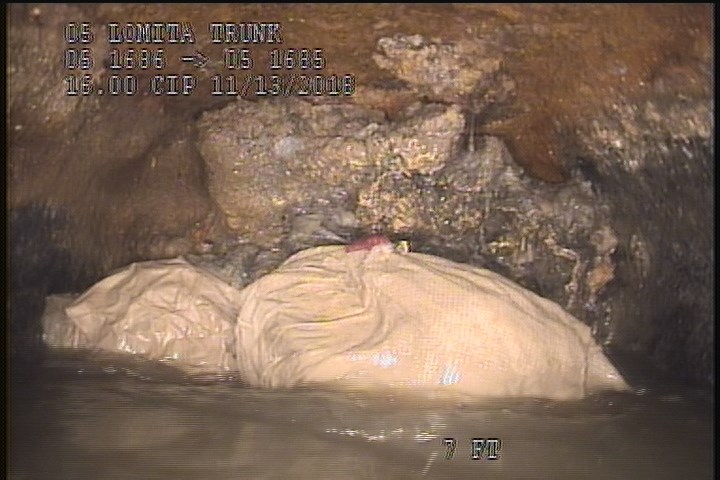

7 ft. - Deposits Settled Other, 90 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: NO - SLUDGE PAPER
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 12:55AM |
| 0 | MWM | — |
| 2 | SCP | 10% MISSING PIPE |
| 5 | SCP | 30% MISSING PIPE |
| 0 | MGO | Conn. @ Mh, 9 O' Clock. Active-OUTGOING |
| 7 | MGP | — |
| 0 | MWL | — |
| 7.5 | MSA | 90% SLUDGE |
| 7 | DSZ | SLUDGE PAPER |
Properties (4)
- customer
- LACSD
- datetime
- 2018-11-13T00:24:48-08:00
- documentation
- MARTIN,REVELES,OLIVER 111,BRAR
- is_lateral_inspection
- false
