Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 13, 2018, 05:44 PM

  • 29 0148_29 0147_11132018_100750.mp4

Date
11/13/2018
W/O
0737453
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00378
PipeID
P24042
Time
9:44 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7851
Sewer Name
29 REDONDO AVENUE TRUNK
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Capital Improvement Program Assesment
Project
20181113DF_REDONDO_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0148
Downstream MH
29 0147
Dir. of Survey
Downstream
Length Surveyed
29 ft.
Total Length
29 ft.
Structural Index
2
Structural Quick
3122
Structural Rating
7
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 29 0148 to 29 0147
MH: 29 0148MH: 29 0147downstream0 ft. AMH - Upstream Manhole, Survey Begins - 10:03 AM0.1 ft. MWM - Water Mark, 15 %of cross sectional area0.1 ft. MWL - Water Level, 10 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start3 ft. FC - Fracture Circumferential, from 01 to 05 o'clock, within 8 inches of joint: YES28 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish28 ft. MGO - General Observation - Grease Throughout The Reach (5%)28 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish28.5 ft. TBA - Tap Break-In Active, at 09 o'clock, -, within 8 inches of joint: YES, 4"28.9 ft. MGP - General Photograph29 ft. MSA - Survey Abandoned - SLOPE GRADE IS TOO STEEP

Observation photos (5)

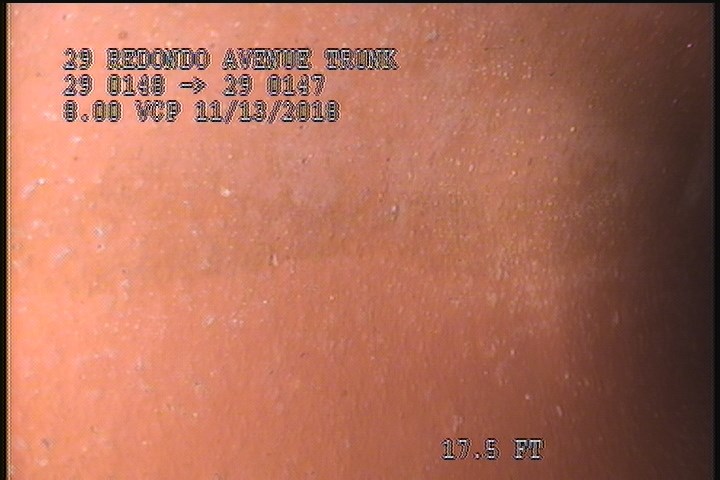

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

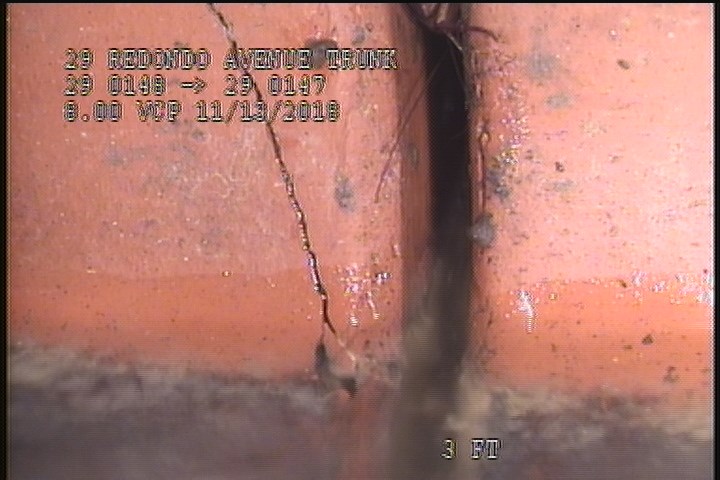

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

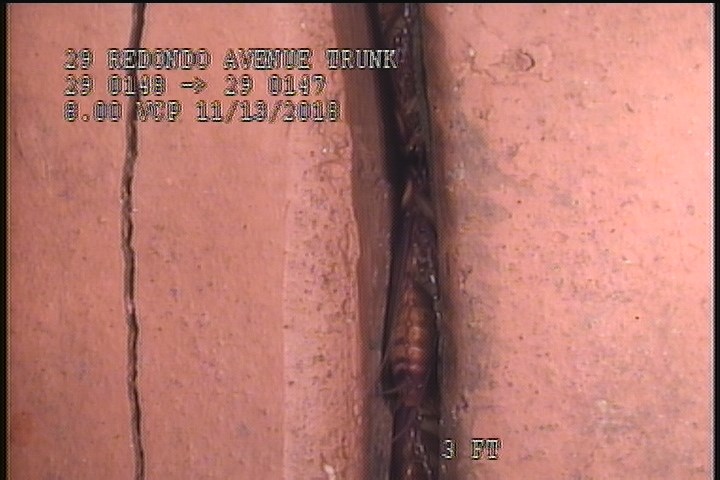

  • Fracture Circumferential, from 01 to 05 o'clock, within 8 inches of joint: YES

    3 ft. - Fracture Circumferential, from 01 to 05 o'clock, within 8 inches of joint: YES

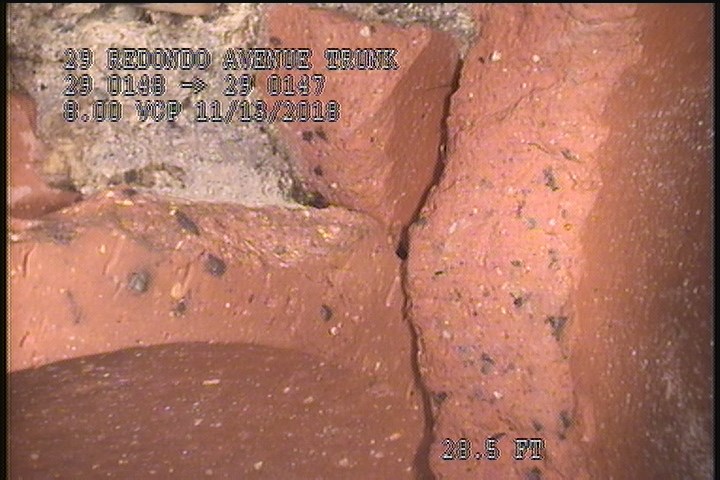

  • Tap Break-In Active, at 09 o'clock, -, within 8 inches of joint: YES, 4"

    28.5 ft. - Tap Break-In Active, at 09 o'clock, -, within 8 inches of joint: YES, 4"

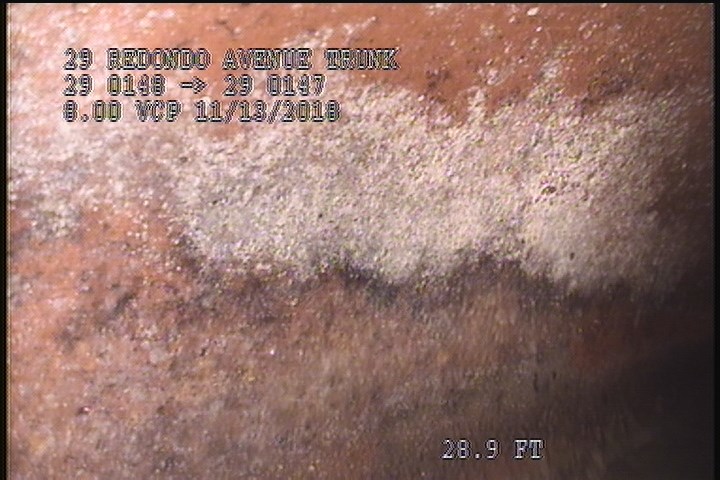

  • General Photograph

    28.9 ft. - General Photograph

All inspections of P24042Work order 0737453

Observations (12)

DistanceCodeObservation
0.1MWM—
28CM—
0.1MWL—
29MSASLOPE GRADE IS TOO STEEP
28MGOGrease Throughout The Reach (5%)
0AMH10:03 AM
28.9MGP—
3FC—
2SSS—
28SSS—
2CM—
28.5TBA—

Properties (6)

additional_info
@ 29' THERE IS A STEEP DROP AND THE CAMERA COULDN'T MAKE IT DOWN THE OFFSET
custom_field_two
5
customer
LACSD
datetime
2018-11-13T09:44:10-08:00
documentation
FRANKLIN, CASTILLO, SHADLER, RUVALCABA
is_lateral_inspection
false
