Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 19, 2018, 08:18 AM

  • 05 0423_05 0422A_11192018_003257.mp4

Date
11/19/2018
W/O
0738560
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00499
PipeID
P21321
Time
12:18 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1056
Sewer Name
05 OAK STREET-CENTER AVENUE RELIEF TRUNK
City
INGLEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
06
Purpose
Routine Assessment
Project
20181109MDM_OAK_STREET_CENTER_AVENUE_RELIEF_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
05 0423
Downstream MH
05 0422A
Dir. of Survey
Downstream
Length Surveyed
115.9 ft.
Total Length
115.9 ft.
Structural Index
2
Structural Quick
2300
Structural Rating
6
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 05 0423 to 05 0422A
MH: 05 0423MH: 05 0422Adownstream0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:35AM2 ft. MGO - General Observation - MAG COAT 70% START 9:00 TO 3:002 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING FLAKING CONCRETE2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start8 ft. MGP - General Photograph - MAG COAT35.1 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - PEELING CONCRETE81.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - PEELING CONCRETE115.6 ft. MGO - General Observation - MAG COAT 70% FINISH115.6 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - PEELING FLAKING CONCRETE115.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Finish115.6 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active115.9 ft. AMH - Downstream Manhole, Survey Ends - 12:55AM

Observation photos (6)

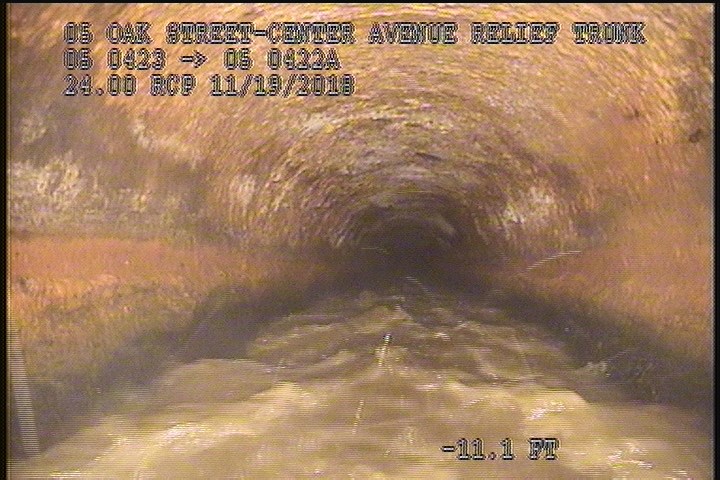

  • General Observation - MAG COAT 70% START 9:00 TO 3:00

    2 ft. - General Observation - MAG COAT 70% START 9:00 TO 3:00

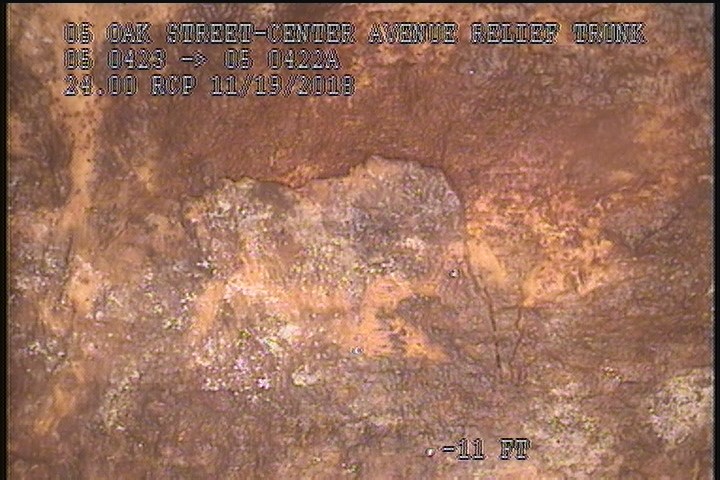

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING FLAKING CONCRETE

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING FLAKING CONCRETE

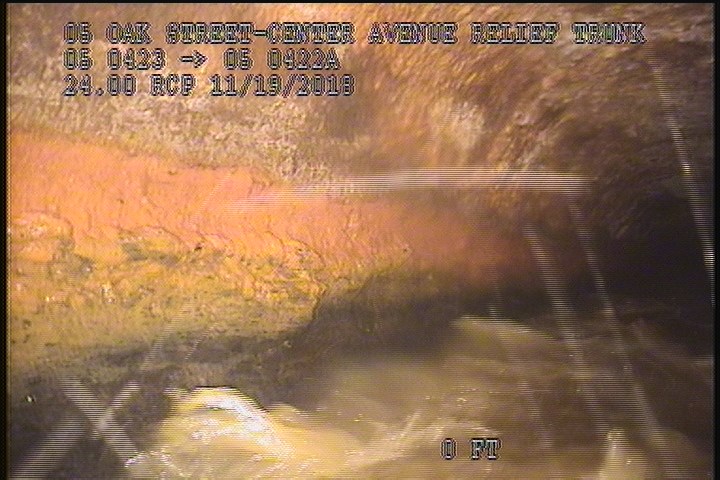

  • Deposits Attached Grease, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

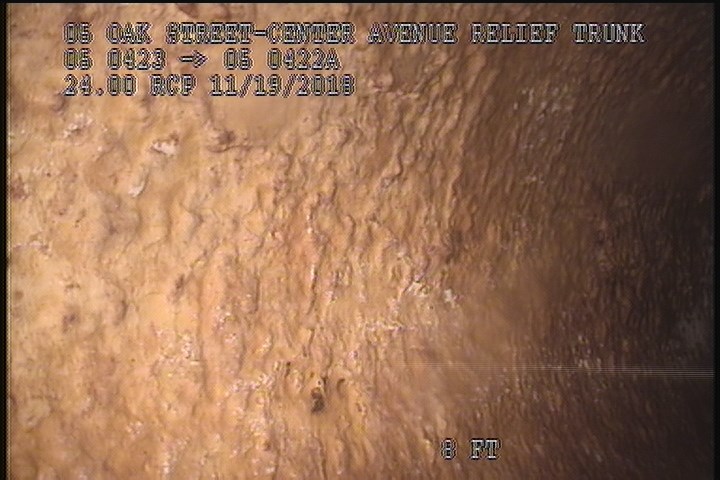

  • General Photograph - MAG COAT

    8 ft. - General Photograph - MAG COAT

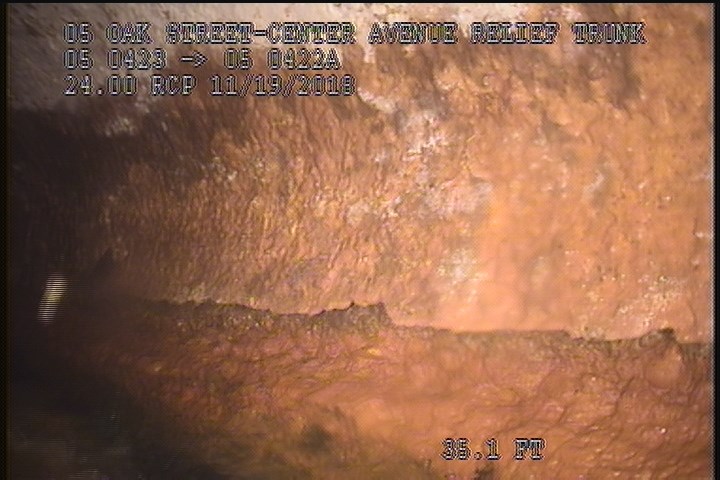

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - PEELING CONCRETE

    35.1 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - PEELING CONCRETE

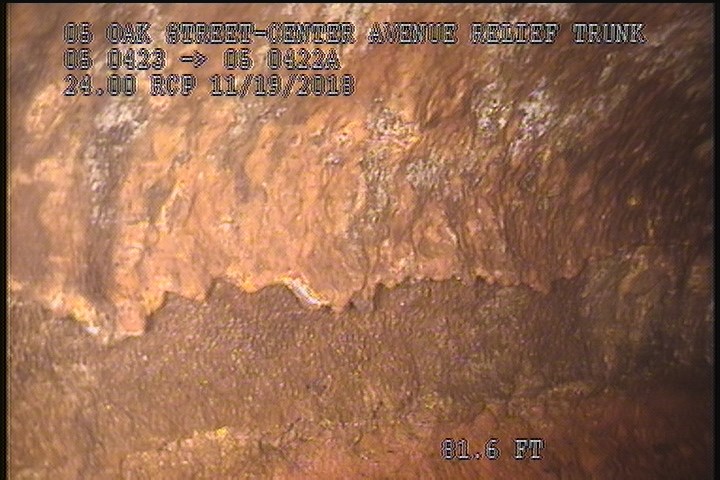

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - PEELING CONCRETE

    81.6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - PEELING CONCRETE

All inspections of P21321Work order 0738560

Observations (14)

DistanceCodeObservation
35.1SSSPEELING CONCRETE
115.6MGOMAG COAT 70% FINISH
0MWM—
81.6SSSPEELING CONCRETE
2MGOMAG COAT 70% START 9:00 TO 3:00
2SSSPEELING FLAKING CONCRETE
0MWL—
115.6SSSPEELING FLAKING CONCRETE
115.6DAGS—
8MGPMAG COAT
0AMH12:35AM
115.9AMH12:55AM
115.6MGOConn. @ Mh, 3 O' Clock. Active
2DAGS—

Properties (6)

custom_field_three
PEELING FLAKING CONCRETE-70% MAG COAT
custom_field_two
4
customer
LACSD
datetime
2018-11-19T00:18:45-08:00
documentation
MARTIN,REVELES,OLIVER 111,BRAR
is_lateral_inspection
false
