Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 13, 2018, 12:51 PM

  • 05 0429_05 0528_11132018_050924.mp4

  • 05 0429_05 0528_11132018_050924.mp4

Date
11/13/2018
W/O
0738560
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00499
PipeID
P05627
Time
4:51 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1048
Sewer Name
05 OAK STREET-CENTER AVENUE RELIEF TRUNK
City
INGLEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
06
Purpose
Routine Assessment
Project
20181109MDM_OAK_STREET_CENTER_AVENUE_RELIEF_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Upstream MH
05 0429
Downstream MH
05 0428
Dir. of Survey
Downstream
Length Surveyed
47.9 ft.
Total Length
47.9 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 05 0429 to 05 0428
MH: 05 0429MH: 05 0428downstream0 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:05AM2 ft. MGO - General Observation - MAG COAT 99% START2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - FLAKING CONCRETE47.6 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - FLAKING CONCRETE47.6 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active47.6 ft. MGO - General Observation - 99% MAG COAT FINISH47.9 ft. AMH - Downstream Manhole, Survey Ends - 5:15AM

Observation photos (2)

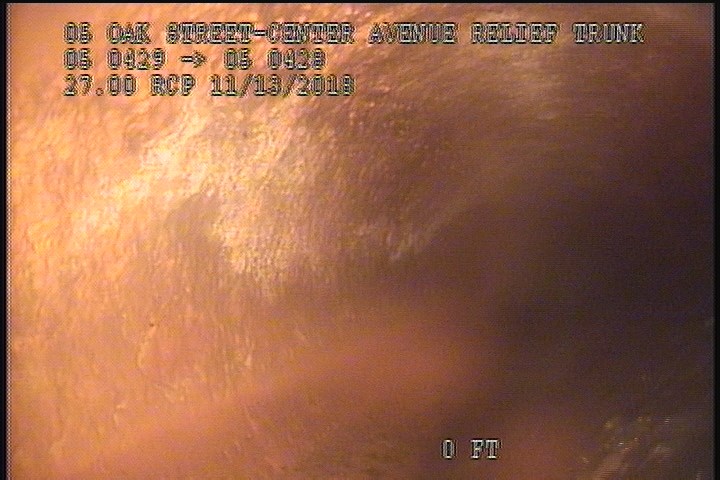

  • General Observation - MAG COAT 99% START

    2 ft. - General Observation - MAG COAT 99% START

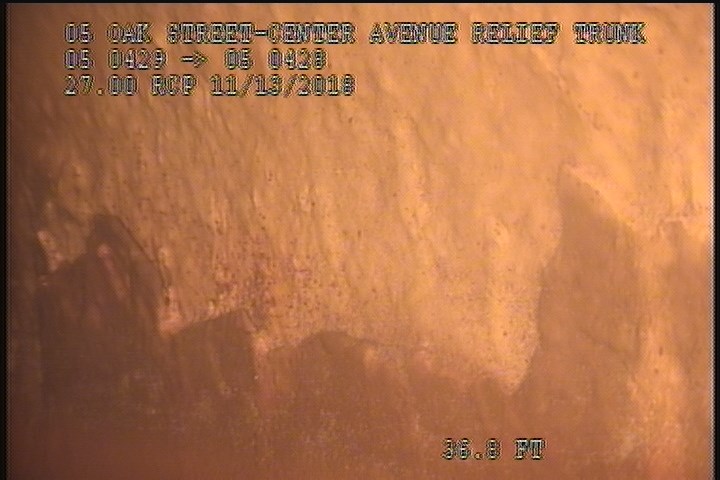

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - FLAKING CONCRETE

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - FLAKING CONCRETE

All inspections of P05627Work order 0738560

Observations (9)

DistanceCodeObservation
0MWM—
47.6SSSFLAKING CONCRETE
2MGOMAG COAT 99% START
47.9AMH5:15AM
47.6MGOConn. @ Mh, 3 O' Clock. Active
0MWL—
2SSSFLAKING CONCRETE
47.6MGO99% MAG COAT FINISH
0AMH5:05AM

Properties (6)

custom_field_three
FLAKING CONCRETE -99% MAG COAT
custom_field_two
4
customer
LACSD
datetime
2018-11-13T04:51:04-08:00
documentation
MARTIN,REVELES,OLIVER 111,BRAR
is_lateral_inspection
false
