Wastewater/Activity/PacpInspection/1.0Nov 9, 2018, 10:37 AM
05 0433_05 0432_1192018_024510.mp4
- Date
- 11/09/2018
- W/O
- 0738560
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00499
- PipeID
- P05631
- Time
- 2:37 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H1047
- Sewer Name
- 05 OAK STREET-CENTER AVENUE RELIEF TRUNK
- City
- INGLEWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- 20181109MDM_OAK_STREET_CENTER_AVENUE_RELIEF_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- 05 0433
- Downstream MH
- 05 0432
- Dir. of Survey
- Downstream
- Length Surveyed
- 120.7 ft.
- Total Length
- 120.7 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

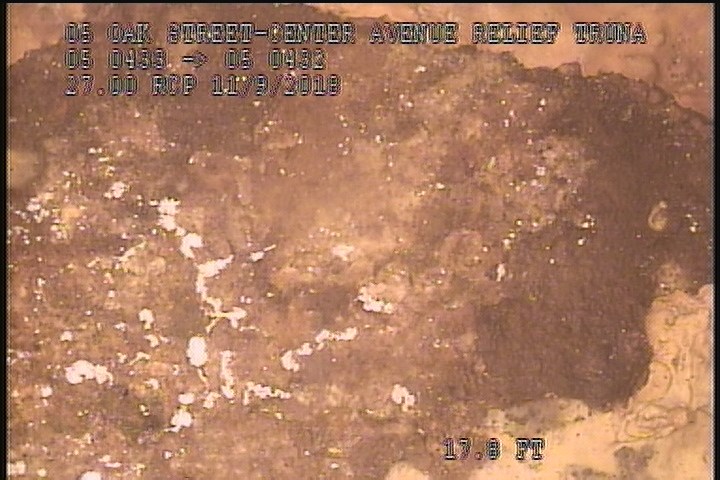

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - FLAKING CONCRETE

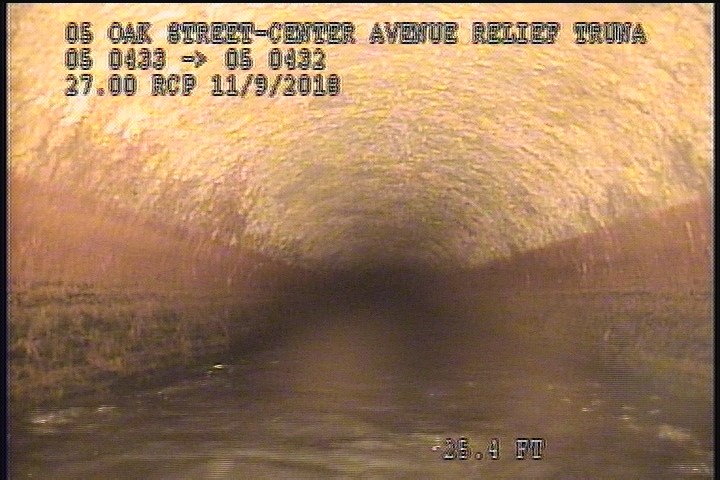

2 ft. - General Observation - MAG COAT 98% START 9:00 TO 3:00

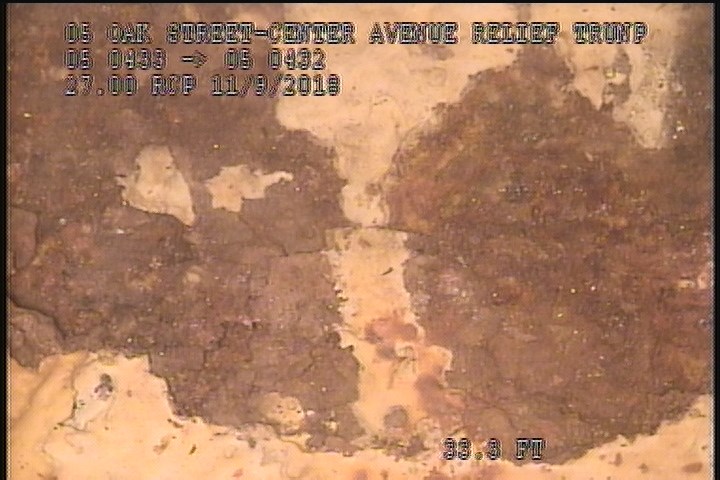

33.3 ft. - Surface Spalling, from 02 to 03 o'clock, within 8 inches of joint: NO - FLAKING CONCRETE
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 120.7 | AMH | 3:10AM |
| 0 | MWM | — |
| 0 | AMH | 2:45AM |
| 2 | SSS | FLAKING CONCRETE |
| 33.3 | SSS | FLAKING CONCRETE |
| 0 | MWL | — |
| 120.1 | MGO | MAG COAT 98% FINISH |
| 120.1 | SSS | FLAKING CONCRETE |
| 2 | MGO | MAG COAT 98% START 9:00 TO 3:00 |
Properties (6)
- custom_field_three
- FLAKING CONCRETE 98% MAG COAT
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-11-09T02:37:09-08:00
- documentation
- MARTIN,OLIVER 111,BRAR
- is_lateral_inspection
- false
