Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 9, 2018, 02:55 PM

  • 03 0623_03 0622_1192018_071857.mp4

Date
11/09/2018
W/O
0662165
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00389
PipeID
P22206
Time
6:55 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7849
Sewer Name
03 NORTH LONG BEACH RELIEF TRUNK
City
LONG BEACH
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
18
Purpose
Routine Assessment
Project
20181109DF_NORTH_LONG_BEACH_RELIEF_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
30 in.
Upstream MH
03 0623
Downstream MH
03 0622
Dir. of Survey
Downstream
Length Surveyed
146.9 ft.
Total Length
146.9 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole 03 0623 to 03 0622
MH: 03 0623MH: 03 0622downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 7:18 AM12.8 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start31.3 ft. MGP - General Photograph102.5 ft. MGP - General Photograph121.5 ft. MGP - General Photograph139.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES139.6 ft. IR - Infiltration Runner, at 09 o'clock, within 8 inches of joint: YES139.6 ft. IW - Infiltration Weeper, at 01 o'clock, within 8 inches of joint: YES144.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish146.9 ft. MGO - General Observation - Grease Throughout The Reach (5%)146.9 ft. AMH - Downstream Manhole, Survey Ends - 7:39 AM

Observation photos (8)

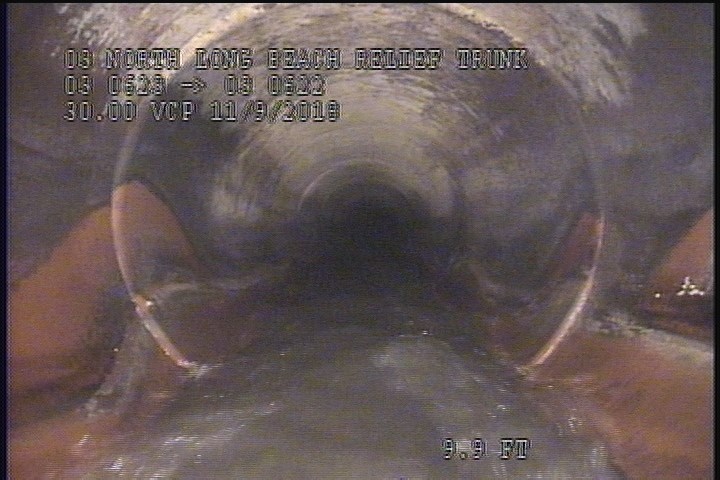

  • Water Level, 20 %of cross sectional area

    0 ft. - Water Level, 20 %of cross sectional area

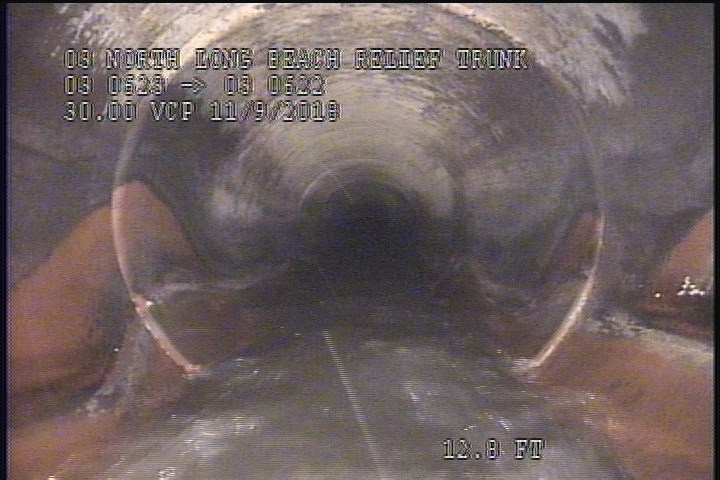

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    12.8 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

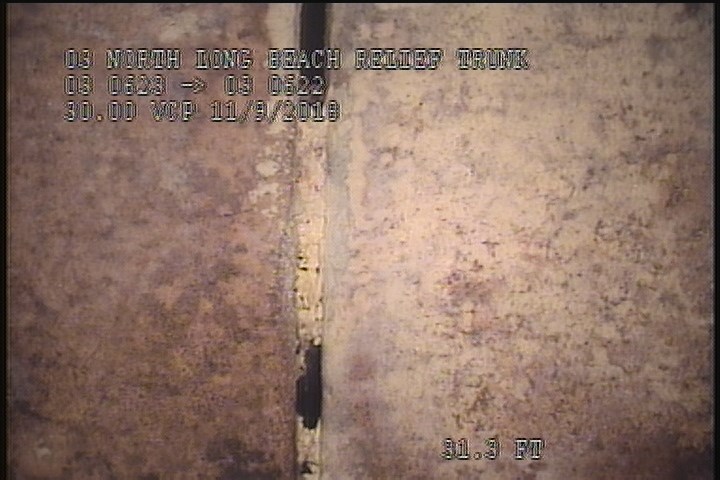

  • General Photograph

    31.3 ft. - General Photograph

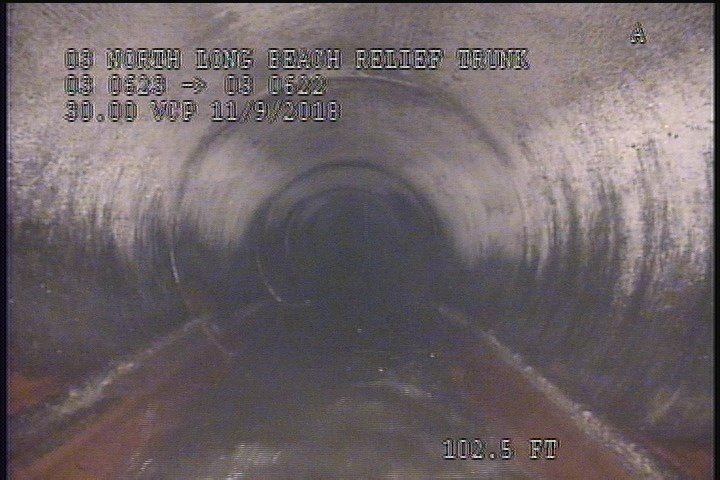

  • General Photograph

    102.5 ft. - General Photograph

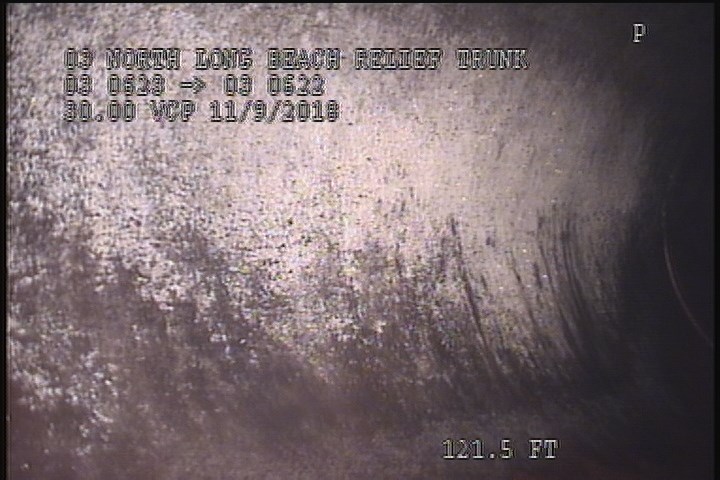

  • General Photograph

    121.5 ft. - General Photograph

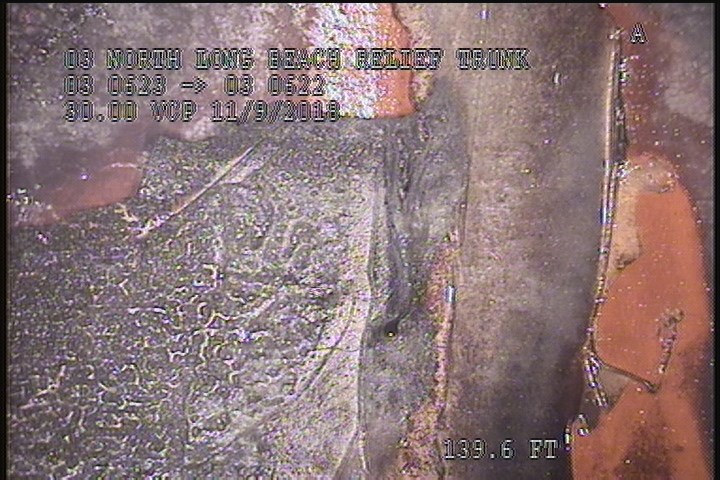

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    139.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

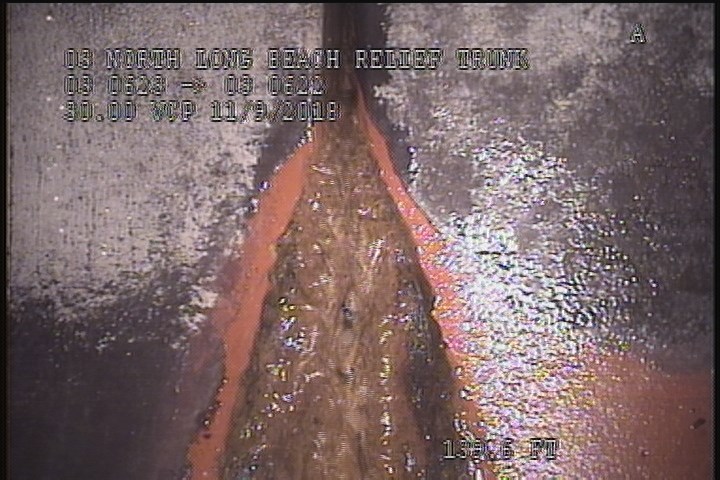

  • Infiltration Runner, at 09 o'clock, within 8 inches of joint: YES

    139.6 ft. - Infiltration Runner, at 09 o'clock, within 8 inches of joint: YES

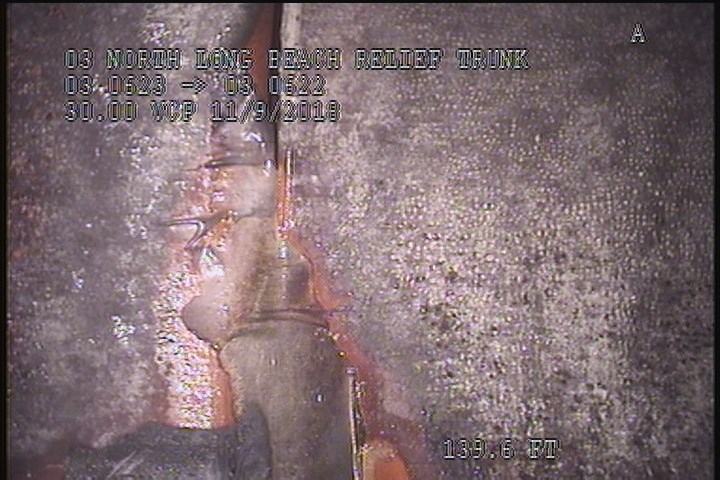

  • Infiltration Weeper, at 01 o'clock, within 8 inches of joint: YES

    139.6 ft. - Infiltration Weeper, at 01 o'clock, within 8 inches of joint: YES

All inspections of P22206Work order 0662165

Observations (13)

DistanceCodeObservation
139.6CM—
0MWL—
146.9MGOGrease Throughout The Reach (5%)
12.8SSS—
0MWM—
144.7SSS—
121.5MGP—
31.3MGP—
139.6IR—
102.5MGP—
139.6IW—
146.9AMH7:39 AM
0AMH7:18 AM

Properties (6)

additional_info
GUSHER @ 139' (9 0'CLOCK)
custom_field_two
2
customer
LACSD
datetime
2018-11-09T06:55:25-08:00
documentation
FRANKLIN, CASTILLO, RUVALCABA, YOUNG
is_lateral_inspection
false
