Wastewater/Activity/PacpInspection/1.0Oct 30, 2018, 08:46 AM
22 1445_22 0153 _30102018_014646.mp4
- Date
- 10/30/2018
- W/O
- 734336
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00805
- PipeID
- P16396
- Time
- 1:46 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6188
- Sewer Name
- 22 DISTRICT #22 MAIN TRUNK
- City
- COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 27
- Purpose
- Routine Assessment
- Project
- WO_734336_TV22033_NOV2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 22 0153
- Downstream MH
- 22 1445
- Dir. of Survey
- Upstream
- Length Surveyed
- 361.8 ft.
- Total Length
- 361.8 ft.
- Structural Index
- 3
- Structural Quick
- 3M2M
- Structural Rating
- 355
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 144
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 499
Observation photos (4)

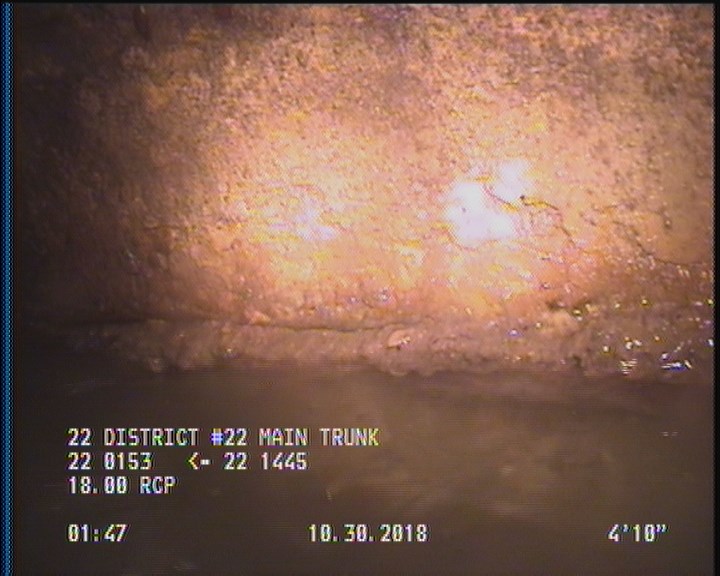

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

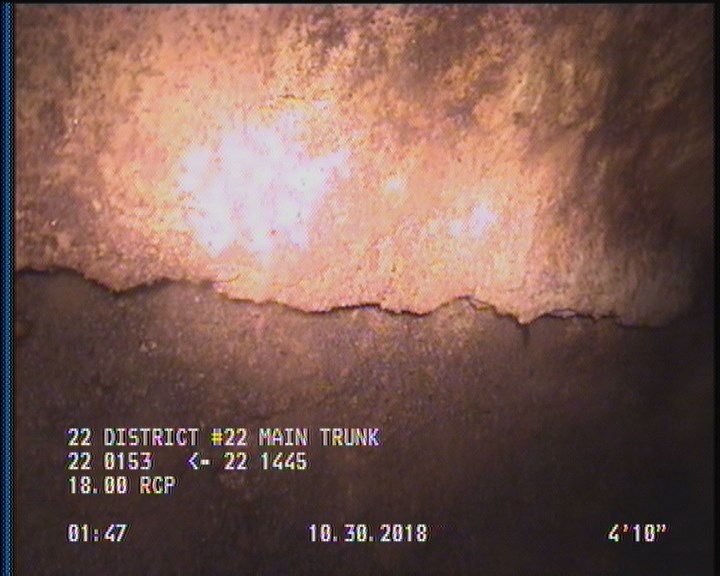

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

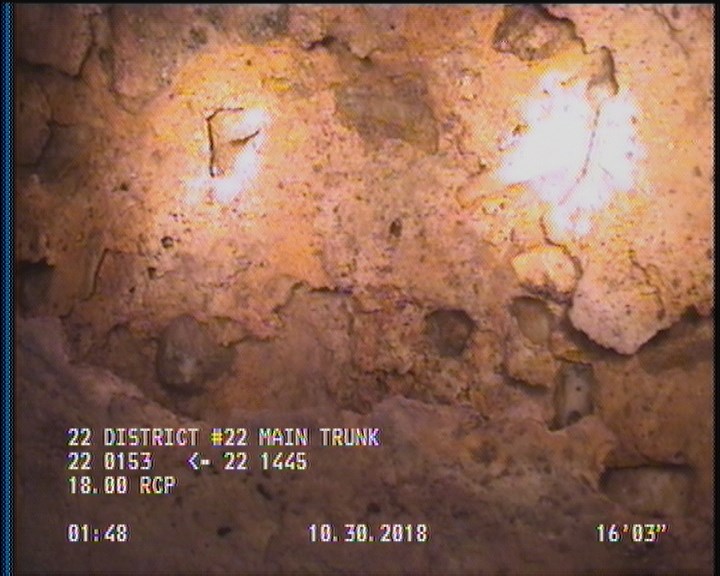

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

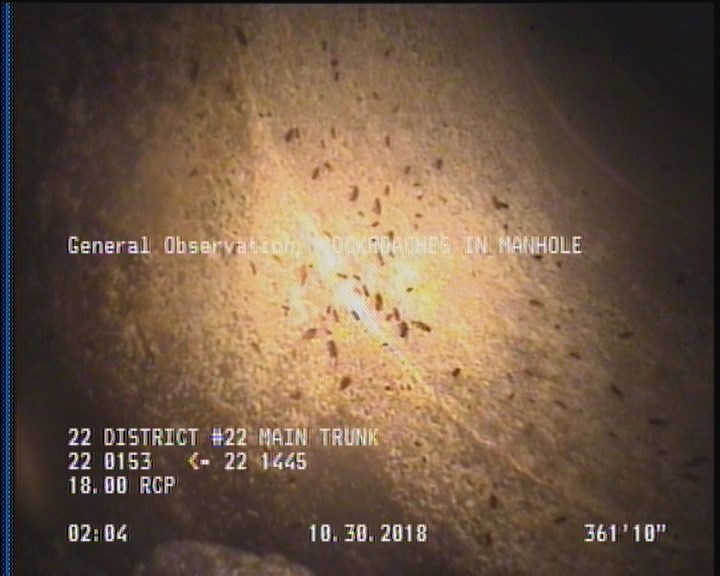

361.8 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 38.4 | TFC | — |
| 238.6 | TFC | — |
| 361.8 | AMH | 22 1445 |
| 361.8 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWM | — |
| 2 | DAGS | — |
| 284.8 | TFC | — |
| 0 | MWL | — |
| 360.3 | DAGS | — |
| 357.1 | SSS | — |
| 0 | AMH | 22 0153 |
| 332.5 | TFC | — |
| 361.8 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 2 | SSS | — |
| 355.1 | SAP | — |
| 2 | SAP | — |
| 129 | TFA | — |
Properties (4)
- additional_info
- SC365352
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-10-30T01:46:29-07:00
