Wastewater/Activity/PacpInspection/1.0Oct 29, 2018, 10:13 AM
22 0143_22 0142 _29102018_031413.mp4
- Date
- 10/29/2018
- W/O
- 734336
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00805
- PipeID
- P16385
- Time
- 3:13 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6187
- Sewer Name
- 22 DISTRICT #22 MAIN TRUNK
- City
- COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 27
- Purpose
- Routine Assessment
- Project
- WO_734336_TV22033_NOV2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 22 0143
- Downstream MH
- 22 0142
- Dir. of Survey
- Downstream
- Length Surveyed
- 296 ft.
- Total Length
- 296 ft.
- Structural Index
- 2
- Structural Quick
- 3J2K
- Structural Rating
- 284
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 118
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 402
Observation photos (4)

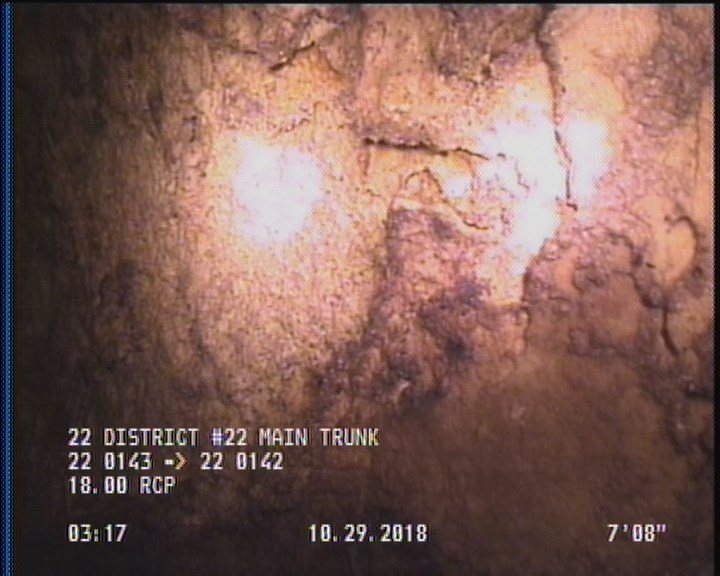

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

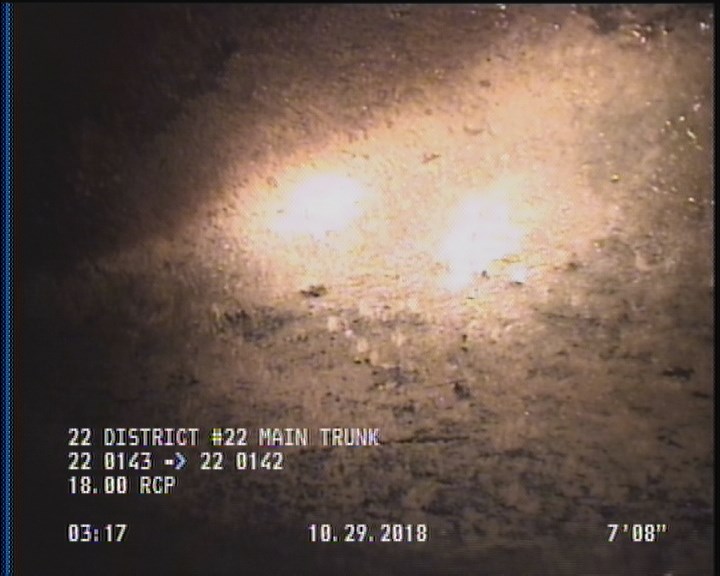

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

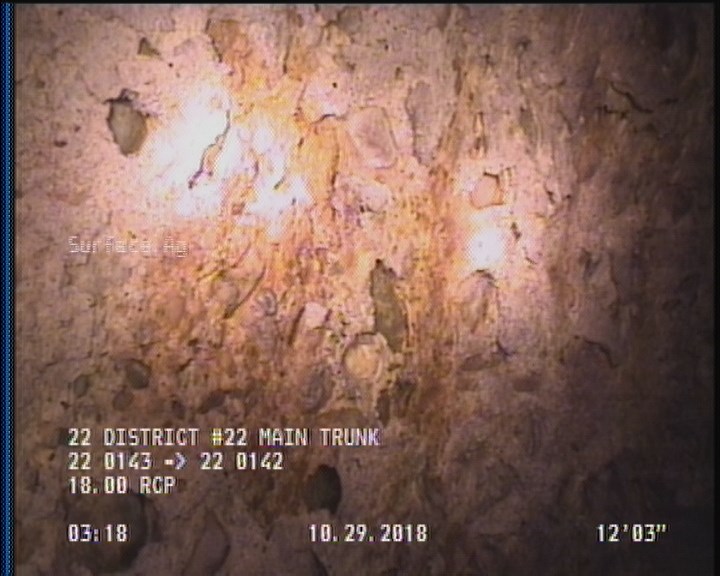

12.3 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

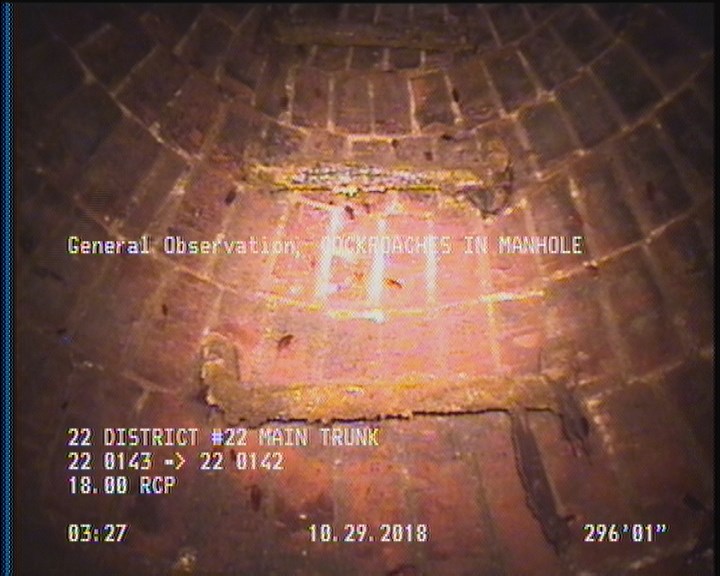

296 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 2 | SSS | — |
| 296 | MGO | COCKROACHES IN MANHOLE |
| 296 | AMH | 22 0142 |
| 294.3 | SSS | — |
| 12.3 | SAP | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 294.3 | DAGS | — |
| 104.5 | TFC | — |
| 294.3 | SAP | — |
| 258.4 | TB | — |
| 0 | MWL | — |
| 4.7 | DSC | — |
| 0 | AMH | 22 0143 |
| 56.4 | TFC | — |
| 248.7 | TFC | — |
| 152.8 | TFC | — |
| 2 | DAGS | — |
| 200.6 | TFC | — |
| 0 | MWM | — |
Properties (3)
- additional_info
- SC365150
- customer
- LACSD
- datetime
- 2018-10-29T03:13:58-07:00
