Wastewater/Activity/PacpInspection/1.0Oct 30, 2018, 09:48 AM
22 0135_22 0134 _30102018_025200.mp4
- Date
- 10/30/2018
- W/O
- 734336
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00805
- PipeID
- P16377
- Time
- 2:48 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6188
- Sewer Name
- 22 DISTRICT #22 MAIN TRUNK
- City
- COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 27
- Purpose
- Routine Assessment
- Project
- WO_734336_TV22033_NOV2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 22 0135
- Downstream MH
- 22 0134
- Dir. of Survey
- Downstream
- Length Surveyed
- 371.1 ft.
- Total Length
- 371.1 ft.
- Structural Index
- 2
- Structural Quick
- 3M2N
- Structural Rating
- 359
- O&M Index
- 2
- O&M Quick
- 2N00
- O&M Rating
- 146
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 505
Observation photos (4)

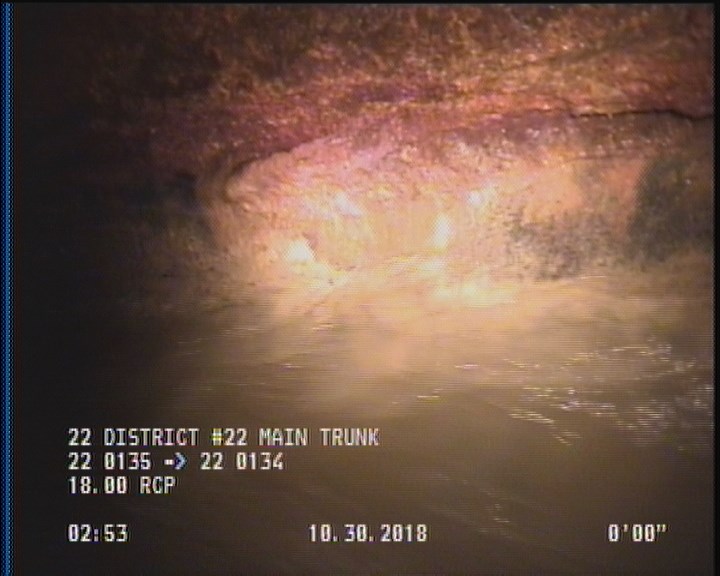

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

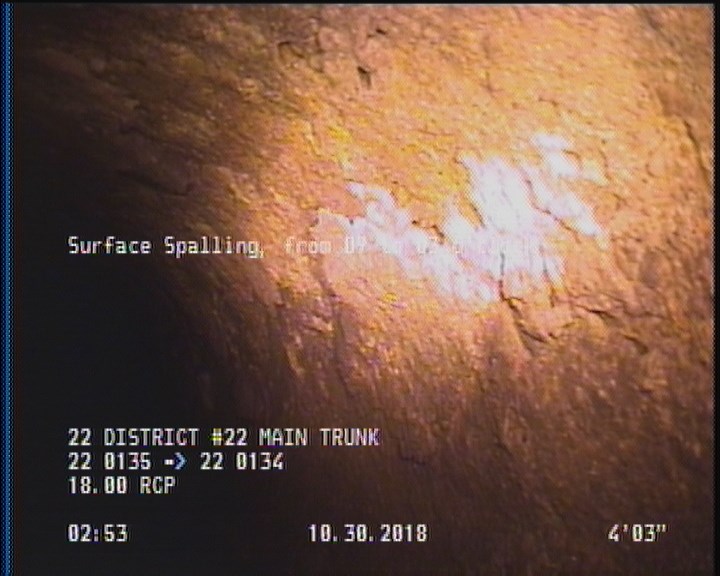

4.2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

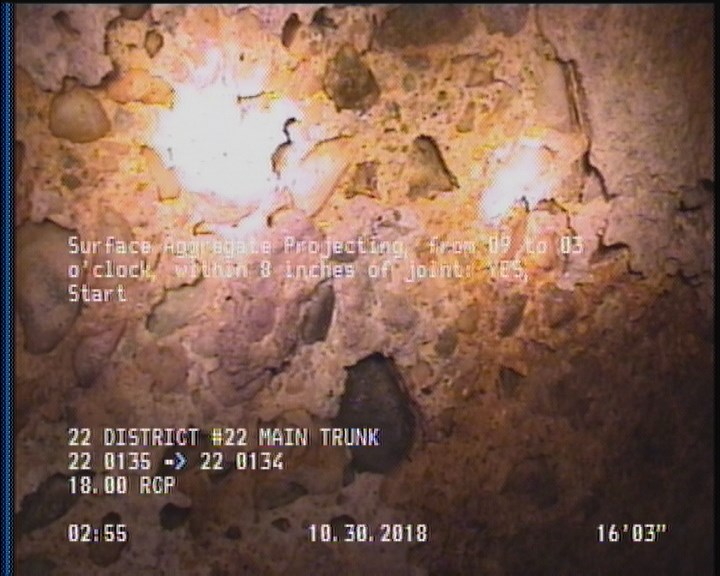

16.2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

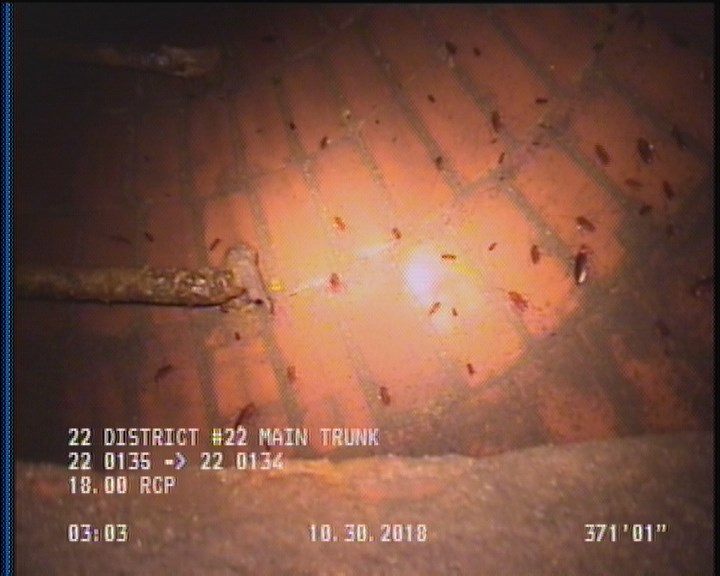

371.1 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 4.2 | SSS | — |
| 8.9 | TBA | — |
| 0 | MWL | — |
| 104.6 | TBA | — |
| 130.4 | TBA | — |
| 296.5 | TBA | — |
| 0 | MWM | — |
| 226.4 | TBA | — |
| 26.2 | TBA | — |
| 323.1 | TBA | — |
| 371.1 | AMH | 22 0134 |
| 16.2 | SAP | — |
| 369.3 | SAP | — |
| 369.3 | DAGS | — |
| 2 | DAGS | — |
| 371.1 | MGO | COCKROACHES IN MANHOLE |
| 369.3 | SSS | — |
| 0 | AMH | 22 0135 |
| 196.7 | TBA | — |
Properties (4)
- additional_info
- SC365352
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-10-30T02:48:44-07:00
