Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 30, 2018, 10:17 AM

  • 22 0133_22 0132 _30102018_031753.mp4

Date
10/30/2018
W/O
734336
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00805
PipeID
P16375
Time
3:17 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6188
Sewer Name
22 DISTRICT #22 MAIN TRUNK
City
COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
27
Purpose
Routine Assessment
Project
WO_734336_TV22033_NOV2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
22 0133
Downstream MH
22 0132
Dir. of Survey
Downstream
Length Surveyed
361.2 ft.
Total Length
361.2 ft.
Structural Index
3
Structural Quick
3M2M
Structural Rating
357
O&M Index
2
O&M Quick
2M00
O&M Rating
144
Overall Index
2
Overall Quick
—
Overall Rating
501
Pipe schematic from manhole 22 0133 to 22 0132
MH: 22 0133MH: 22 0132downstream0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - 22 01330 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.6 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start6.5 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"61.8 ft. TBA - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"114.3 ft. TBA - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"359.8 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish359.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish359.8 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish361.2 ft. AMH - Downstream Manhole, Survey Ends - 22 0132361.2 ft. MGO - General Observation - COCKROACHES IN MANHOLE361.2 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK

Observation photos (5)

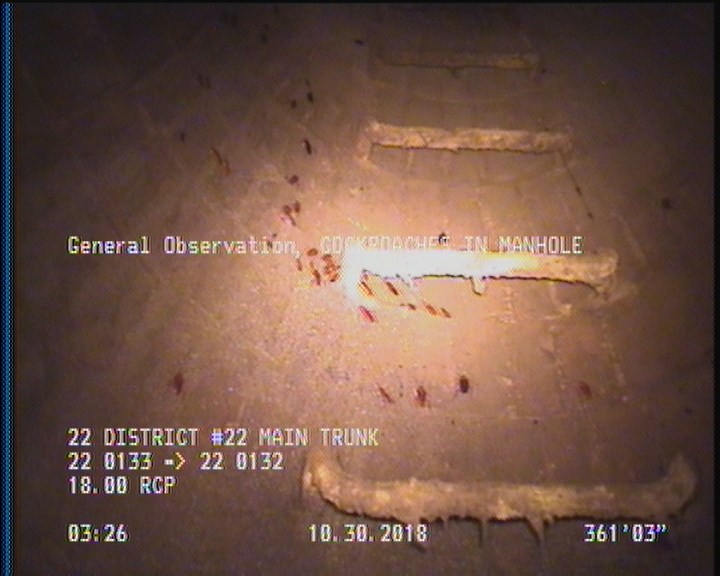

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

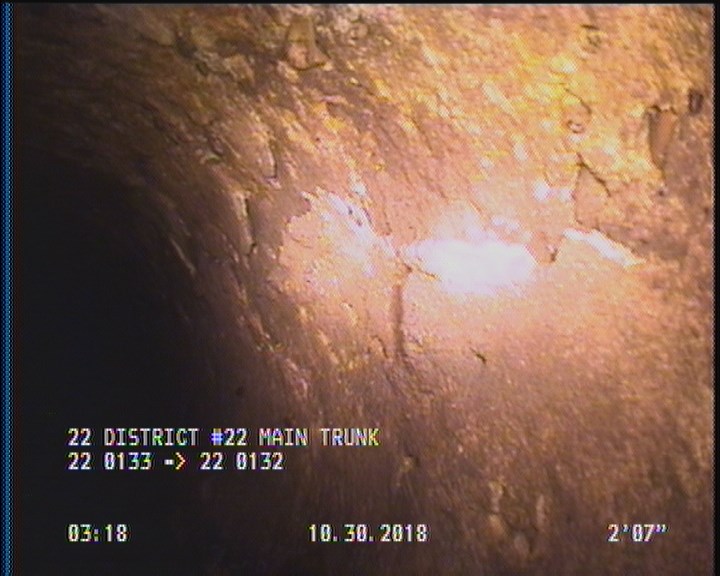

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

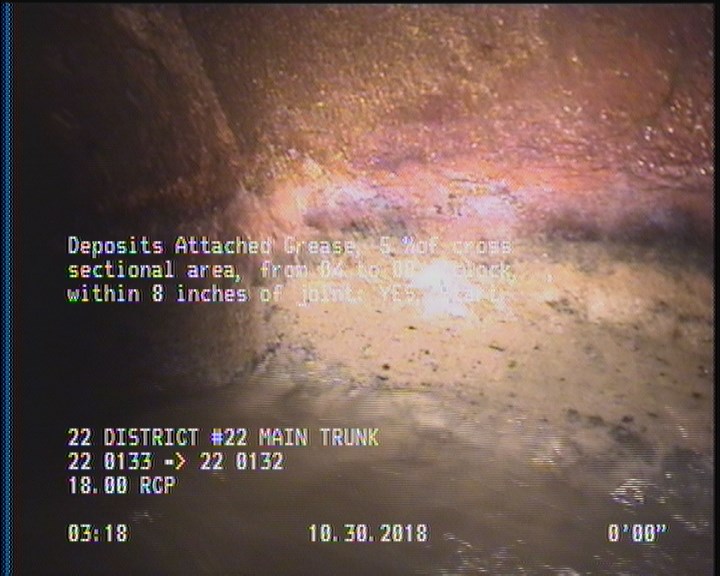

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

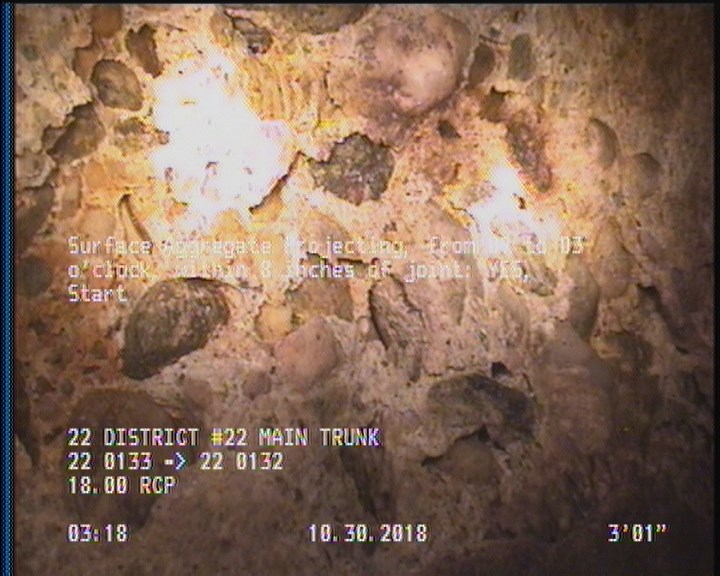

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2.6 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

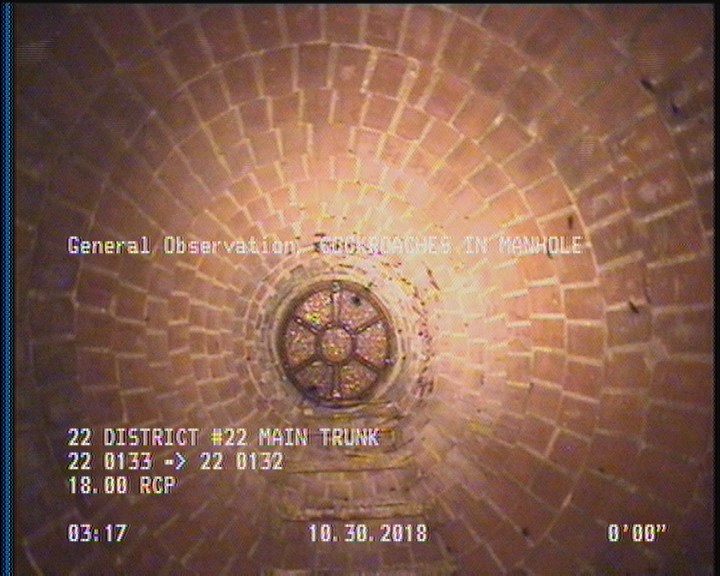

  • General Observation - COCKROACHES IN MANHOLE

    361.2 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P16375Work order 734336

Observations (17)

DistanceCodeObservation
6.5TBA—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
0MGOCOCKROACHES IN MANHOLE
361.2AMH22 0132
359.8SSS—
61.8TBA—
0AMH22 0133
2.6SAP—
2SSS—
359.8DAGS—
359.8SAP—
114.3TBA—
0MWL—
361.2MGOCOCKROACHES IN MANHOLE
2DAGS—
361.2MGOACTIVE CONNECTION AT MH 3 O'CLOCK
0MWM—

Properties (4)

additional_info
SC365352
custom_field_two
2
customer
LACSD
datetime
2018-10-30T03:17:39-07:00
