Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 29, 2018, 11:07 AM

  • 22 0140_22 0139 _29102018_040746.mp4

Date
10/29/2018
W/O
734336
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00805
PipeID
P16382
Time
4:07 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6187
Sewer Name
22 DISTRICT #22 MAIN TRUNK
City
COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
27
Purpose
Routine Assessment
Project
WO_734336_TV22033_NOV2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
22 0140
Downstream MH
22 0139
Dir. of Survey
Downstream
Length Surveyed
257.9 ft.
Total Length
257.9 ft.
Structural Index
3
Structural Quick
3I2I
Structural Rating
250
O&M Index
2
O&M Quick
2I00
O&M Rating
102
Overall Index
2
Overall Quick
—
Overall Rating
352
Pipe schematic from manhole 22 0140 to 22 0139
MH: 22 0140MH: 22 0139downstream0 ft. AMH - Upstream Manhole, Survey Begins - 22 01400 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 15 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start7.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start50.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"106.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"154.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"201.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"249.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"255.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish255.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish255.9 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish257.9 ft. AMH - Downstream Manhole, Survey Ends - 22 0139257.9 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK257.9 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (4)

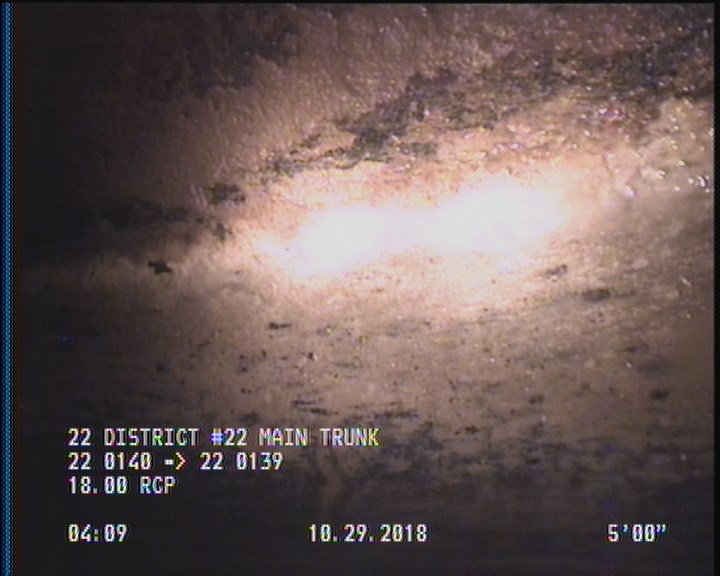

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

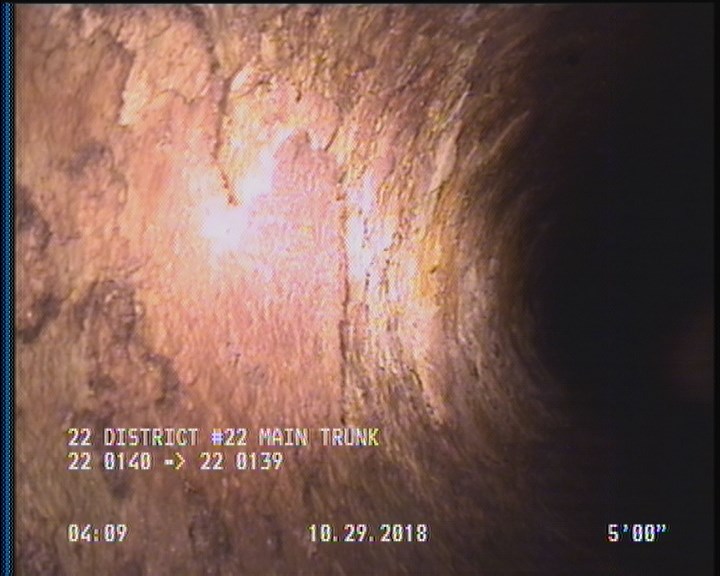

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

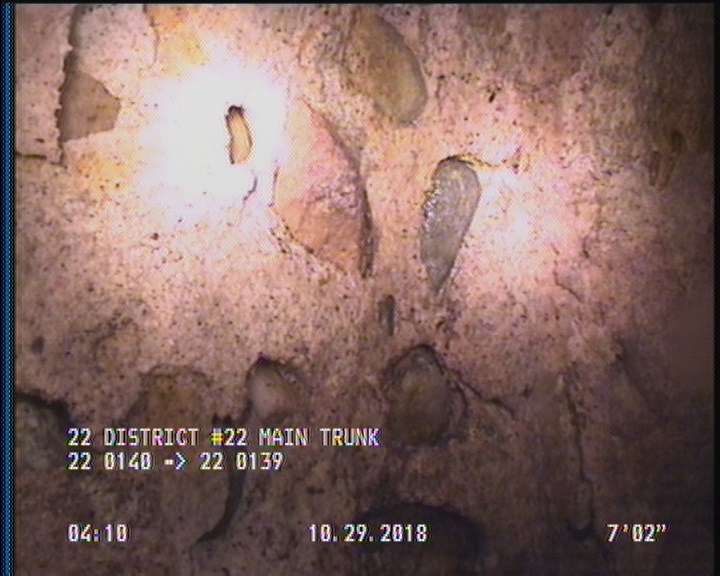

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    7.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

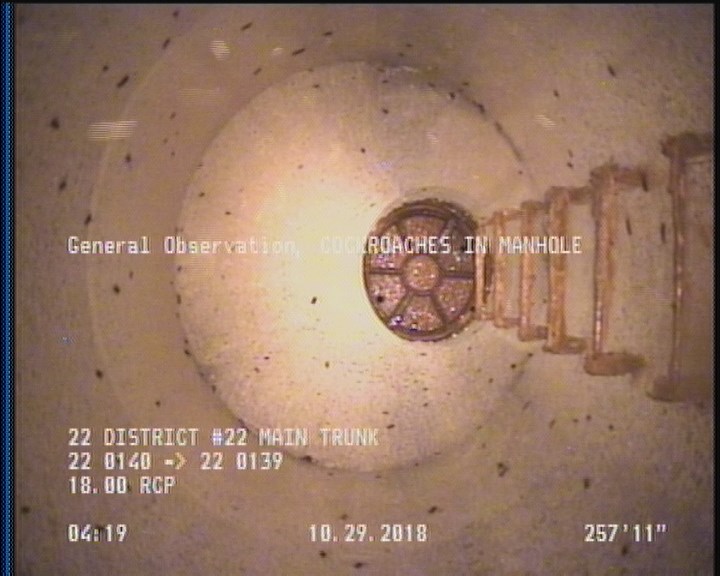

  • General Observation - COCKROACHES IN MANHOLE

    257.9 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P16382Work order 734336

Observations (18)

DistanceCodeObservation
255.9DAGS—
0AMH22 0140
0MWM—
106.3TFC—
0MGOCOCKROACHES IN MANHOLE
7.1SAP—
255.9SSS—
50.2TFC—
255.9SAP—
154.2TFC—
201.9TFC—
257.9AMH22 0139
257.9MGOACTIVE CONNECTION AT MH 3 O'CLOCK
249.5TFC—
257.9MGOCOCKROACHES IN MANHOLE
2DAGS—
0MWL—
5SSS—

Properties (4)

additional_info
SC365150
custom_field_two
2
customer
LACSD
datetime
2018-10-29T04:07:18-07:00
