Wastewater/Activity/PacpInspection/1.0Oct 31, 2018, 05:11 AM
22 0132_22 0131 _30102018_221138.mp4
- Date
- 10/30/2018
- W/O
- 734336
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00805
- PipeID
- P16374
- Time
- 10:11 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6189
- Sewer Name
- 22 DISTRICT #22 MAIN TRUNK
- City
- COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 27
- Purpose
- Routine Assessment
- Project
- WO_734336_TV22033_NOV2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 22 0132
- Downstream MH
- 22 0131
- Dir. of Survey
- Downstream
- Length Surveyed
- 370.5 ft.
- Total Length
- 370.5 ft.
- Structural Index
- 3
- Structural Quick
- 3N2N
- Structural Rating
- 365
- O&M Index
- 3
- O&M Quick
- 4122
- O&M Rating
- 8
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 373
Observation photos (4)

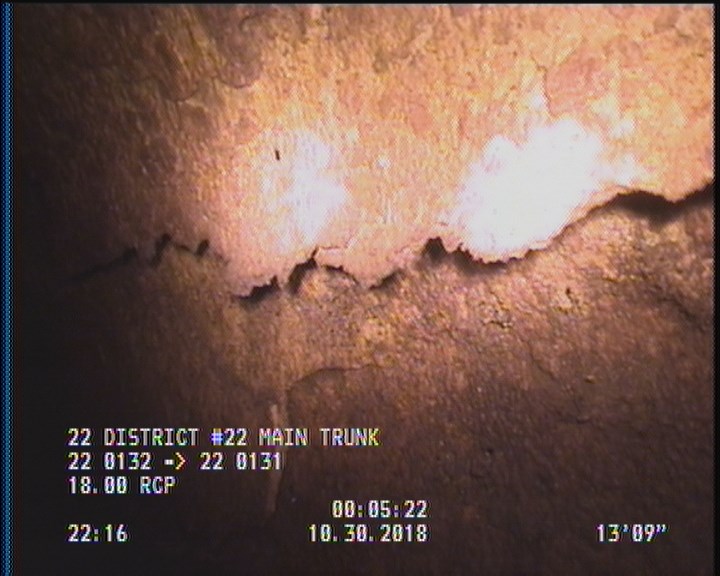

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

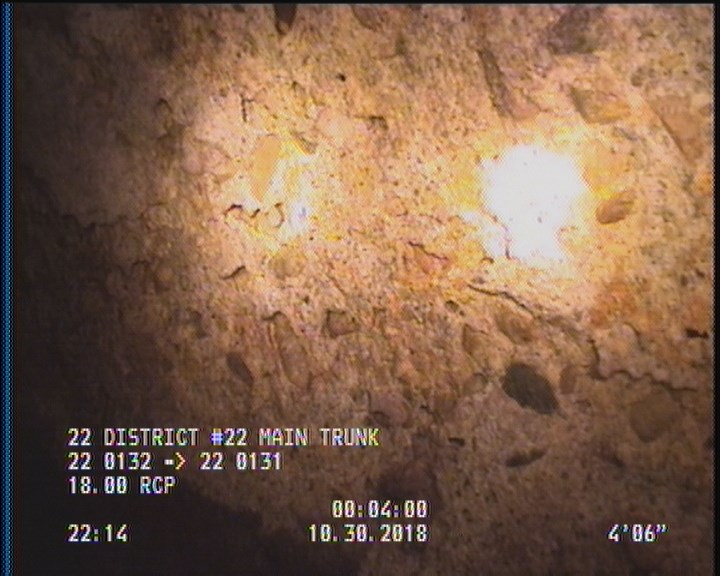

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

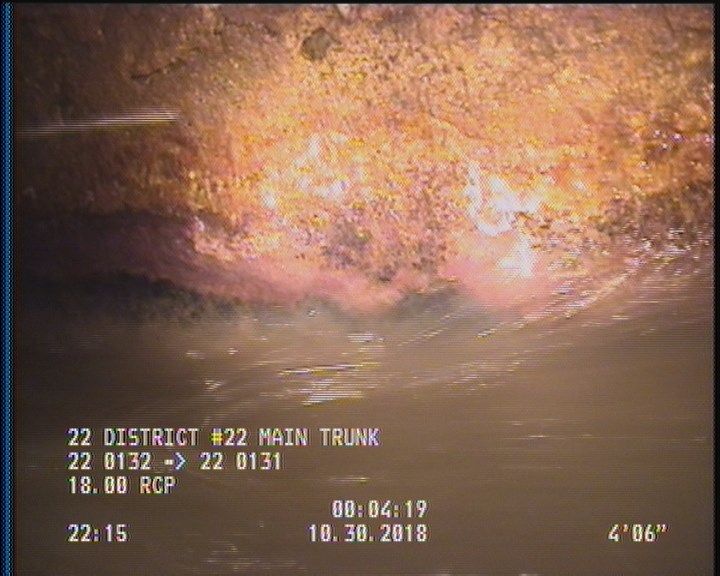

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

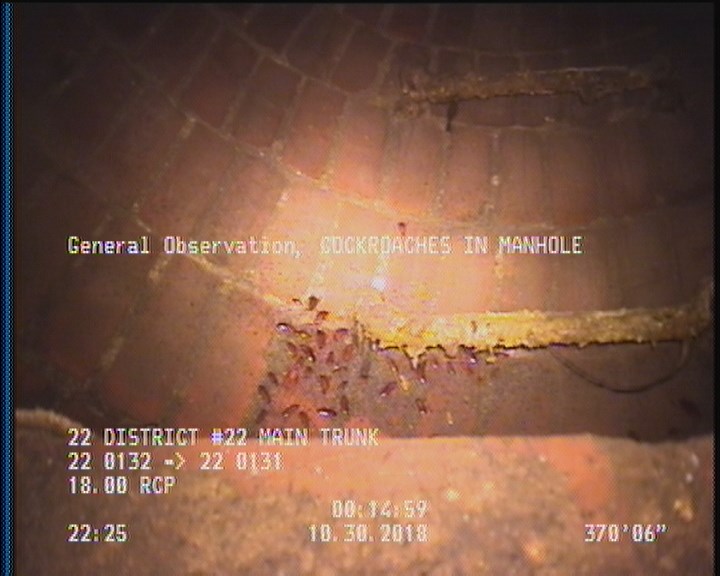

370.5 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (18)
| Distance | Code | Observation |
|---|---|---|
| 35.7 | TFC | — |
| 176.6 | TBA | — |
| 2 | SSS | — |
| 370.5 | AMH | 22 0131 |
| 2 | SAP | — |
| 0 | MWL | — |
| 368.7 | DAGS | — |
| 0 | AMH | 22 0132 |
| 368.7 | SSS | — |
| 62 | TBA | — |
| 0 | MWM | — |
| 368.7 | SAP | — |
| 2 | DAGS | — |
| 355.5 | TBA | — |
| 145 | TBA | — |
| 214.2 | TBA | — |
| 282.5 | TBA | — |
| 370.5 | MGO | COCKROACHES IN MANHOLE |
Properties (4)
- additional_info
- SC365353
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-10-30T22:11:22-07:00
