Wastewater/Activity/PacpInspection/1.0Oct 29, 2018, 10:00 AM
22 0144_22 0143 _29102018_030025.mp4
- Date
- 10/29/2018
- W/O
- 734336
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00805
- PipeID
- P16386
- Time
- 3:00 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6187
- Sewer Name
- 22 DISTRICT #22 MAIN TRUNK
- City
- COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 27
- Purpose
- Routine Assessment
- Project
- WO_734336_TV22033_NOV2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 22 0144
- Downstream MH
- 22 0143
- Dir. of Survey
- Downstream
- Length Surveyed
- 347 ft.
- Total Length
- 347 ft.
- Structural Index
- 3
- Structural Quick
- 3M2M
- Structural Rating
- 345
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 138
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 483
Observation photos (4)

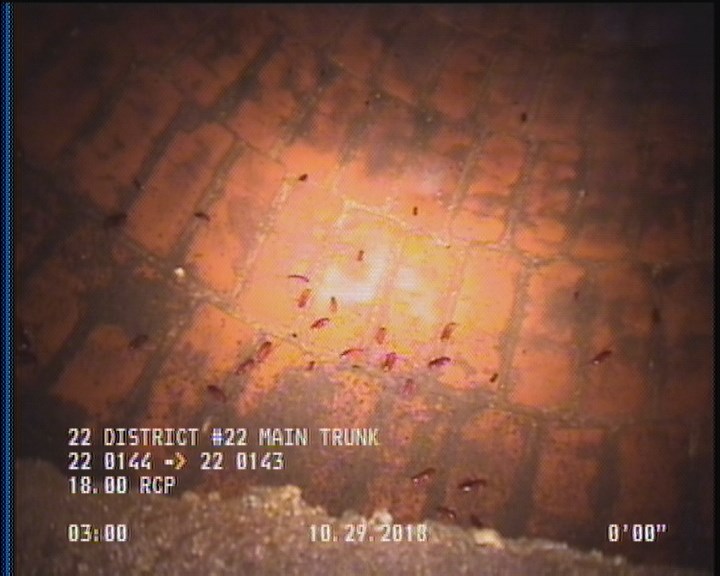

0 ft. - General Observation - COCKROACHES IN MANHOLE

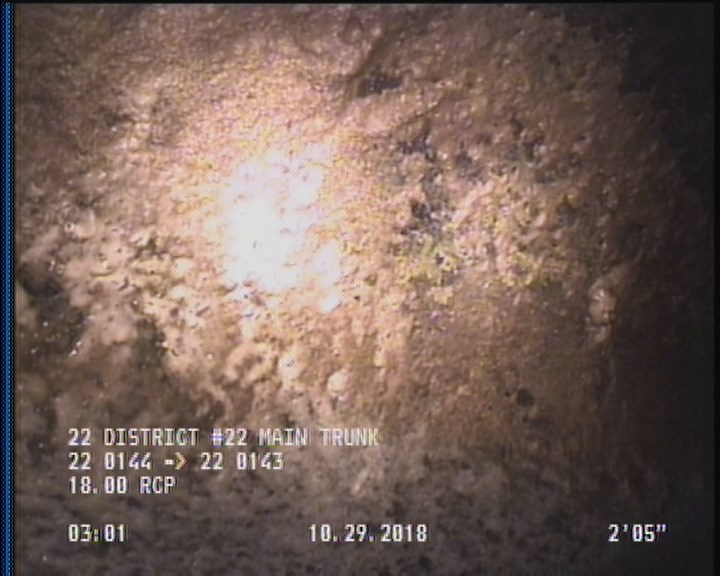

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

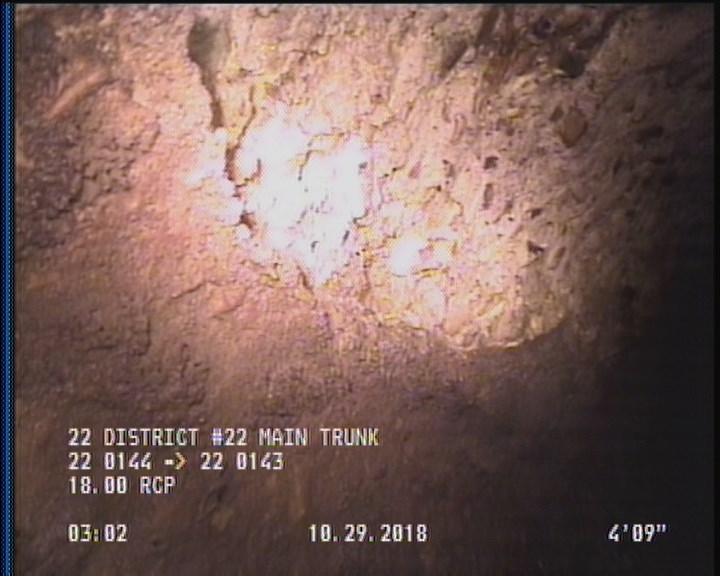

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

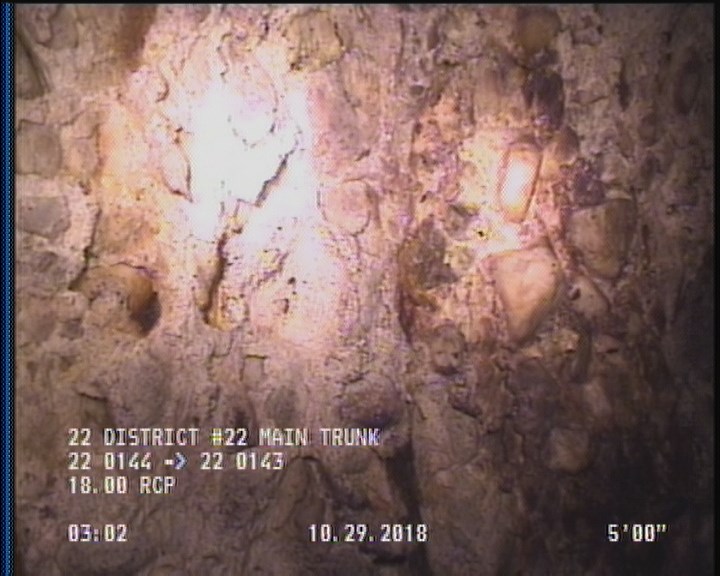

2.4 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 12.5 | TFC | — |
| 2 | DAGS | — |
| 204.3 | TFC | — |
| 345 | SSS | — |
| 345 | DAGS | — |
| 155.8 | TFC | — |
| 347 | AMH | 22 0143 |
| 0 | MWL | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWM | — |
| 346.8 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 2 | SSS | — |
| 244.4 | TFC | — |
| 345 | SAP | — |
| 2.4 | SAP | — |
| 107.9 | TFC | — |
| 300.2 | TFC | — |
| 0 | AMH | 22 0144 |
| 52.1 | TFC | — |
Properties (3)
- additional_info
- SC365150
- customer
- LACSD
- datetime
- 2018-10-29T03:00:11-07:00
