Wastewater/Activity/PacpInspection/1.0Nov 2, 2018, 10:00 AM
22 0167_22 0166 _11022018306_030108.mp4
- Date
- 11/02/2018
- W/O
- 734336
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00805
- PipeID
- P16409
- Time
- 3:00 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6193
- Sewer Name
- 22 DISTRICT #22 MAIN TRUNK
- City
- SAN DIMAS
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 28
- Purpose
- Routine Assessment
- Project
- WO_734336_TV22033_NOV2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0166
- Downstream MH
- 22 0167
- Dir. of Survey
- Upstream
- Length Surveyed
- 350.6 ft.
- Total Length
- 350.6 ft.
- Structural Index
- 3
- Structural Quick
- 3M2M
- Structural Rating
- 345
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 138
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 483
Observation photos (4)

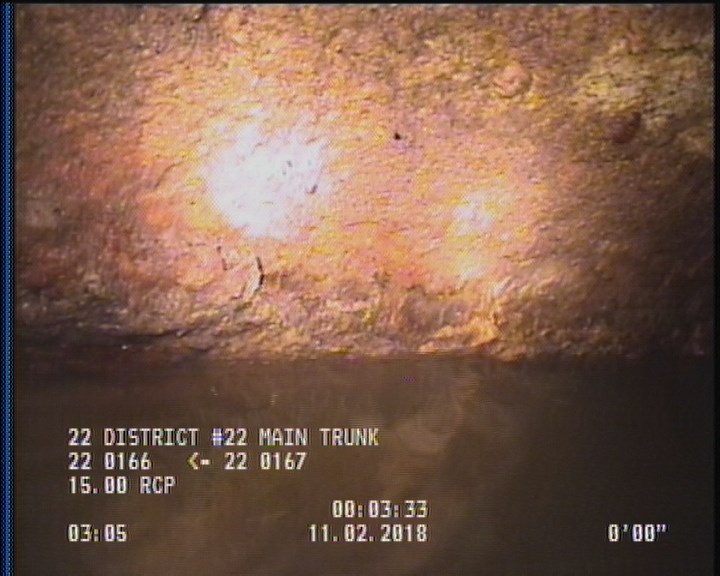

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

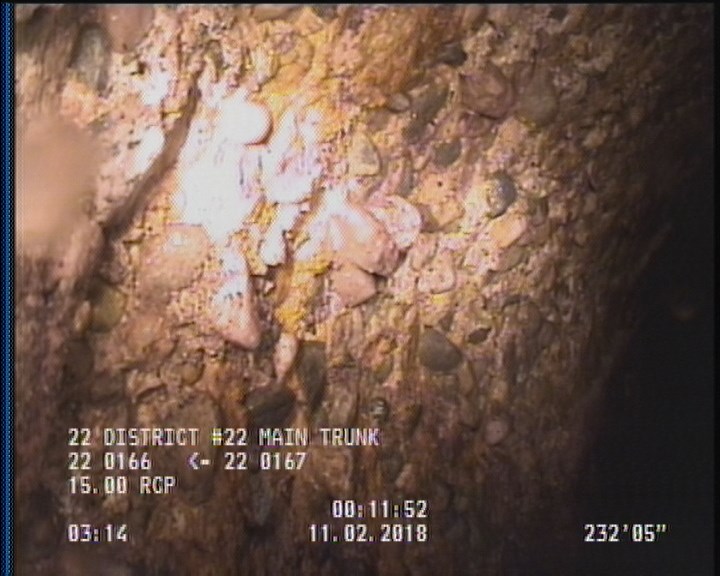

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

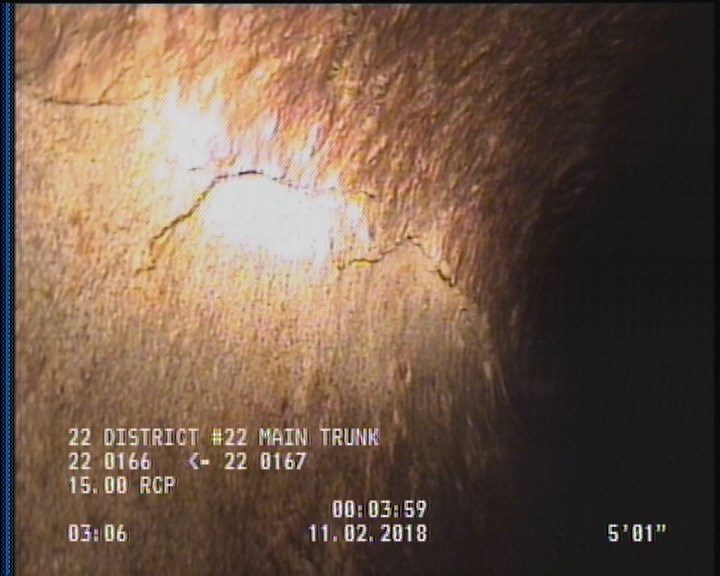

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

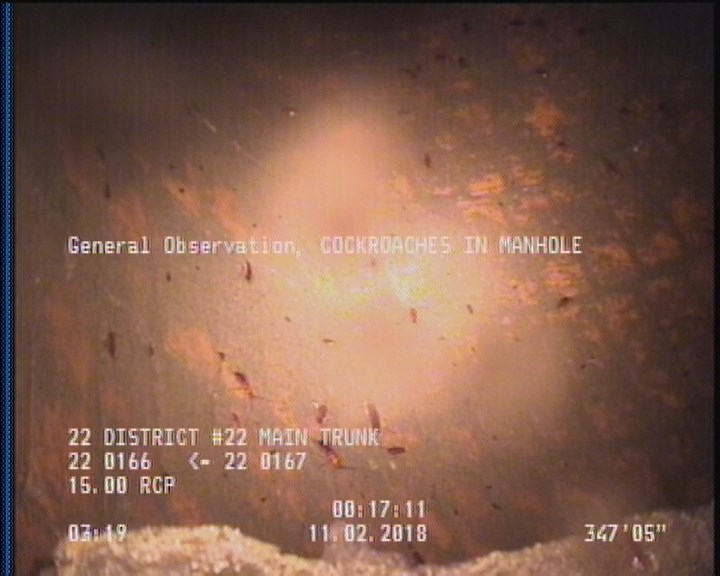

347.4 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 53.1 | TFC | — |
| 347.4 | MGO | COCKROACHES IN MANHOLE |
| 0 | AMH | 22 0166 |
| 347.4 | SSS | — |
| 148.6 | TFC | — |
| 0 | MWL | — |
| 347.4 | DAGS | — |
| 350.6 | AMH | 22 0167 |
| 347.4 | SAP | — |
| 2 | DAGS | — |
| 2 | SAP | — |
| 100.8 | TFC | — |
| 2 | SSS | — |
| 0 | MWM | — |
| 350.6 | MGO | ACTIVE CONNECTION AT MH 2 O'CLOCK |
Properties (4)
- additional_info
- SC365359
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-11-02T03:00:37-07:00
