Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 19, 2018, 08:24 PM

  • 22 0750_22 0749_11192018_123854.mp4

Date
11/19/2018
W/O
0735393
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00821
PipeID
P17107
Time
12:24 PM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7858
Sewer Name
22 PUDDINGSTONE TRUNK, SECTS 1&2
City
SAN DIMAS
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
23
Purpose
Capital Improvement Program Assesment
Project
20181119SHO_PUDDINGSTONE_TRUNK_SECTS_1_2
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
22 0750
Downstream MH
22 0749
Dir. of Survey
Downstream
Length Surveyed
350.5 ft.
Total Length
350.5 ft.
Structural Index
2
Structural Quick
3122
Structural Rating
7
O&M Index
2
O&M Quick
3212
O&M Rating
8
Overall Index
2
Overall Quick
—
Overall Rating
15
Pipe schematic from manhole 22 0750 to 22 0749
MH: 22 0750MH: 22 0749downstream0 ft. AMH - Upstream Manhole, Survey Begins - MH 7500 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MWM - Water Mark, 35 %of cross sectional area8.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start8.5 ft. MGO - General Observation - 75% MAG COAT TTHROUGHOUT25.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"80.4 ft. SSS - Surface Spalling, at 12 o'clock, within 8 inches of joint: YES96.8 ft. SSS - Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: YES, Start101.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"149.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"197.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"203.9 ft. RMJ - Roots Medium Joint, from 02 to 05 o'clock, 25 %, within 8 inches of joint: YESR235.8 ft. RFJ - Roots Fine Joint, from 11 to 02 o'clock, within 8 inches of joint: YESR249.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"266.9 ft. RMJ - Roots Medium Joint, from 08 to 04 o'clock, 15 %, within 8 inches of joint: YESR271.5 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start279.9 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Finish302.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"342 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"348.2 ft. SSS - Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: YES, Finish348.2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish350.5 ft. AMH - Downstream Manhole, Survey Ends - MH 749

Observation photos (5)

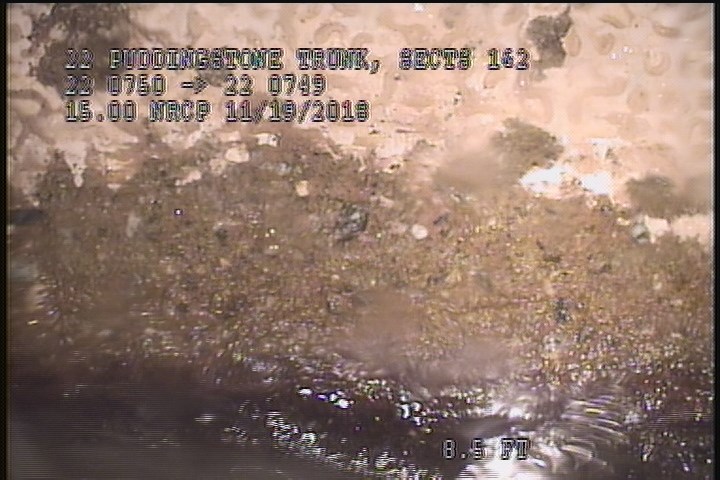

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    8.5 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

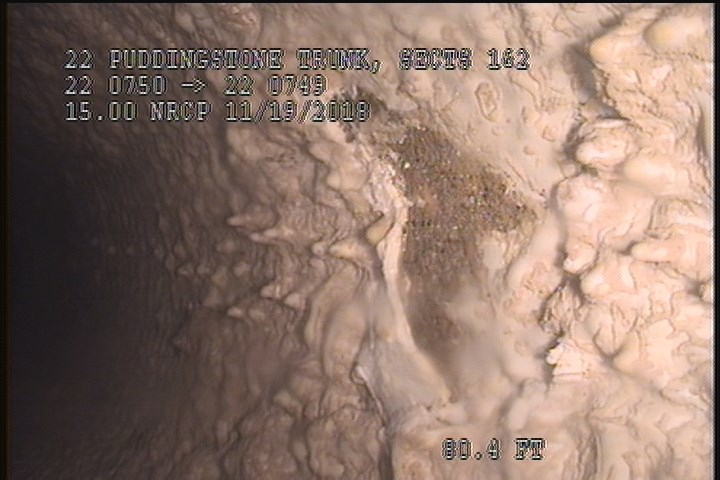

  • Surface Spalling, at 12 o'clock, within 8 inches of joint: YES

    80.4 ft. - Surface Spalling, at 12 o'clock, within 8 inches of joint: YES

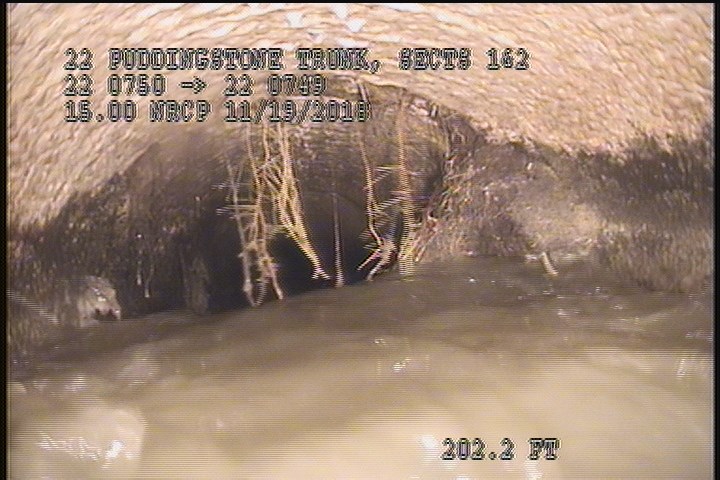

  • Roots Medium Joint, from 02 to 05 o'clock, 25 %, within 8 inches of joint: YESR

    203.9 ft. - Roots Medium Joint, from 02 to 05 o'clock, 25 %, within 8 inches of joint: YESR

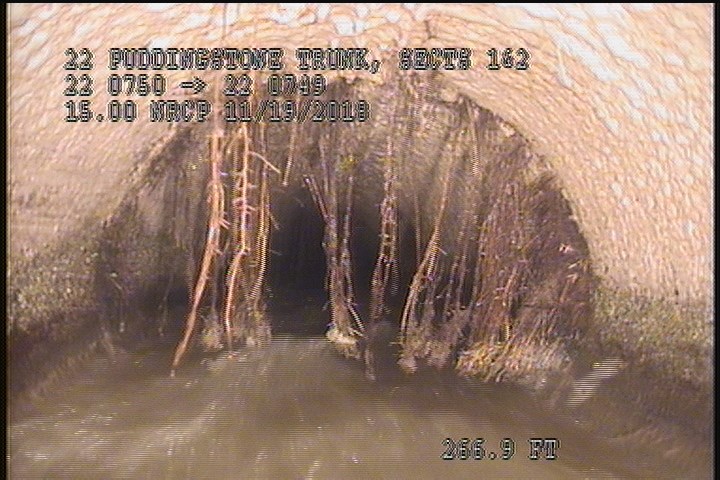

  • Roots Medium Joint, from 08 to 04 o'clock, 15 %, within 8 inches of joint: YESR

    266.9 ft. - Roots Medium Joint, from 08 to 04 o'clock, 15 %, within 8 inches of joint: YESR

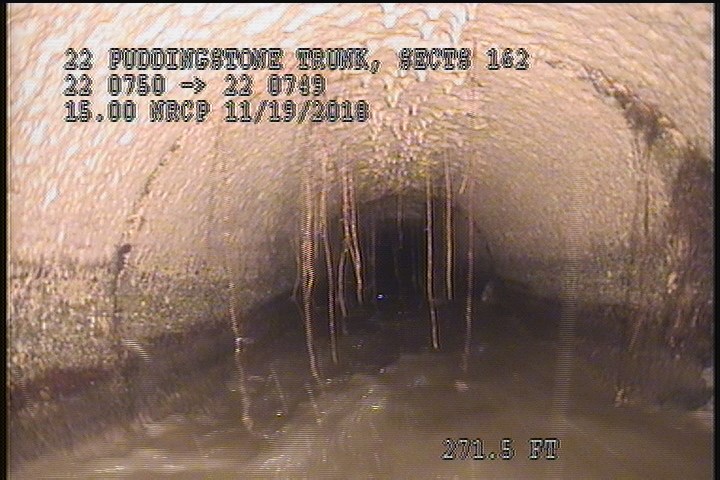

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start

    271.5 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start

All inspections of P17107Work order 0735393

Observations (22)

DistanceCodeObservation
96.8SSS—
80.4SSS—
0AMHMH 750
249.8TFC—
8.5SAV—
0MWL—
342TFA—
279.9RFJ—
101.5TFC—
8.5MGO75% MAG COAT TTHROUGHOUT
25.4TFC—
197.6TFC—
149.8TFC—
348.2SSS—
203.9RMJ—
350.5AMHMH 749
271.5RFJ—
348.2SAV—
235.8RFJ—
0MWM—
302.5TFC—
266.9RMJ—

Properties (5)

additional_info
RFIR
custom_field_three
SMALL AMOUNT OF SPALLING, VISIBLE AGG.
custom_field_two
3
customer
LACSD
datetime
2018-11-19T12:24:07-08:00
