Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 5, 2018, 02:12 PM

  • H 0523_H 0522_05102018_071309.mp4

Date
10/05/2018
W/O
729980
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00183
PipeID
P10948
Time
7:12 AM
Certificate
U-115-06022794
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5913
Sewer Name
H JOINT OUTFALL H - UNIT 7B
City
CITY OF INDUSTRY
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
35
Purpose
Routine Assessment
Project
RFIR_WO_729980_TV15231_OCT2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
39 in.
Width
39 in.
Upstream MH
H 0523
Downstream MH
H 0522
Dir. of Survey
Downstream
Length Surveyed
425.8 ft.
Total Length
425.8 ft.
Structural Index
3
Structural Quick
3P00
Structural Rating
249
O&M Index
1
O&M Quick
2112
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
253
Pipe schematic from manhole H 0523 to H 0522
MH: H 0523MH: H 0522downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - H 05230 ft. MWM - Water Mark, 20 %of cross sectional area8 ft. MGO - General Observation - MAG COAT8 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start200.6 ft. VC - Vermin Cockroach, within 8 inches of joint: YES315.6 ft. VC - Vermin Cockroach, within 8 inches of joint: NO377.4 ft. VR - Vermin - Rat, within 8 inches of joint: NO, 1422.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish425.8 ft. MGO - General Observation - COCKROACHES IN MANHOLE425.8 ft. AMH - Downstream Manhole, Survey Ends - H 0522

Observation photos (6)

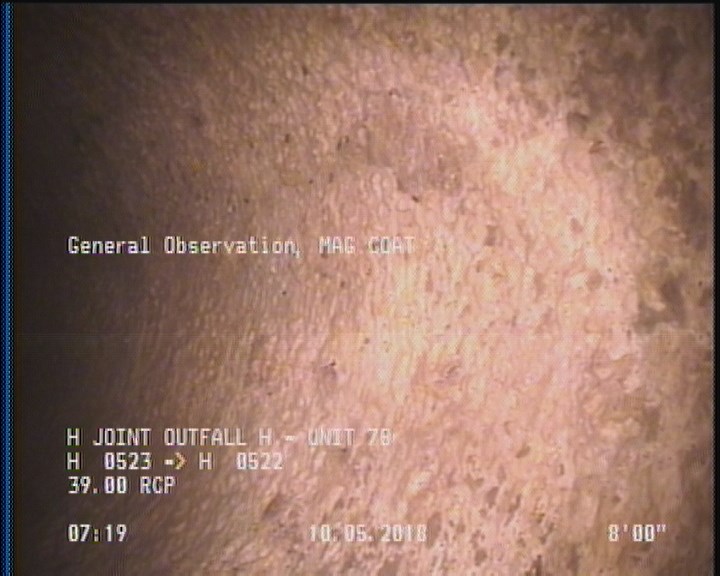

  • General Observation - MAG COAT

    8 ft. - General Observation - MAG COAT

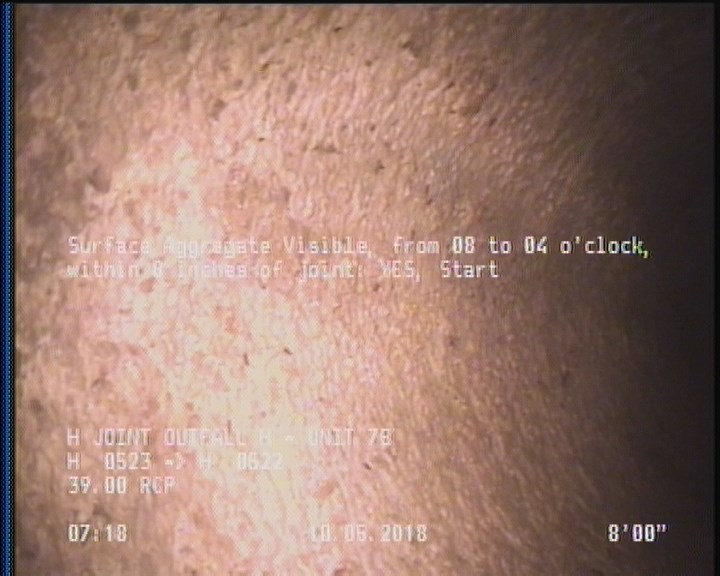

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    8 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

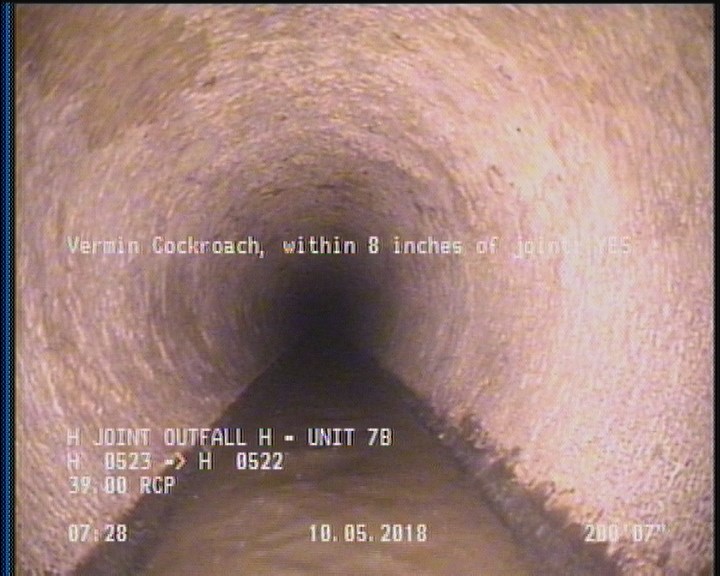

  • Vermin Cockroach, within 8 inches of joint: YES

    200.6 ft. - Vermin Cockroach, within 8 inches of joint: YES

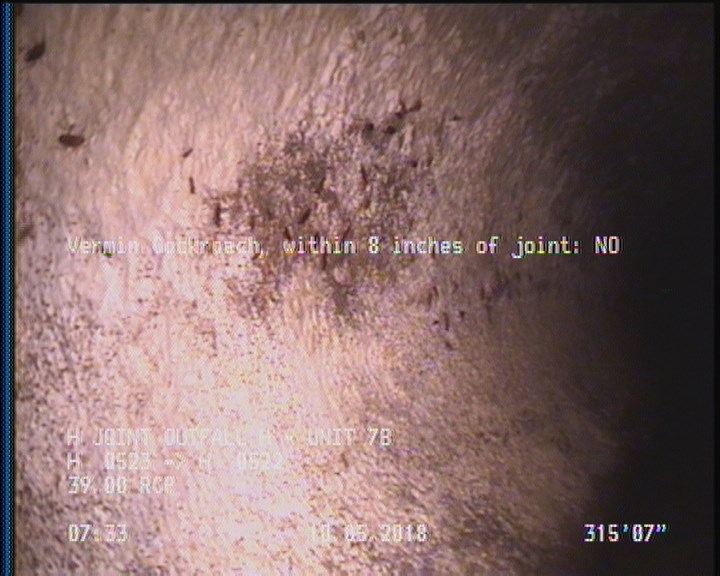

  • Vermin Cockroach, within 8 inches of joint: NO

    315.6 ft. - Vermin Cockroach, within 8 inches of joint: NO

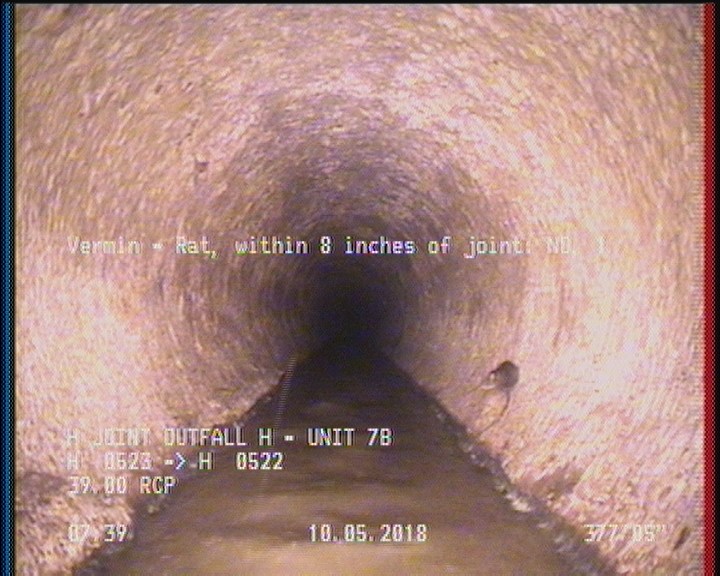

  • Vermin - Rat, within 8 inches of joint: NO, 1

    377.4 ft. - Vermin - Rat, within 8 inches of joint: NO, 1

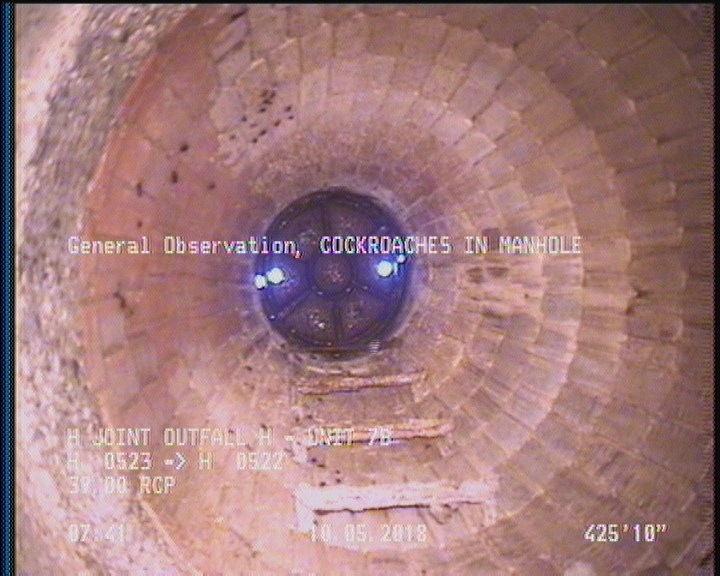

  • General Observation - COCKROACHES IN MANHOLE

    425.8 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P10948Work order 729980

Observations (11)

DistanceCodeObservation
200.6VC—
0MWL—
425.8MGOCOCKROACHES IN MANHOLE
0AMHH 0523
0MWM—
425.8AMHH 0522
422.3SAV—
377.4VR—
8MGOMAG COAT
315.6VC—
8SAV—

Properties (3)

custom_field_two
2
customer
LACSD
datetime
2018-10-05T07:12:21-07:00
