Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 5, 2018, 06:37 PM

  • H 0518_H 0517_05102018_113819.mp4

Date
10/05/2018
W/O
729980
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00183
PipeID
P10943
Time
11:37 AM
Certificate
U-115-06022794
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5913
Sewer Name
H JOINT OUTFALL H - UNIT 7B
City
CITY OF INDUSTRY
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
35
Purpose
Routine Assessment
Project
RFIR_WO_729980_TV15231_OCT2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
39 in.
Width
39 in.
Upstream MH
H 0518
Downstream MH
H 0517
Dir. of Survey
Downstream
Length Surveyed
461.6 ft.
Total Length
461.6 ft.
Structural Index
3
Structural Quick
3Q00
Structural Rating
276
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
3
Overall Quick
—
Overall Rating
277
Pipe schematic from manhole H 0518 to H 0517
MH: H 0518MH: H 0517downstream0 ft. AMH - Upstream Manhole, Survey Begins - H 05180 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. MGO - General Observation - MAG COAT344.7 ft. VC - Vermin Cockroach, within 8 inches of joint: NO461.6 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish461.6 ft. MGO - General Observation - COCKROACHES IN MANHOLE461.6 ft. AMH - Downstream Manhole, Survey Ends - H 0517461.6 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK

Observation photos (7)

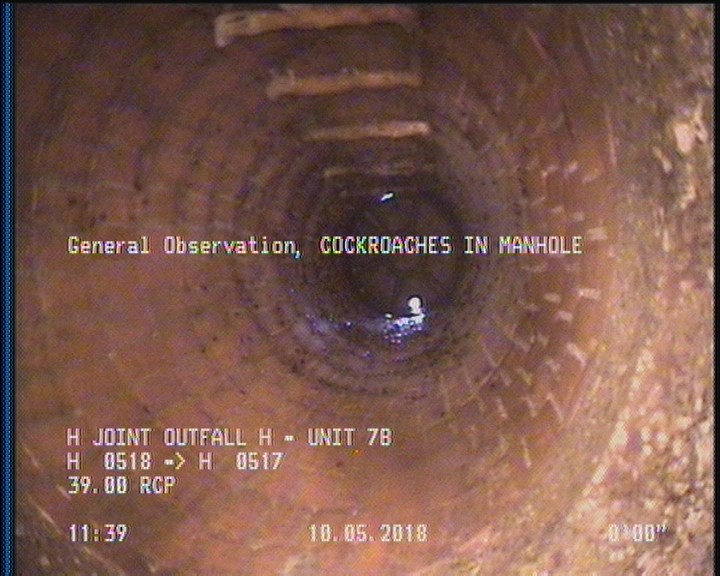

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

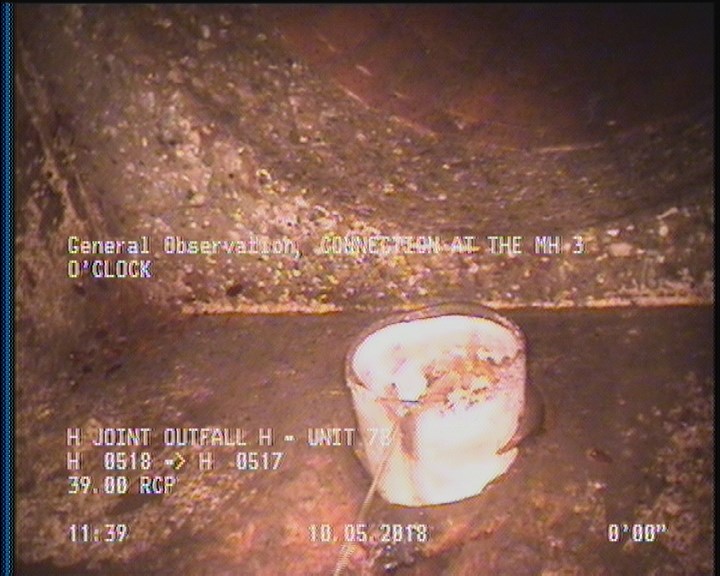

  • General Observation - CONNECTION AT THE MH 3 O'CLOCK

    0 ft. - General Observation - CONNECTION AT THE MH 3 O'CLOCK

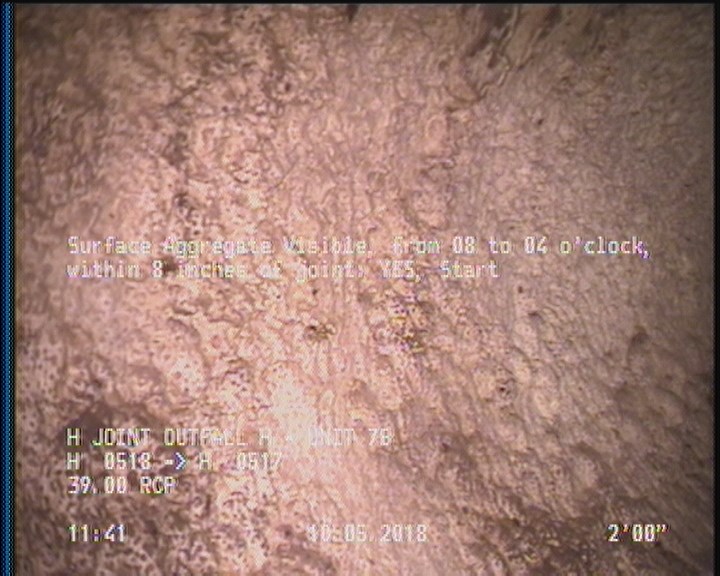

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

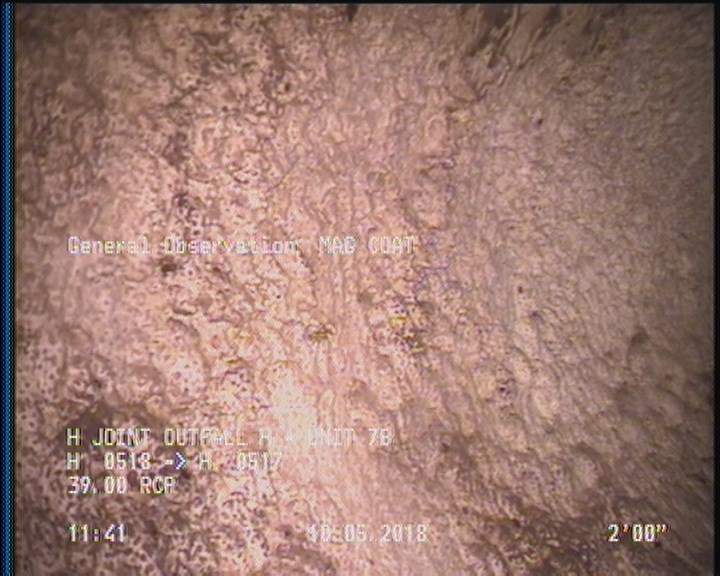

  • General Observation - MAG COAT

    2 ft. - General Observation - MAG COAT

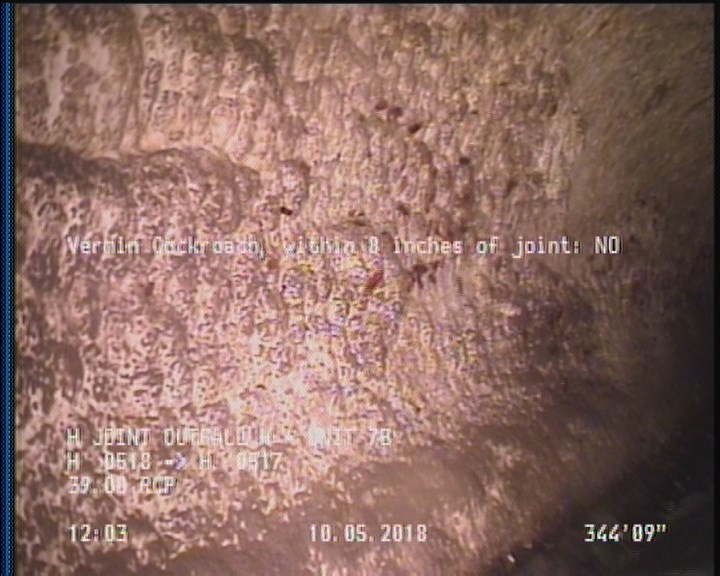

  • Vermin Cockroach, within 8 inches of joint: NO

    344.7 ft. - Vermin Cockroach, within 8 inches of joint: NO

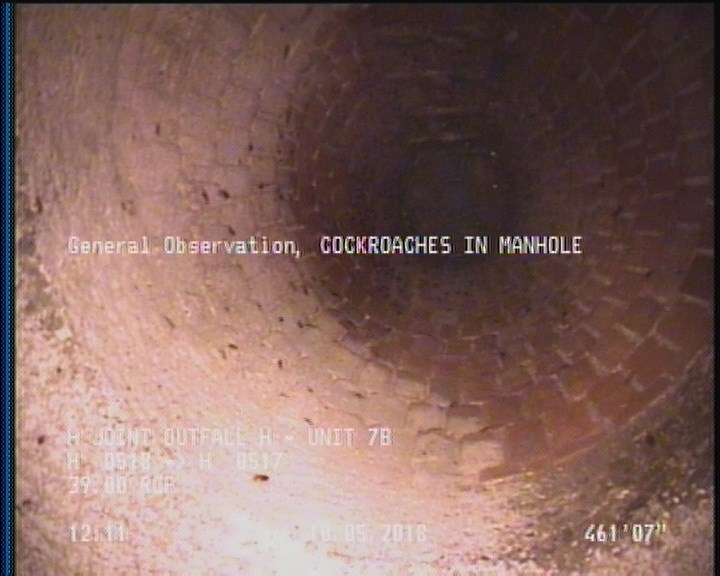

  • General Observation - COCKROACHES IN MANHOLE

    461.6 ft. - General Observation - COCKROACHES IN MANHOLE

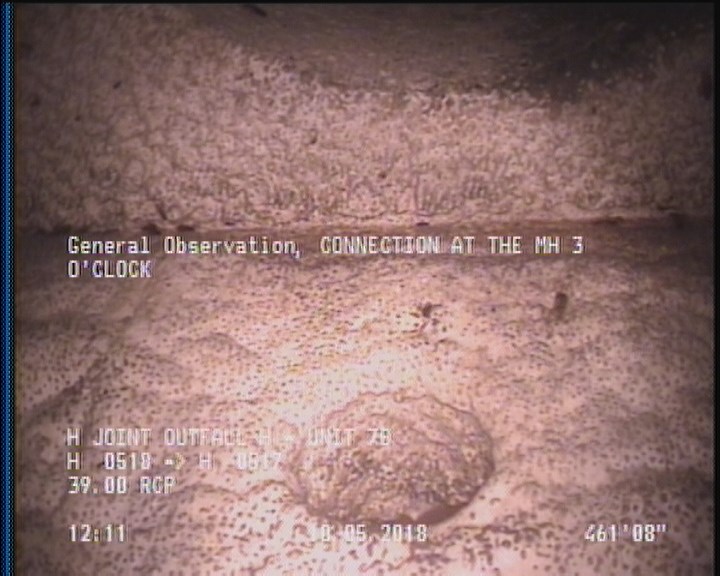

  • General Observation - CONNECTION AT THE MH 3 O'CLOCK

    461.6 ft. - General Observation - CONNECTION AT THE MH 3 O'CLOCK

All inspections of P10943Work order 729980

Observations (12)

DistanceCodeObservation
0AMHH 0518
0MWM—
461.6SAV—
0MWL—
0MGOCOCKROACHES IN MANHOLE
344.7VC—
0MGOCONNECTION AT THE MH 3 O'CLOCK
461.6MGOCOCKROACHES IN MANHOLE
2SAV—
461.6AMHH 0517
2MGOMAG COAT
461.6MGOCONNECTION AT THE MH 3 O'CLOCK
