Wastewater/Activity/PacpInspection/1.0Oct 11, 2018, 02:36 PM
H 0517_H 0516_11102018_074219.mp4
- Date
- 10/11/2018
- W/O
- 729980
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00183
- PipeID
- P10942
- Time
- 7:36 AM
- Certificate
- U-115-06022794
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5914
- Sewer Name
- H JOINT OUTFALL H - UNIT 7B
- City
- CITY OF INDUSTRY
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729980_TV15231_OCT2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 45 in.
- Width
- 45 in.
- Upstream MH
- H 0517
- Downstream MH
- H 0516
- Dir. of Survey
- Downstream
- Length Surveyed
- 235.3 ft.
- Total Length
- 235.3 ft.
- Structural Index
- 3
- Structural Quick
- 3H00
- Structural Rating
- 138
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 138
Observation photos (7)

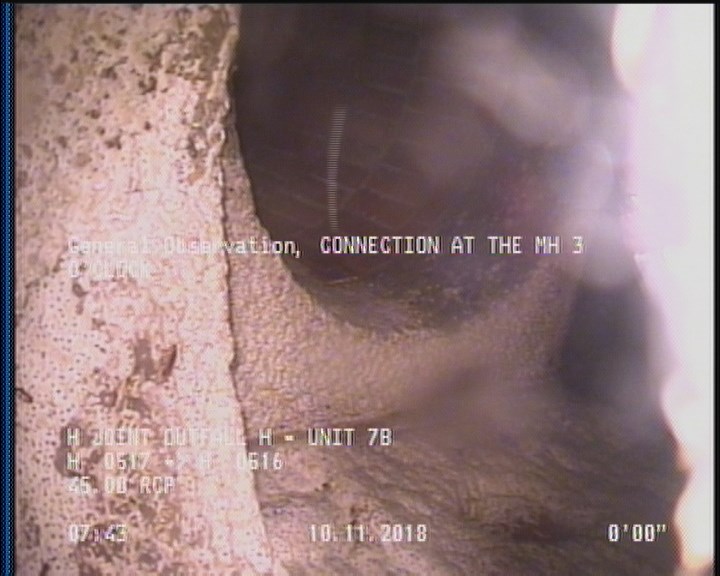

0 ft. - General Observation - CONNECTION AT THE MH 3 O'CLOCK

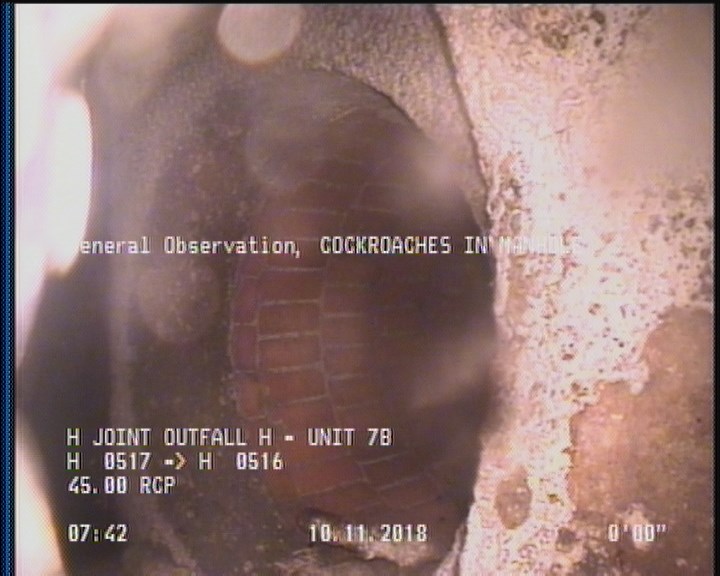

0 ft. - General Observation - COCKROACHES IN MANHOLE

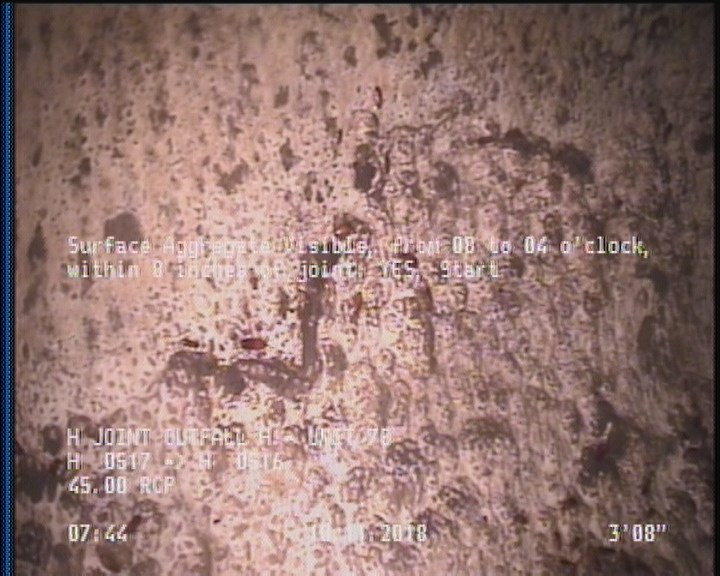

3.7 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

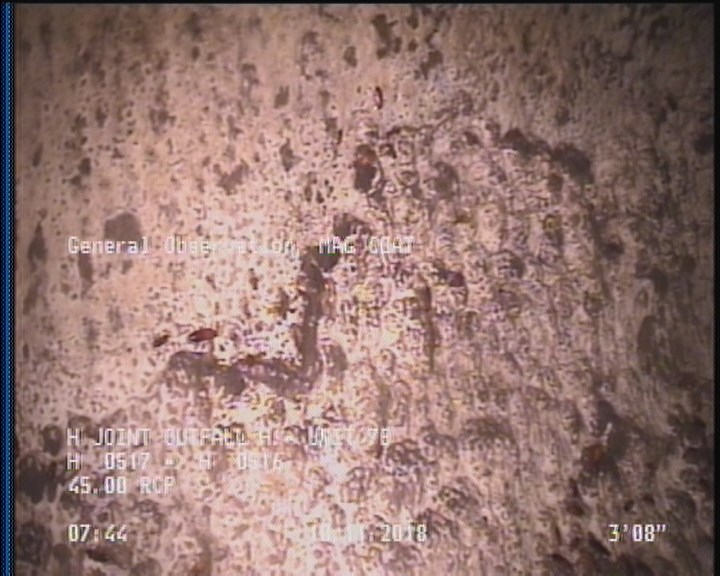

3.7 ft. - General Observation - MAG COAT

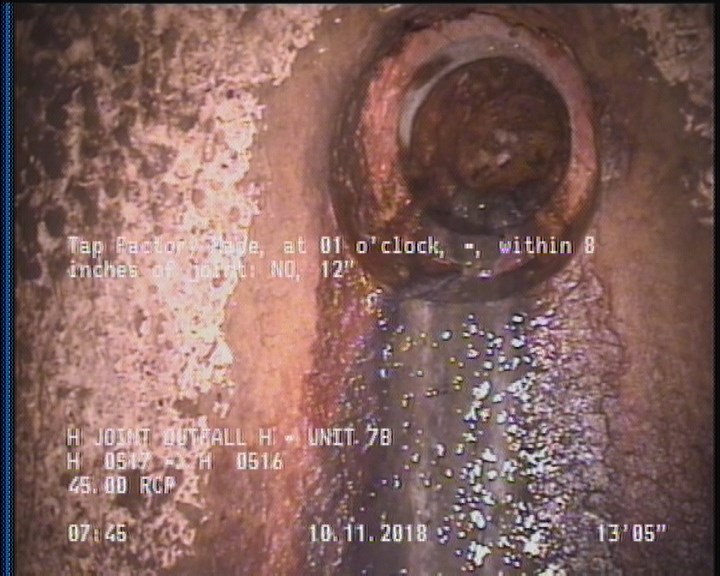

13.4 ft. - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: NO, 12"

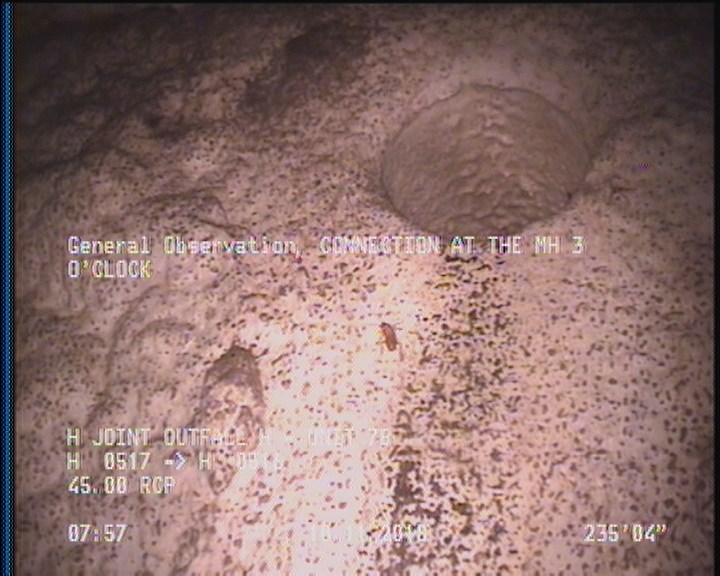

235.3 ft. - General Observation - CONNECTION AT THE MH 3 O'CLOCK

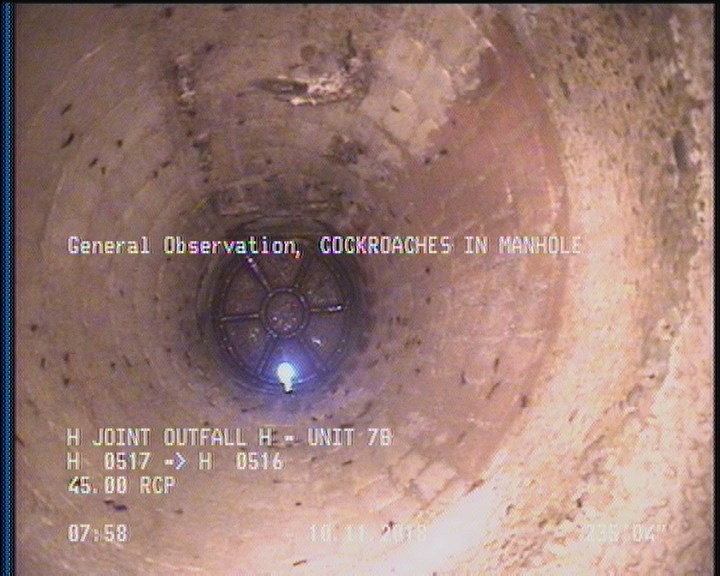

235.3 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 13.4 | TF | — |
| 235.3 | MGO | CONNECTION AT THE MH 3 O'CLOCK |
| 3.7 | SAV | — |
| 0 | MWL | — |
| 0 | AMH | H 0517 |
| 3.7 | MGO | MAG COAT |
| 0 | MGO | CONNECTION AT THE MH 3 O'CLOCK |
| 231.6 | SAV | — |
| 235.3 | MGO | COCKROACHES IN MANHOLE |
| 235.3 | AMH | H 0516 |
| 0 | MGO | COCKROACHES IN MANHOLE |
Properties (2)
- customer
- LACSD
- datetime
- 2018-10-11T07:36:13-07:00
