Wastewater/Activity/PacpInspection/1.0Oct 11, 2018, 06:59 PM
H 0512_H 0511_11102018_115959.mp4
- Date
- 10/11/2018
- W/O
- 729980
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00183
- PipeID
- P10938
- Time
- 11:59 AM
- Certificate
- U-115-06022794
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5914
- Sewer Name
- H JOINT OUTFALL H - UNIT 7B
- City
- CITY OF INDUSTRY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729980_TV15231_OCT2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 45 in.
- Width
- 45 in.
- Upstream MH
- H 0512
- Downstream MH
- H 0511
- Dir. of Survey
- Downstream
- Length Surveyed
- 499.2 ft.
- Total Length
- 499.2 ft.
- Structural Index
- 3
- Structural Quick
- 3S21
- Structural Rating
- 296
- O&M Index
- 1
- O&M Quick
- 1100
- O&M Rating
- 1
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 297
Observation photos (6)

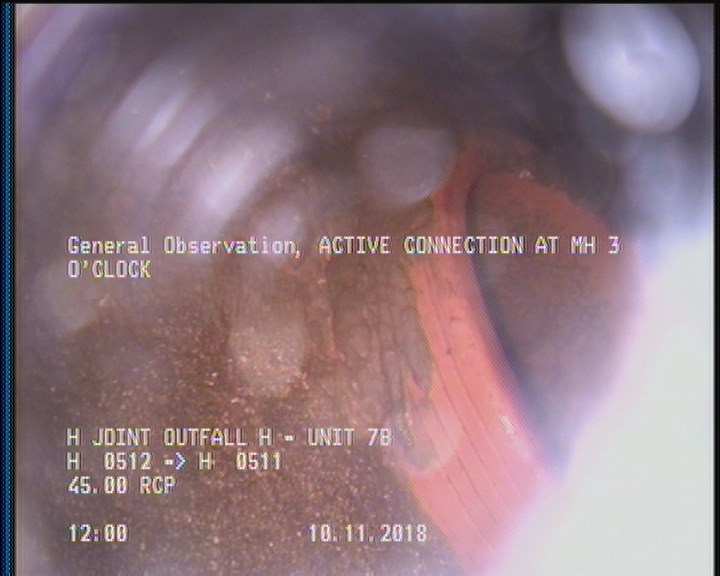

0 ft. - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK

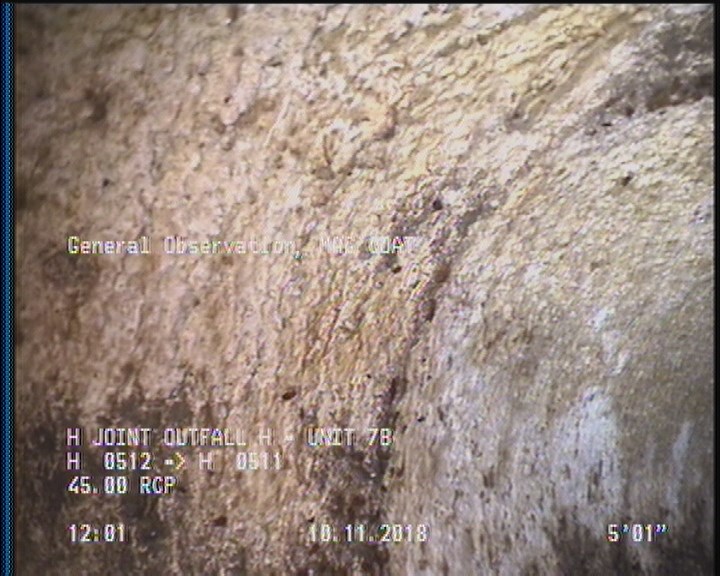

5.1 ft. - General Observation - MAG COAT

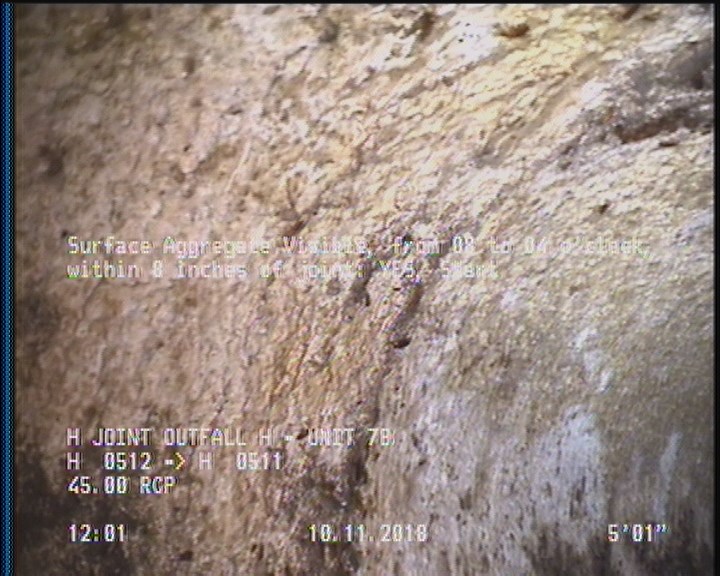

5.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

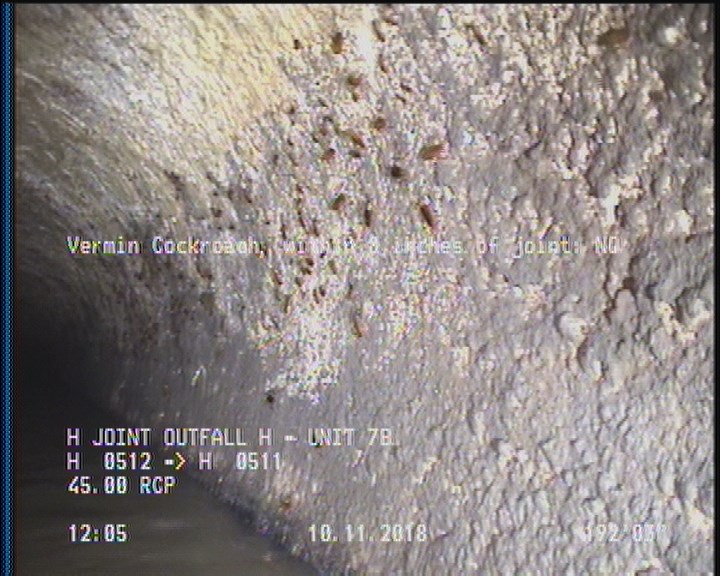

192.2 ft. - Vermin Cockroach, within 8 inches of joint: NO

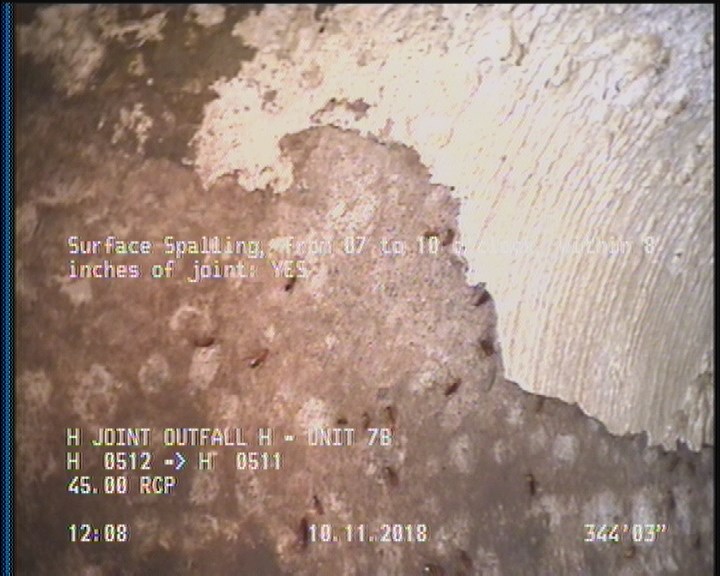

344.2 ft. - Surface Spalling, from 07 to 10 o'clock, within 8 inches of joint: YES

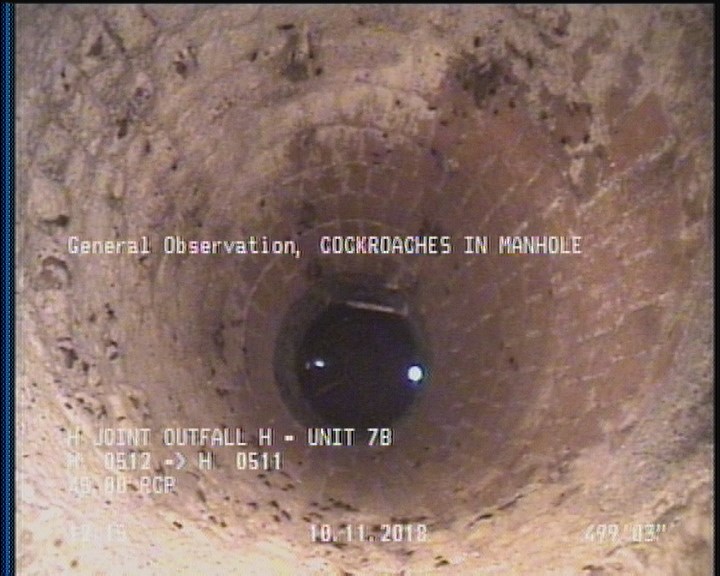

499.2 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 5.1 | MGO | MAG COAT |
| 496.2 | SAV | — |
| 499.2 | MGO | COCKROACHES IN MANHOLE |
| 192.2 | VC | — |
| 0 | AMH | H 0512 |
| 5.1 | SAV | — |
| 344.2 | SSS | — |
| 0 | MWL | — |
| 499.2 | AMH | H 0511 |
| 0 | MWM | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
Properties (3)
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-10-11T11:59:03-07:00
