Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 5, 2018, 06:05 PM

  • H 0519_H 0518_05102018_110718.mp4

Date
10/05/2018
W/O
729980
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00183
PipeID
P10944
Time
11:05 AM
Certificate
U-115-06022794
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5913
Sewer Name
H JOINT OUTFALL H - UNIT 7B
City
CITY OF INDUSTRY
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
35
Purpose
Routine Assessment
Project
RFIR_WO_729980_TV15231_OCT2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
39 in.
Width
39 in.
Upstream MH
H 0519
Downstream MH
H 0518
Dir. of Survey
Downstream
Length Surveyed
489.7 ft.
Total Length
489.7 ft.
Structural Index
4
Structural Quick
5G3J
Structural Rating
367
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
4
Overall Quick
—
Overall Rating
368
Pipe schematic from manhole H 0519 to H 0518
MH: H 0519MH: H 0518downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - H 05195.6 ft. MGO - General Observation - MAG COAT5.6 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start55 ft. VC - Vermin Cockroach, within 8 inches of joint: NO277.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish277.5 ft. SRV - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start484 ft. SRV - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish489.7 ft. AMH - Downstream Manhole, Survey Ends - H 0518489.7 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK489.7 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (8)

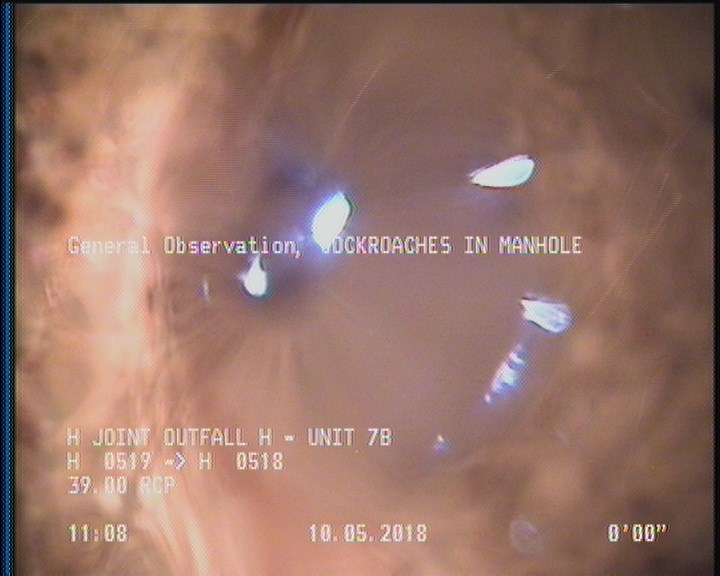

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

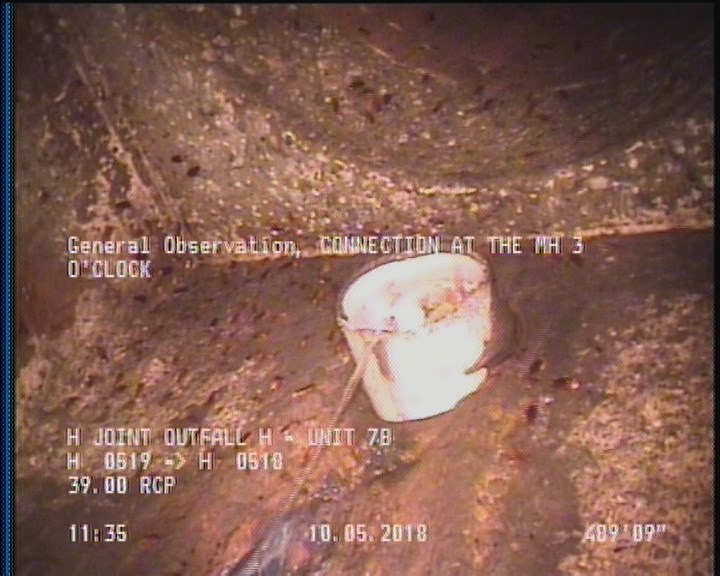

  • General Observation - CONNECTION AT THE MH 3 O'CLOCK

    0 ft. - General Observation - CONNECTION AT THE MH 3 O'CLOCK

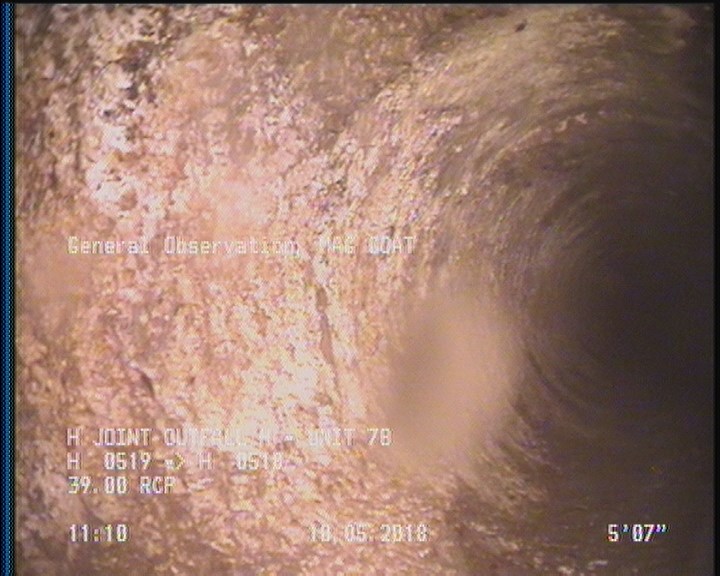

  • General Observation - MAG COAT

    5.6 ft. - General Observation - MAG COAT

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5.6 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

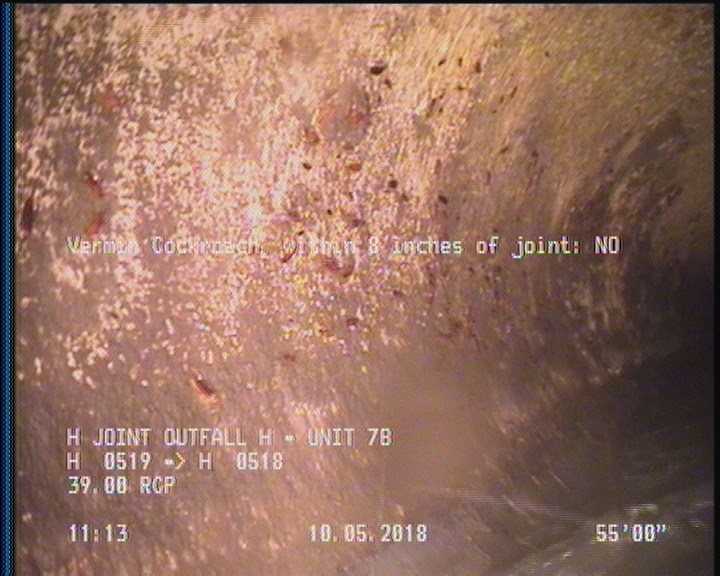

  • Vermin Cockroach, within 8 inches of joint: NO

    55 ft. - Vermin Cockroach, within 8 inches of joint: NO

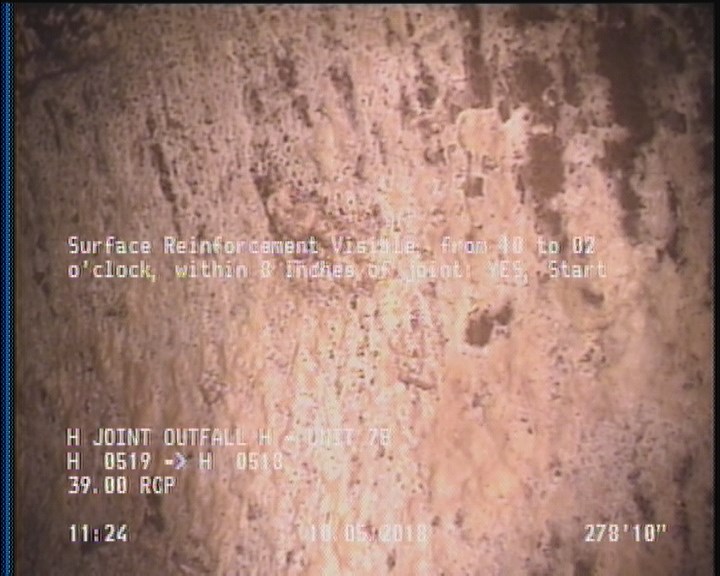

  • Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    277.5 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

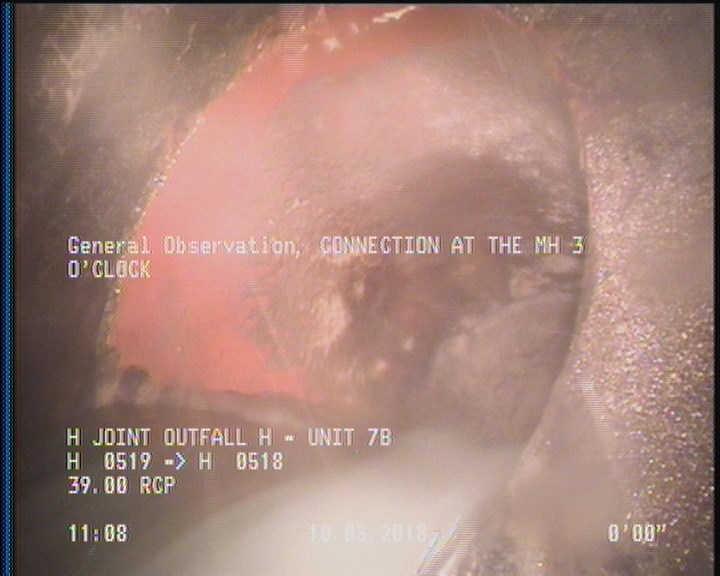

  • General Observation - CONNECTION AT THE MH 3 O'CLOCK

    489.7 ft. - General Observation - CONNECTION AT THE MH 3 O'CLOCK

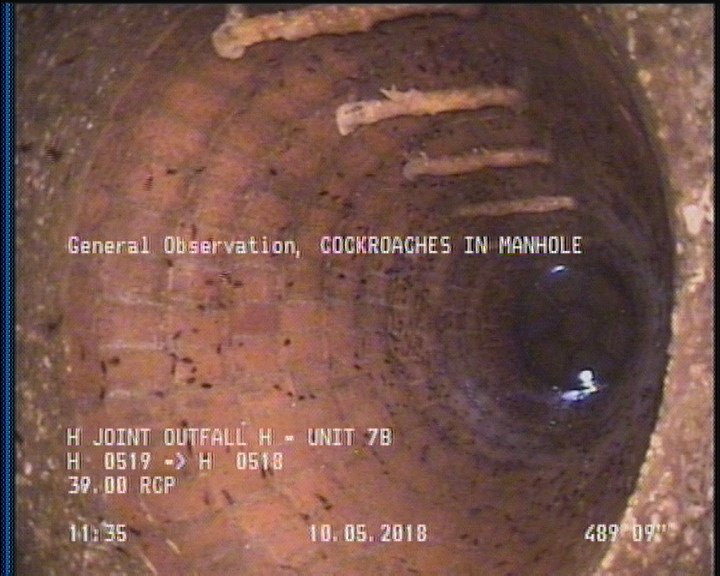

  • General Observation - COCKROACHES IN MANHOLE

    489.7 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P10944Work order 729980

Observations (14)

DistanceCodeObservation
489.7AMHH 0518
55VC—
5.6MGOMAG COAT
0MGOCOCKROACHES IN MANHOLE
277.5SAV—
0MGOCONNECTION AT THE MH 3 O'CLOCK
489.7MGOCONNECTION AT THE MH 3 O'CLOCK
0MWM—
0MWL—
489.7MGOCOCKROACHES IN MANHOLE
0AMHH 0519
484SRV—
277.5SRV—
5.6SAV—

Properties (3)

custom_field_two
2
customer
LACSD
datetime
2018-10-05T11:05:44-07:00
