Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 12, 2018, 03:43 PM

  • H 0511_H 0510_12102018_084416.mp4

Date
10/12/2018
W/O
729980
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00183
PipeID
P10937
Time
8:43 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5915
Sewer Name
H JOINT OUTFALL H - UNIT 7B
City
INDUSTRY
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
35
Purpose
Routine Assessment
Project
RFIR_WO_729980_TV15231_OCT2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
45 in.
Width
45 in.
Upstream MH
H 0511
Downstream MH
H 0510
Dir. of Survey
Downstream
Length Surveyed
472.7 ft.
Total Length
472.7 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole H 0511 to H 0510
MH: H 0511MH: H 0510downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - H 05112 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. MGO - General Observation - MAG COAT44.9 ft. VC - Vermin Cockroach, within 8 inches of joint: NO185.9 ft. MGO - General Observation - UNMAPPED MANHOLE186 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK468.4 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish472.7 ft. MGO - General Observation - COCKROACHES IN MANHOLE472.7 ft. AMH - Downstream Manhole, Survey Ends - H 0510

Observation photos (7)

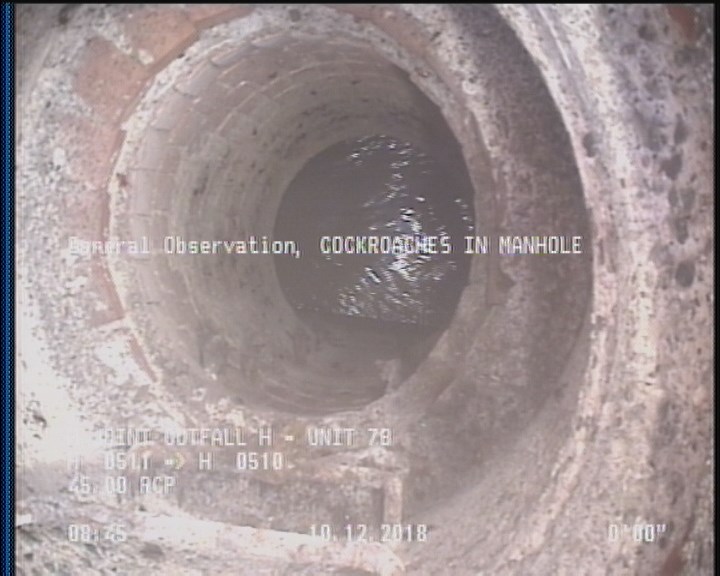

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

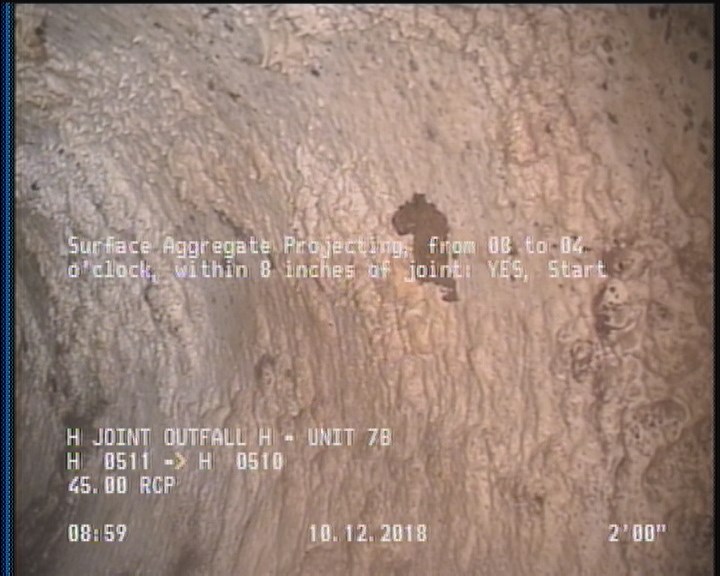

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

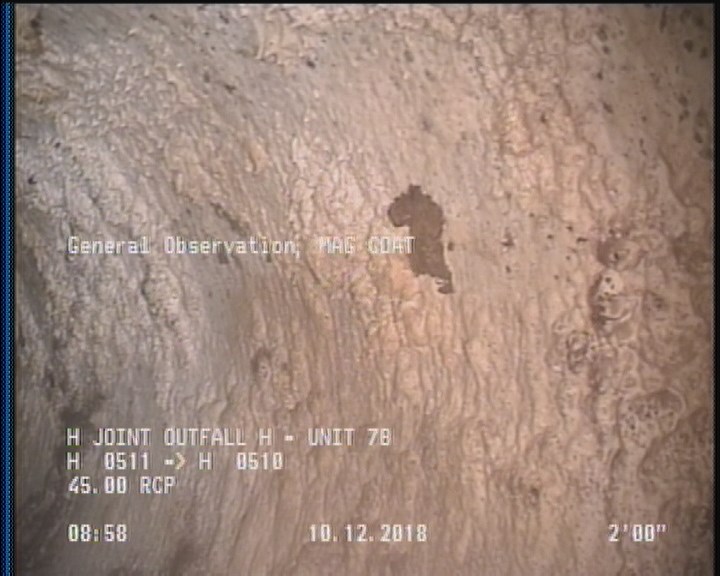

  • General Observation - MAG COAT

    2 ft. - General Observation - MAG COAT

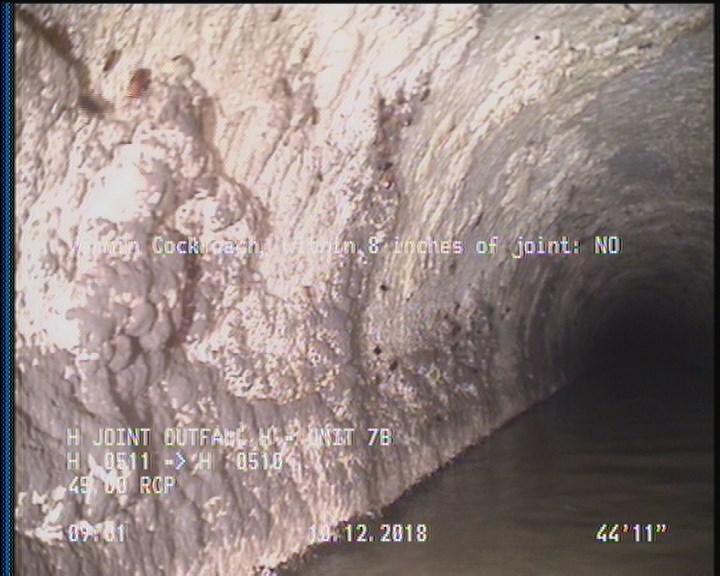

  • Vermin Cockroach, within 8 inches of joint: NO

    44.9 ft. - Vermin Cockroach, within 8 inches of joint: NO

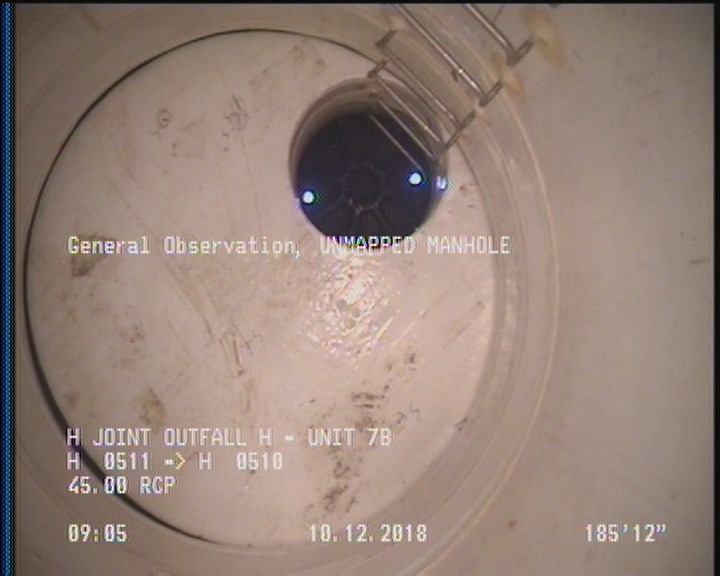

  • General Observation - UNMAPPED MANHOLE

    185.9 ft. - General Observation - UNMAPPED MANHOLE

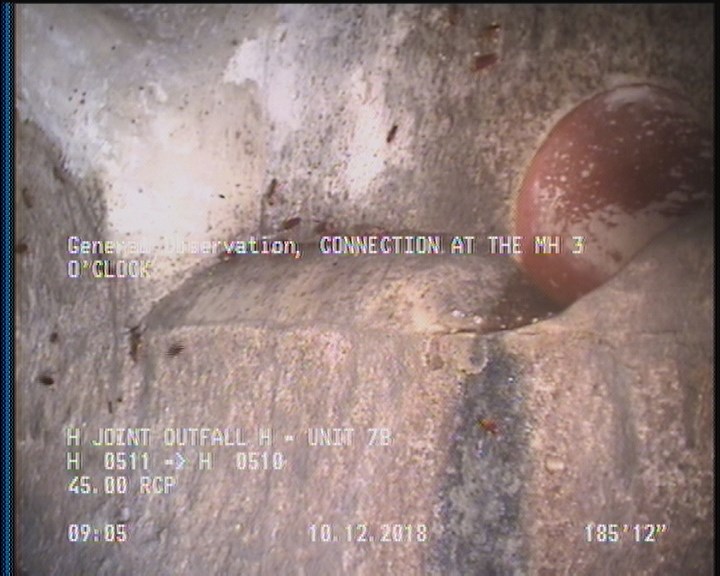

  • General Observation - CONNECTION AT THE MH 3 O'CLOCK

    186 ft. - General Observation - CONNECTION AT THE MH 3 O'CLOCK

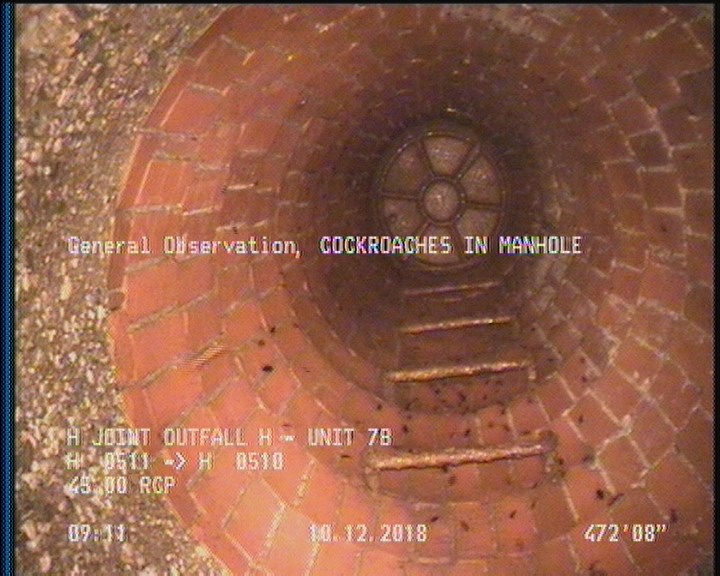

  • General Observation - COCKROACHES IN MANHOLE

    472.7 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P10937Work order 729980

Observations (12)

DistanceCodeObservation
2SAP—
186MGOCONNECTION AT THE MH 3 O'CLOCK
472.7MGOCOCKROACHES IN MANHOLE
0MWL—
0MWM—
468.4SAP—
0MGOCOCKROACHES IN MANHOLE
185.9MGOUNMAPPED MANHOLE
472.7AMHH 0510
44.9VC—
2MGOMAG COAT
0AMHH 0511

Properties (4)

additional_info
SC365115
custom_field_two
2
customer
LACSD
datetime
2018-10-12T08:43:23-07:00
