Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 1, 2018, 08:46 AM

  • H 0631_H 0630 _10012018_020053.mp4

Date
10/01/2018
W/O
729980
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00183
PipeID
P21385
Time
1:46 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6052
Sewer Name
H JOINT OUTFALL H - UNIT 7B
City
CITY OF INDUSTRY
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
38
Purpose
Routine Assessment
Project
RFIR_WO_729980_TV15231_OCT2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Width
48 in.
Upstream MH
H 0631
Downstream MH
H 0630
Dir. of Survey
Downstream
Length Surveyed
199.9 ft.
Total Length
199.9 ft.
Structural Index
3
Structural Quick
3G2G
Structural Rating
195
O&M Index
2
O&M Quick
412G
O&M Rating
82
Overall Index
2
Overall Quick
—
Overall Rating
277
Pipe schematic from manhole H 0631 to H 0630
MH: H 0631MH: H 0630downstream0 ft. AMH - Upstream Manhole, Survey Begins - H 06310 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 50 %of cross sectional area0 ft. MWM - Water Mark, 70 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start126.3 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"195.5 ft. SAP - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish195.5 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish195.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Finish199.9 ft. MGO - General Observation - COCKROACHES IN MANHOLE199.9 ft. AMH - Downstream Manhole, Survey Ends - H 0630

Observation photos (5)

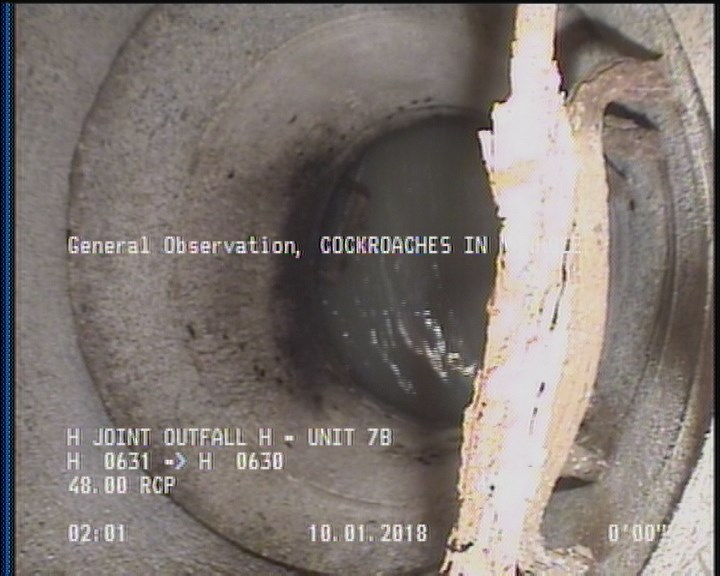

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

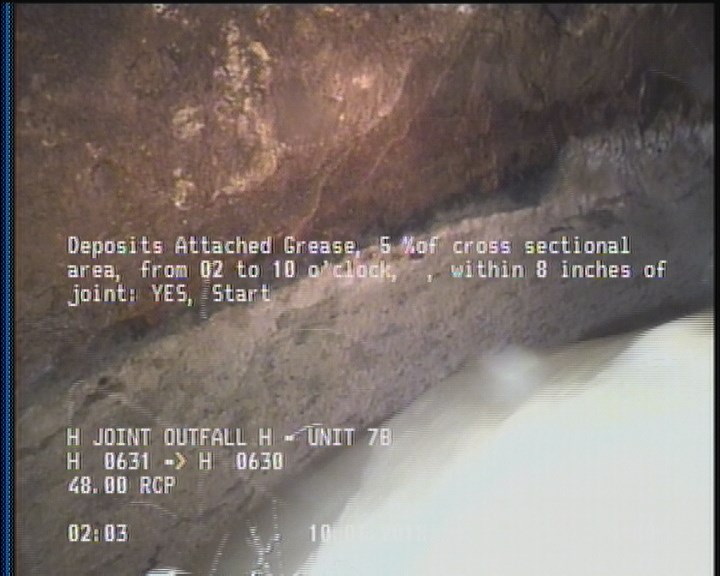

  • Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

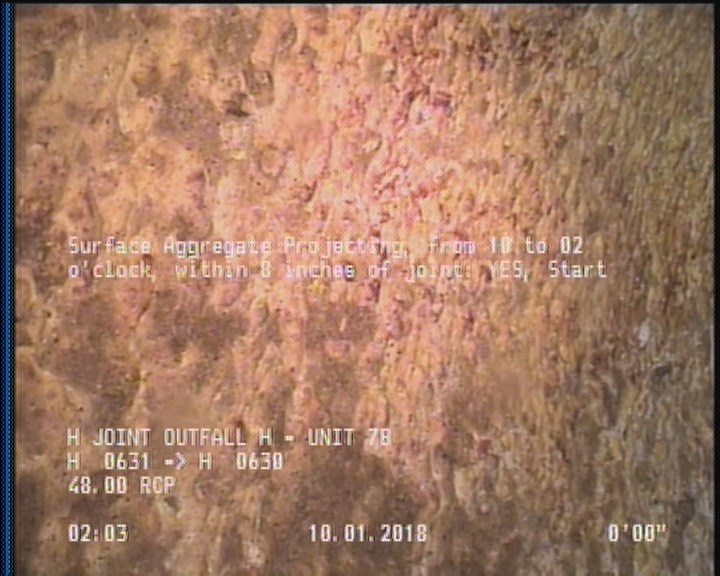

  • Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

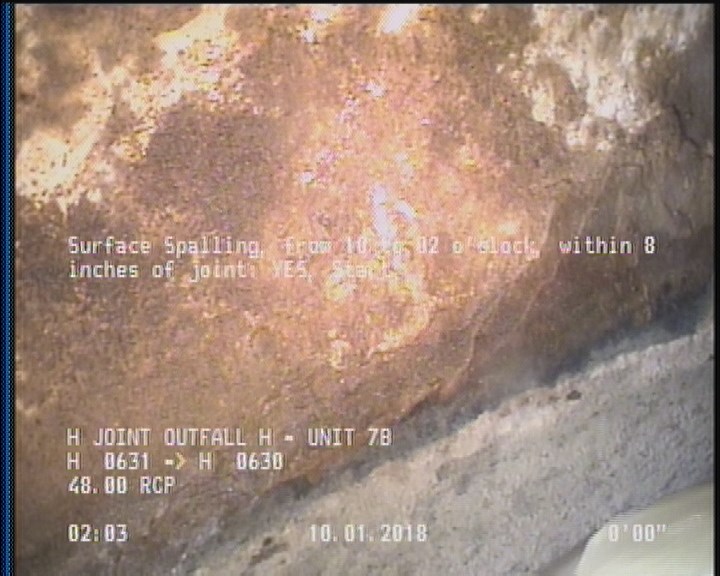

  • Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

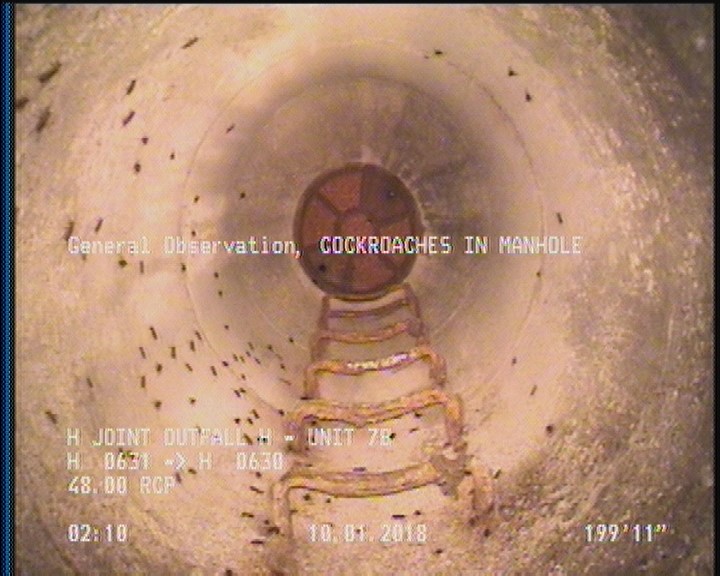

  • General Observation - COCKROACHES IN MANHOLE

    199.9 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P21385Work order 729980

Observations (13)

DistanceCodeObservation
195.5SAP—
0AMHH 0631
195.5SSS—
199.9MGOCOCKROACHES IN MANHOLE
2DAGS—
0MGOCOCKROACHES IN MANHOLE
0MWL—
199.9AMHH 0630
2SAP—
2SSS—
126.3TBA—
0MWM—
195.5DAGS—

Properties (4)

additional_info
SC365115
custom_field_two
2
customer
LACSD
datetime
2018-10-01T01:46:23-07:00
