Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 11, 2018, 03:00 PM

  • H 0516_H 0515_11102018_080200.mp4

Date
10/11/2018
W/O
729980
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00183
PipeID
P10941
Time
8:00 AM
Certificate
U-115-06022794
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5914
Sewer Name
H JOINT OUTFALL H - UNIT 7B
City
CITY OF INDUSTRY
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
35
Purpose
Routine Assessment
Project
RFIR_WO_729980_TV15231_OCT2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
45 in.
Width
45 in.
Upstream MH
H 0516
Downstream MH
H 0515
Dir. of Survey
Downstream
Length Surveyed
234.5 ft.
Total Length
234.5 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
3
O&M Quick
3G11
O&M Rating
115
Overall Index
3
Overall Quick
—
Overall Rating
121
Pipe schematic from manhole H 0516 to H 0515
MH: H 0516MH: H 0515downstream0 ft. AMH - Upstream Manhole, Survey Begins - H 05160 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE2.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES2.5 ft. MGO - General Observation - MAG COAT2.5 ft. VC - Vermin Cockroach, within 8 inches of joint: NO40.9 ft. OBZ - Obstacles Other, 15 %of cross sectional area, from 05 to 07 o'clock, Start - UNKNOWN UNDER FLOW231.9 ft. OBZ - Obstacles Other, 15 %of cross sectional area, from 05 to 07 o'clock, Finish - .231.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES234.2 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK234.5 ft. AMH - Downstream Manhole, Survey Ends - H 0515234.5 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (8)

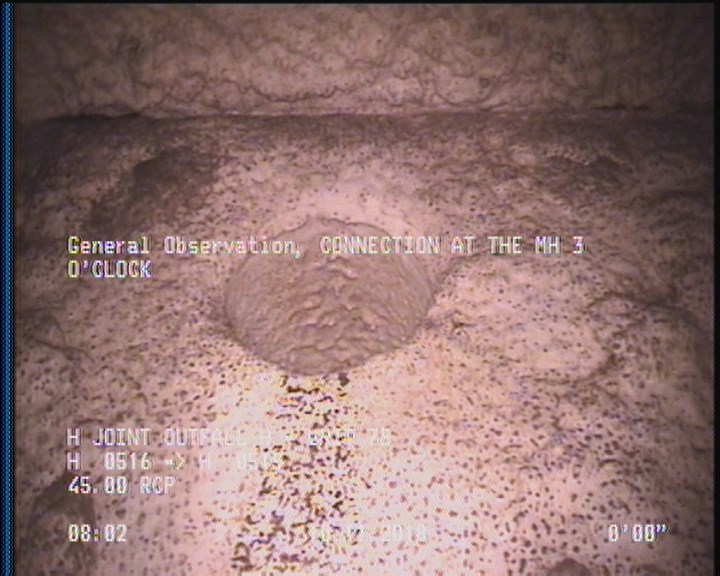

  • General Observation - CONNECTION AT THE MH 3 O'CLOCK

    0 ft. - General Observation - CONNECTION AT THE MH 3 O'CLOCK

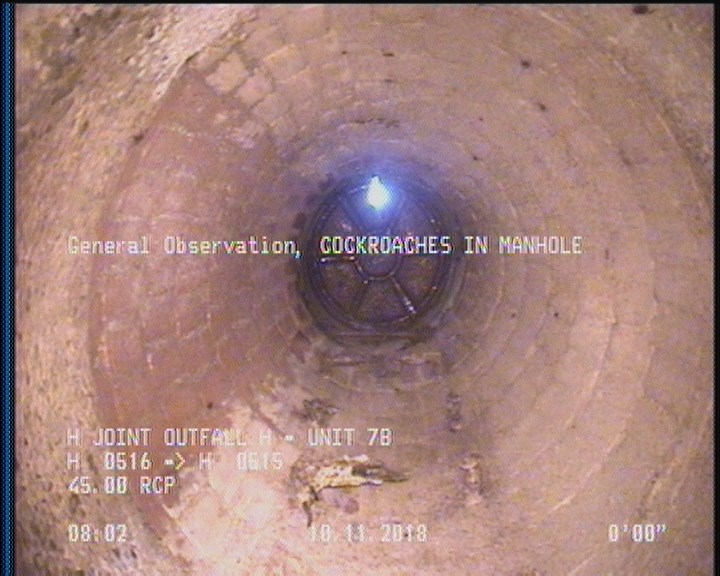

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

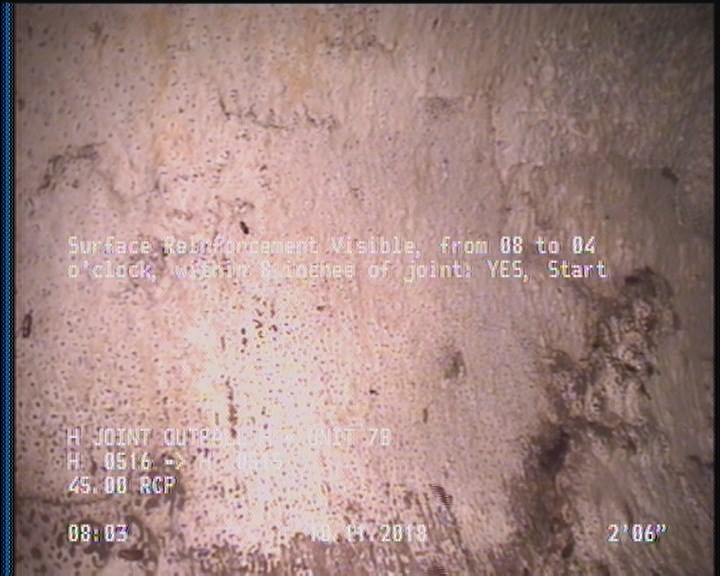

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

    2.5 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

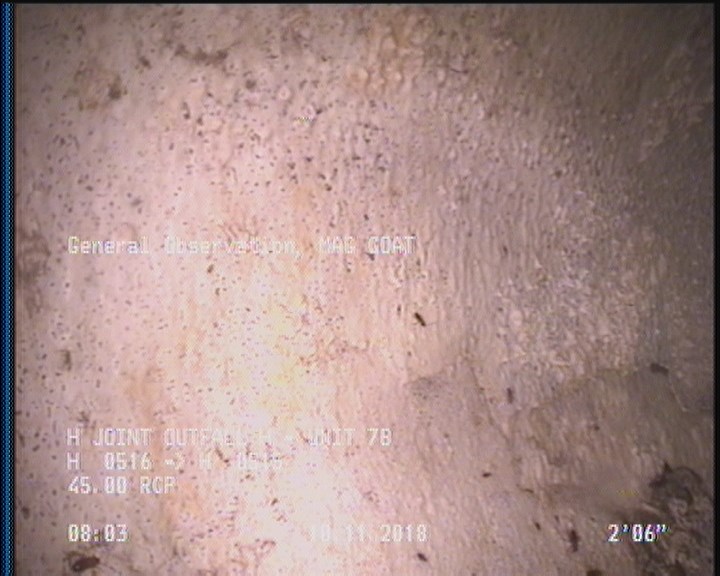

  • General Observation - MAG COAT

    2.5 ft. - General Observation - MAG COAT

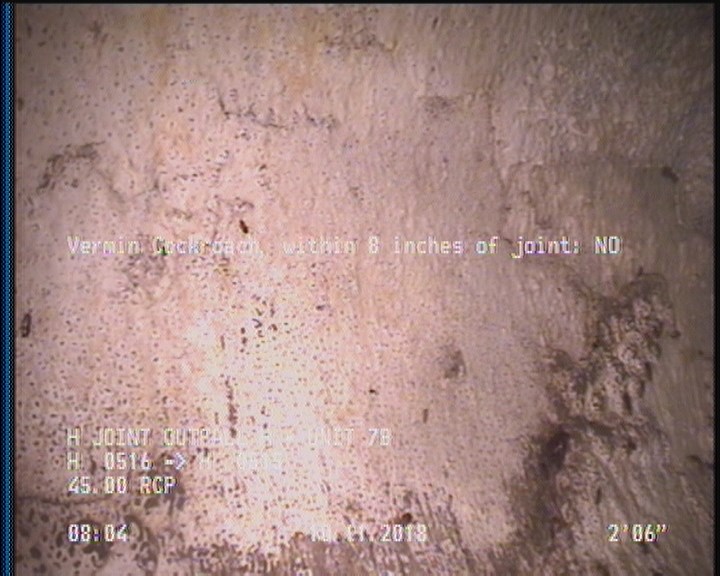

  • Vermin Cockroach, within 8 inches of joint: NO

    2.5 ft. - Vermin Cockroach, within 8 inches of joint: NO

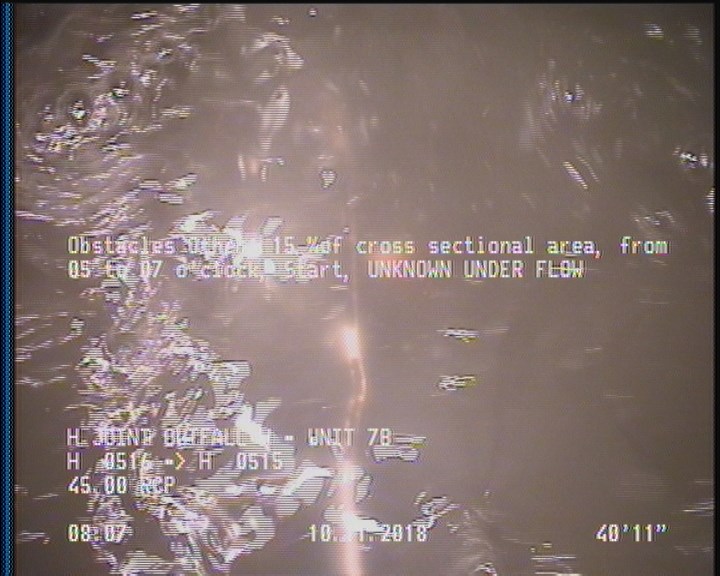

  • Obstacles Other, 15 %of cross sectional area, from 05 to 07 o'clock, Start - UNKNOWN UNDER FLOW

    40.9 ft. - Obstacles Other, 15 %of cross sectional area, from 05 to 07 o'clock, Start - UNKNOWN UNDER FLOW

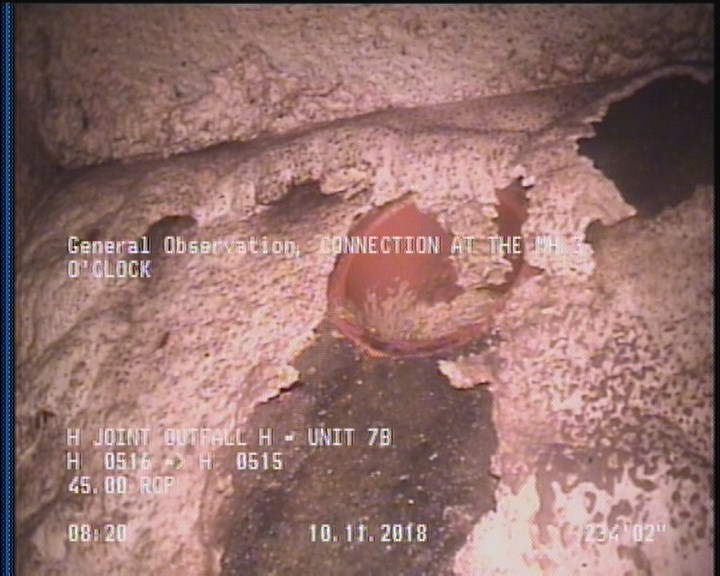

  • General Observation - CONNECTION AT THE MH 3 O'CLOCK

    234.2 ft. - General Observation - CONNECTION AT THE MH 3 O'CLOCK

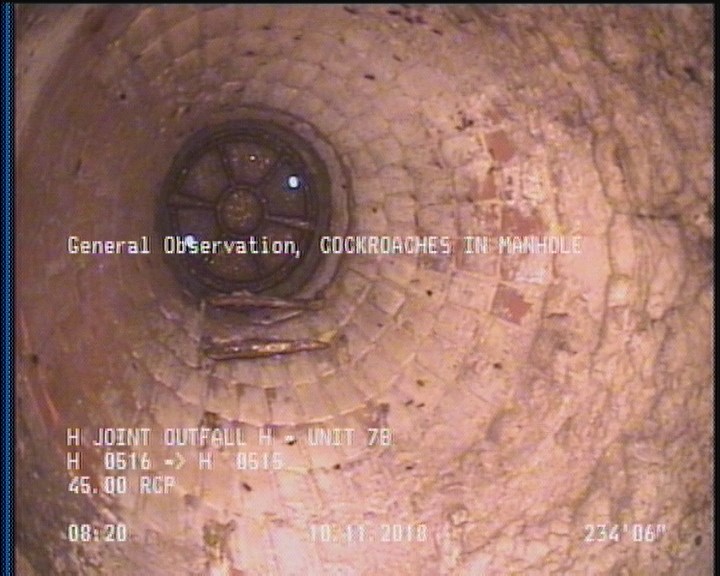

  • General Observation - COCKROACHES IN MANHOLE

    234.5 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P10941Work order 729980

Observations (14)

DistanceCodeObservation
2.5SAV—
2.5MGOMAG COAT
234.5AMHH 0515
231.9OBZ.
0AMHH 0516
231.9SAV—
0MWL—
234.5MGOCOCKROACHES IN MANHOLE
0MGOCONNECTION AT THE MH 3 O'CLOCK
0MWM—
0MGOCOCKROACHES IN MANHOLE
234.2MGOCONNECTION AT THE MH 3 O'CLOCK
2.5VC—
40.9OBZUNKNOWN UNDER FLOW
