Wastewater/Activity/PacpInspection/1.0Oct 1, 2018, 09:25 AM
H 0629_H 0628_10012018_022605.mp4
- Date
- 10/01/2018
- W/O
- 729980
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00183
- PipeID
- P10952
- Time
- 2:25 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6052
- Sewer Name
- H JOINT OUTFALL H - UNIT 7B
- City
- CITY OF INDUSTRY
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 38
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729980_TV15231_OCT2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 39 in.
- Width
- 39 in.
- Upstream MH
- H 0629
- Downstream MH
- H 0628
- Dir. of Survey
- Downstream
- Length Surveyed
- 450.7 ft.
- Total Length
- 450.7 ft.
- Structural Index
- 3
- Structural Quick
- 3Q2Q
- Structural Rating
- 445
- O&M Index
- 2
- O&M Quick
- 2Q00
- O&M Rating
- 178
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 623
Observation photos (4)

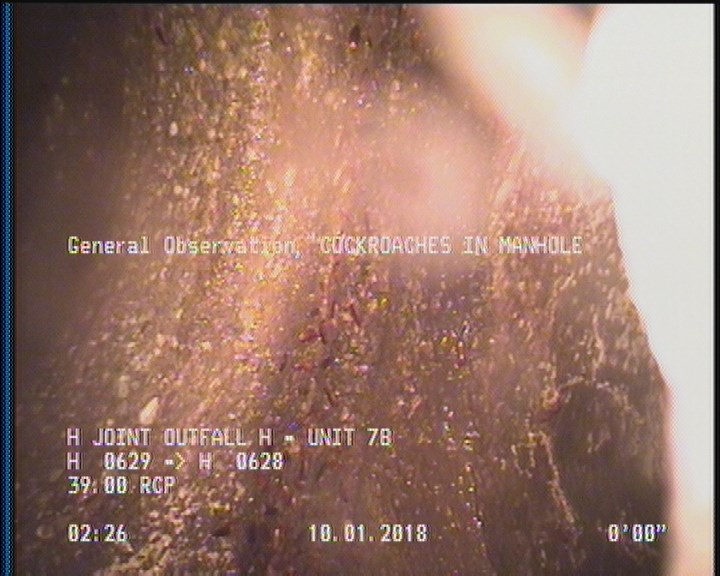

0 ft. - General Observation - COCKROACHES IN MANHOLE

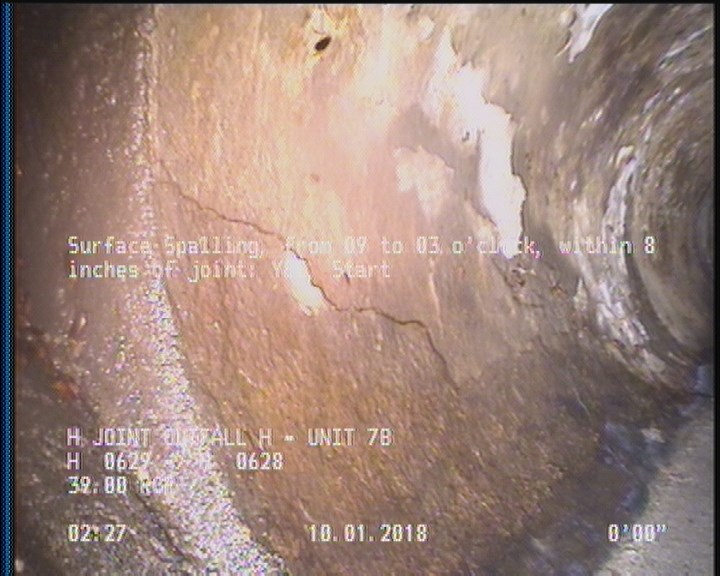

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

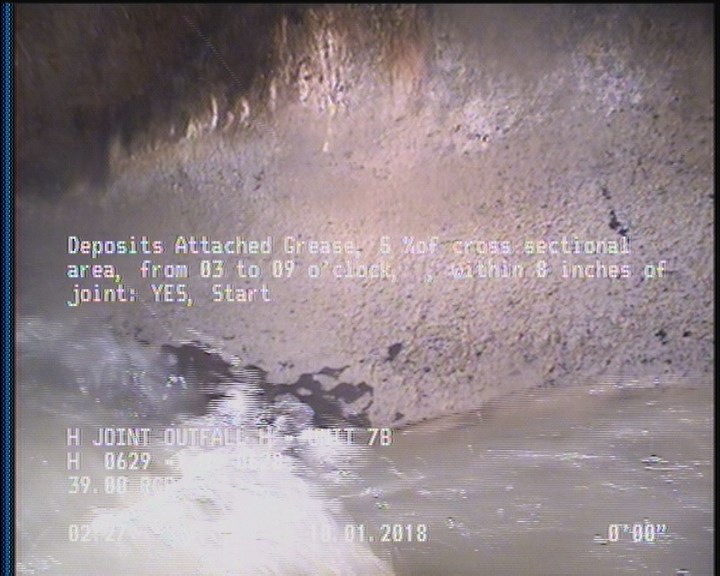

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

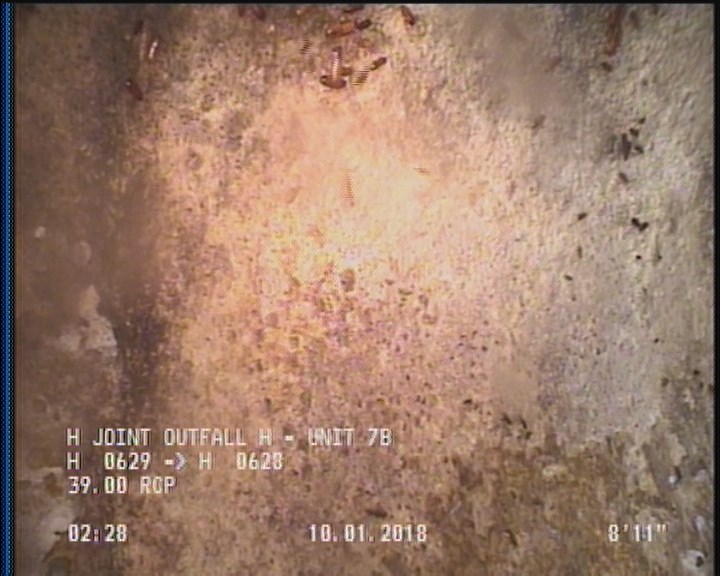

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 2 | SSS | — |
| 447.1 | SAP | — |
| 2 | DAGS | — |
| 447.1 | DAGS | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 83.4 | TB | — |
| 0 | AMH | H 0629 |
| 450.7 | AMH | H 0628 |
| 447.1 | SSS | — |
| 2 | SAP | — |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC365115
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-10-01T02:25:44-07:00
