Wastewater/Activity/PacpInspection/1.0Sep 28, 2018, 10:47 AM
H 0633_H 0632 _09282018_034737.mp4
- Date
- 09/28/2018
- W/O
- 729980
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00183
- PipeID
- P10954
- Time
- 3:47 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6051
- Sewer Name
- H JOINT OUTFALL H - UNIT 7B
- City
- CITY OF INDUSTRY
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 38
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729980_TV15231_OCT2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- H 0633
- Downstream MH
- H 0632
- Dir. of Survey
- Downstream
- Length Surveyed
- 211.7 ft.
- Total Length
- 211.7 ft.
- Structural Index
- 3
- Structural Quick
- 3G2G
- Structural Rating
- 205
- O&M Index
- 2
- O&M Quick
- 412G
- O&M Rating
- 86
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 291
Observation photos (4)

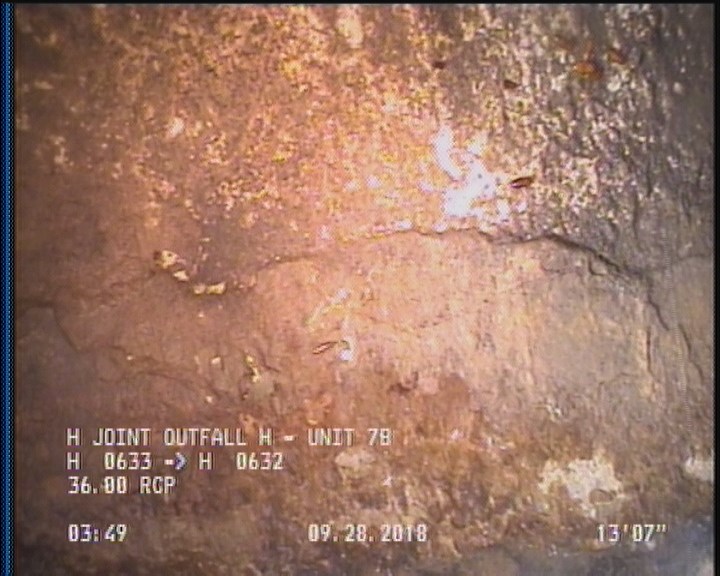

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

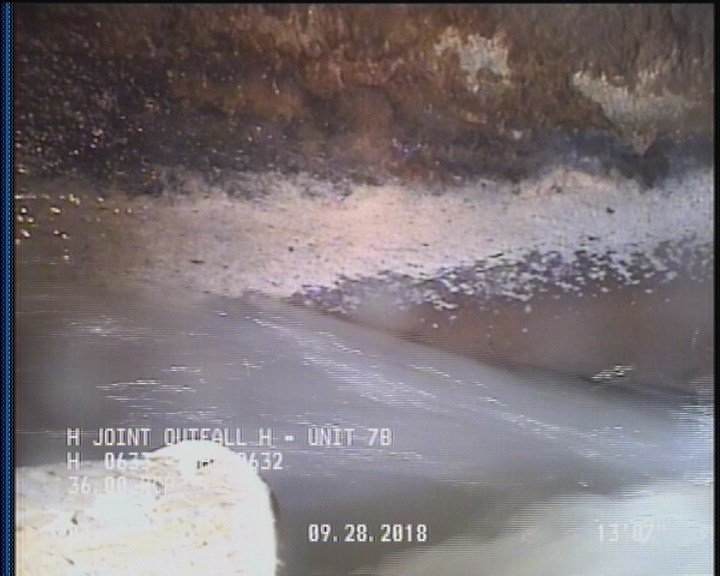

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

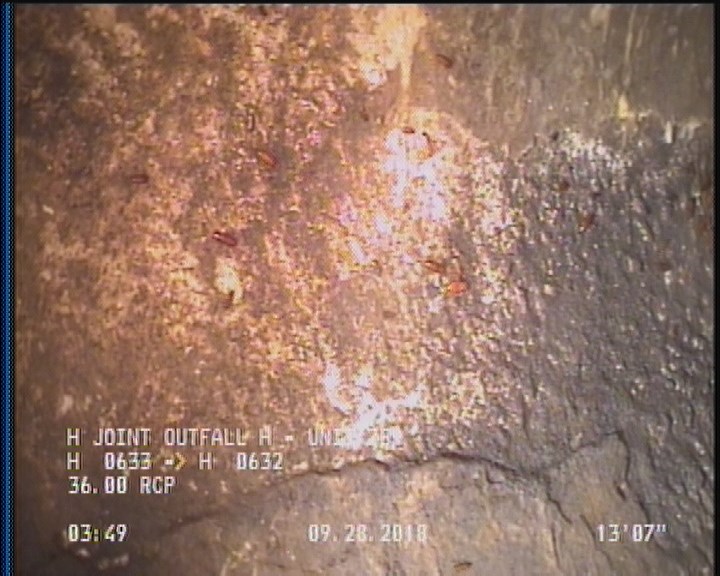

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

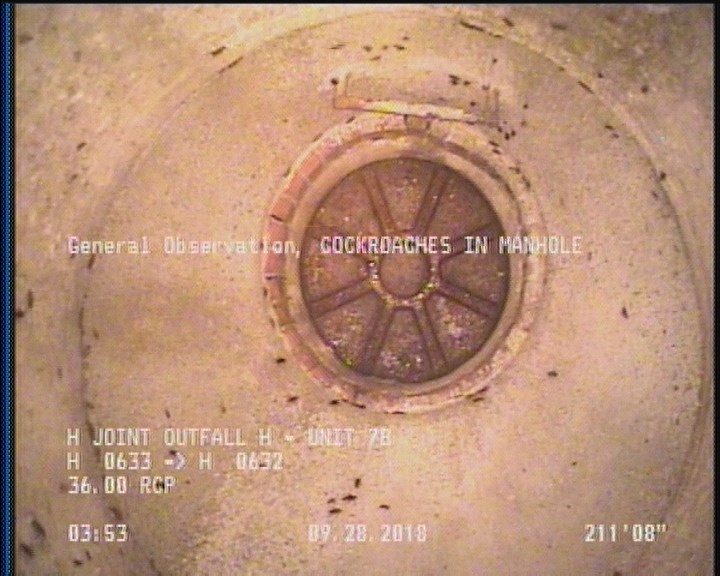

211.7 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 208 | SSS | — |
| 2 | SSS | — |
| 0 | MWM | — |
| 2 | DAGS | — |
| 208 | DAGS | — |
| 0 | AMH | H 0633 |
| 0 | MWL | — |
| 211.7 | AMH | H 0632 |
| 2 | SAP | — |
| 208 | SAP | — |
| 211.7 | MGO | COCKROACHES IN MANHOLE |
Properties (4)
- additional_info
- SC365114
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-09-28T03:47:24-07:00
